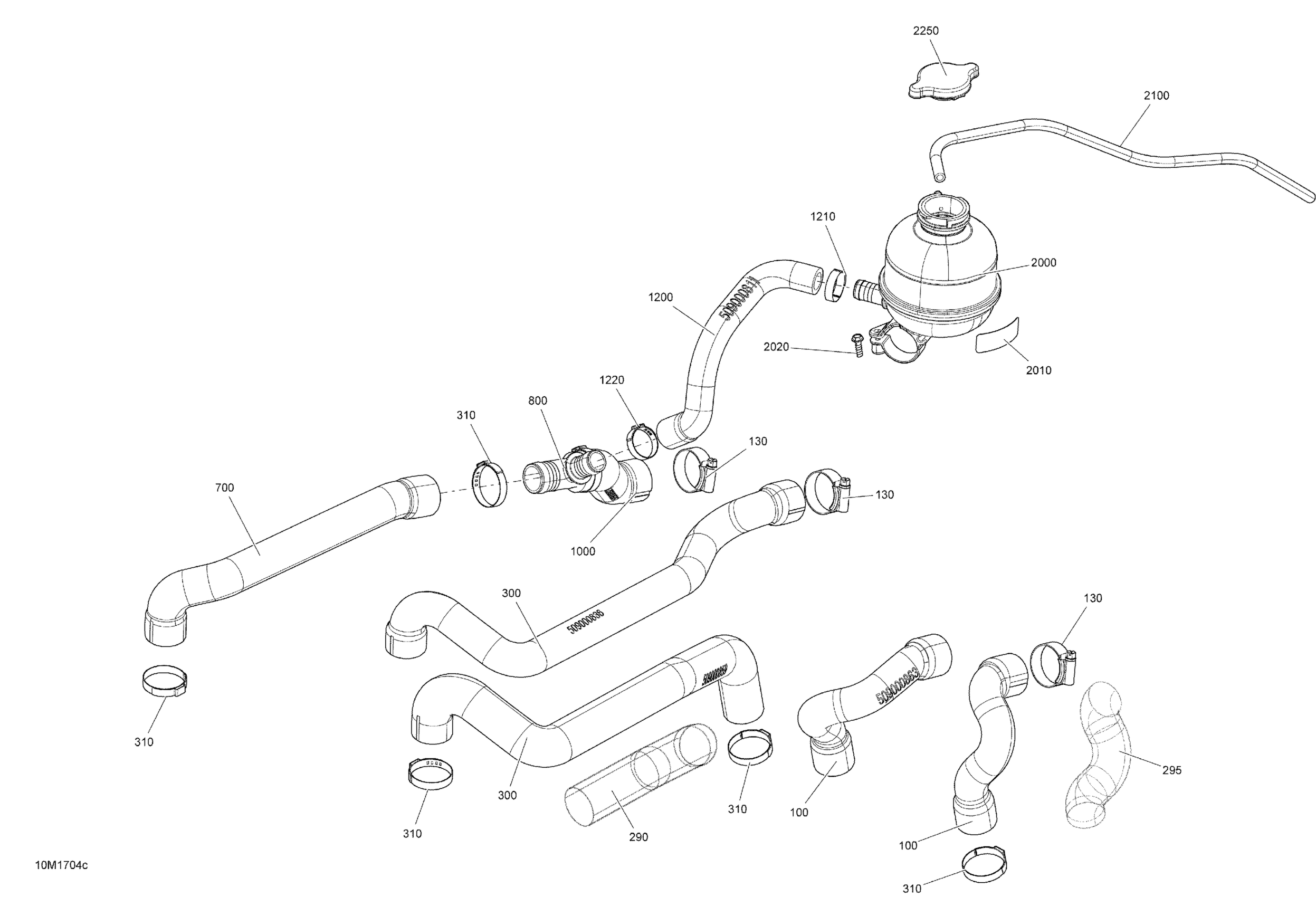

Ski-Doo RENEGADE - 4-STROKE, 2017 Cooling System - 600-900 ACE Diagram

Description

Price

100

Engine Outlet Hose | Engine 900 ACE Except Expedition

509000863

$18.63

130

Aba Gear Clamp, 26-38 MM

509000443

$5.64

290

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

295

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

300

Engine Outlet Hose

509000836

$25.34

300

Radiator Hose

509000859

$34.30

310

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

700

Radiator Return Hose

509001062

$14.10

710

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

800

T-Fitting

509000372

$9.03

1000

Engine Inlet Hose | Engine 900 ACE

509000864

$13.18

1000

Radiator Hose

509000921

$12.34

1010

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

1020

Aba Gear Clamp, 26-38 MM

509000443

$5.64

1200

Filling Hose

509001063

$13.18

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1220

Crimp Clamp

293650099

$4.07

2000

Cooling Tank

509000881

$84.30

2010

Warning Decal

516005904

Unavailable

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

2100

Hose

509000775

$9.57

2250

Radiator Pressure Cap

509000180

$13.42
