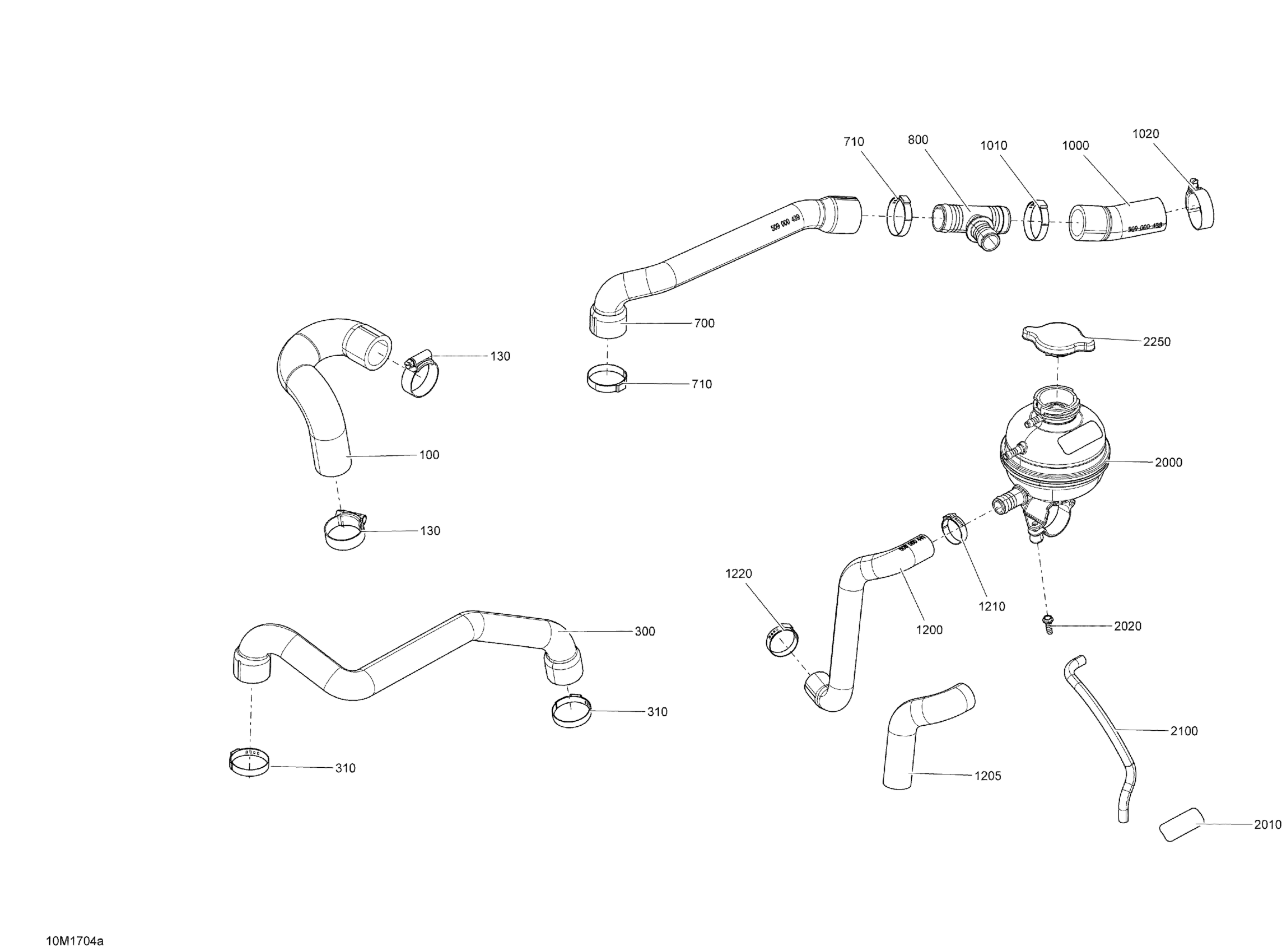

Ski-Doo RENEGADE - 4-STROKE, 2017 Cooling System - 1200 4-TEC Package Enduro Diagram

#

Description
Price

100

Outlet Hose

509000440

$17.88

130

Aba Gear Clamp, 26-38 MM

509000443

$5.64

300

RADIATOR HOSE - Call your local BRP dealership

509000370

Unavailable

310

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

320

T-Fitting

509000510

$11.18

700

Radiator Hose

509000439

Unavailable

710

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

800

T-Fitting

509000372

$9.03

1000

Radiator Hose

509000438

$17.88

1010

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

1020

Aba Gear Clamp, 26-38 MM

509000443

$5.64

1200

Hose

509000441

$23.85

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1220

Crimp Clamp

293650099

$4.07

2000

-Coolant Tank

509000937

$84.30

2010

Warning Decal

516005904

Unavailable

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

2100

Hose 6 Mm 15000Mm Long

219704360

$120.12

2250

Radiator Pressure Cap

509000180

$13.42

2500

WATER PIPE - Call your local BRP dealership

509000938

Unavailable

2510

Torx Screw M6 X 16

250000365

$2.00

2515

Socket Screw M10 X 16

205501644

$3.88

2520

Tie-Rap 180 mm

414115200

$0.10

2530

Tie-Rap 180 mm

414115200

$0.10

3000

RADIATOR HOSE - Call your local BRP dealership

509000941

Unavailable

3005

Radiator Hose

509000944

$18.63

3006

Gear Clamp

509000162

$4.90

3010

Crimp Clamp

293650099

$4.07

3100

RADIATOR HOSE - Call your local BRP dealership

509000942

Unavailable

3110

Crimp Clamp

293650099

$4.07

3120

Aba Gear Clamp, 26-38 MM

509000443

$5.64

3290

Tie-Rap 180 mm

414115200

$0.10

3300

Fan

709200573

$234.30

3310

Fan Support

509000714

$47.73

3320

Hex. Flange Screw M6 X 20

207662044

$1.91

3330

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3340

Air Inlet Deflector

509000835

$91.76

3350

Radiator

509000488

$320.87

3360

Support

509000933

$36.54

3365

Hex. Flange Screw M6 X 16

207661644

$0.70

3370

Support

509000934

$36.54

3375

Avex Rivet

390909100

$0.28

3380

Grommet

709000582

$4.25

3390

Bushing

293900100

$6.12

3395

Hex. Flange Screw M6 X 25

207562544

$1.60

3400

BREATHER HOSE - Call your local BRP dealership

509000940

Unavailable

3405

Crimp Clamp, 15.3-706R

293650047

$3.03

3408

Oetiker Clamp

293650125

$3.09

3409

Check Valve

509000153

$16.39

3410

Tie Wrap 142 mm

293750002

$1.01

3415

Oetiker Clamp

293650125

$3.09

3420

Hose-formed

509001069

$13.18

3425

Tubing 16 Mm 1000Mm Long

219704408

$7.15

3430

Y-Fitting

293710140

$7.09

3440

Hose

509001070

$11.18

3450

Oetiker Clamp

293650046

$2.67

4000

Mount Dart

293730040

$0.99

4010

Tie-Rap 180 mm

414115200

$0.10

4050

Flat Washer

250200082

$0.40
