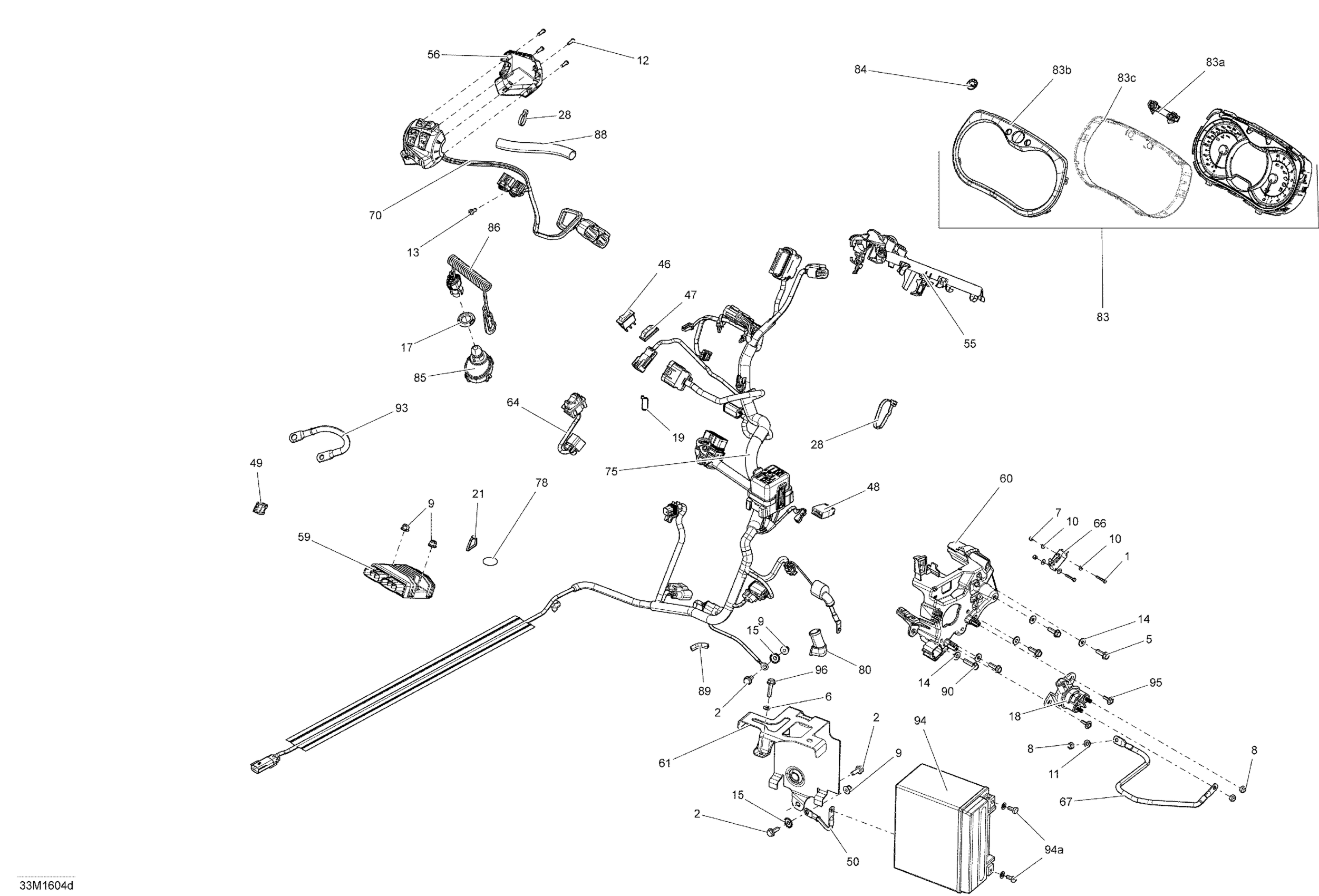

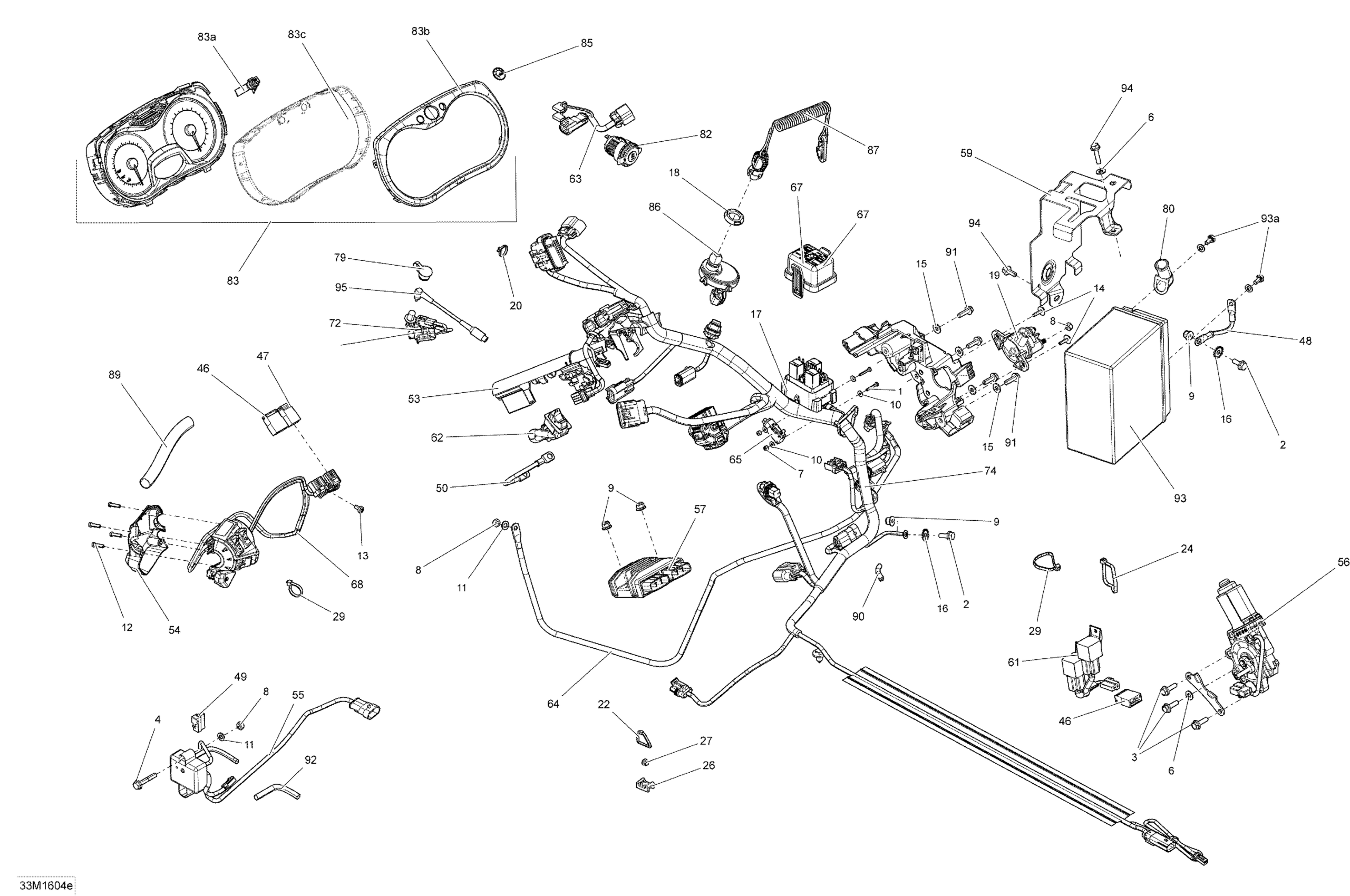

Ski-Doo RENEGADE - 4-STROKE, 2016 Electrical System - 900 ACE, Package ADR-Enduro Diagram

#

Description
Price

1

Hex Screw M3 X 20

207132044

$2.06

2

Hex. Flange Screw M6 X 16

207661644

$0.61

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Screw M6 X 35

207663544

$0.74

5

Hex. Flange Screw M6 X 20

210262040

$2.06

5

Hex. Flange Screw M6 X 20

210262040

$2.06

6

Flat Washer

224061121

$0.44

6

Flat Washer

224061121

$0.44

7

Elastic Stop Nut M3

232531423

$0.54

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Flat Washer M3, Stainless

234032600

$0.54

11

Flat Washer 6 mm

234061410

$1.04

11

Flat Washer 6 mm

234061410

$1.04

12

Torx Screw

250000671

$0.83

13

Pan Screw Forming, 7500C

250000690

$2.06

14

Screw M4 X 16

250000725

$2.87

15

Flat Washer

250200039

$0.72

16

Lock Washer Serrated M6

250200041

$0.92

17

Case Ass'y with seal, 24 positions

278002824

$29.22

18

Safety Nut (DESS Switch)

278002963

$2.72

19

Starter Relay

278003012

$35.07

20

Tie Wrap 94 mm | 4X4

293750001

$0.83

22

Tie Wrap 142 mm

293750002

$0.88

23

Tie Wrap 368 mm

293750008

$0.85

26

Tie Rap Mount (screwable)

515176795

$5.11

27

Avex Rivet

390909200

$0.29

28

Female Housing, 5 Circuits

409209900

$8.98

29

Tie-Rap 180 mm

414115200

$0.09

46

Male Terminal Housing, 6 Circuits

515175662

$8.57

46

Male Terminal Housing, 6 Circuits

515175662

$8.57

47

Male Terminal Housing, 4 Circuits

515175846

$8.57

48

Ground Wire

515176358

$26.12

49

Female Terminal Housing

515176550

$6.43

50

Ground Wire

515177014

$15.35

51

PLATE - Call your local BRP dealership

515177039

Unavailable

52

Relay | DS 650 X

710010053

Unavailable

53

Connector Plate

515177134

$14.02

54

Housing Plate

515177147

$17.66

55

Compressor Module

515177234

$414.99

56

Electrical Motor Ass'y

515178574

$245.35

57

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

58

Plate

515177347

$13.82

59

Battery Support

515177348

$29.97

61

Reverse Harness | Reverse Harness

515177350

$58.43

62

Switch

515177394

$75.35

63

12 Volts Outlet Harness

515177400

$32.28

64

Battery Wire

515177427

$29.20

65

Switch Ass'y

515177460

$47.99

67

Fuse Box Cover

515177671

$10.88

68

LH Housing

515178198

$266.89

68

LH Switch Housing

515178197

$259.20

72

Visor Harness

515177837

$32.28

73

Rivet

515177929

$2.12

74

Main Harness | EXPEDITION

515177988

$422.28

74

Main Harness | Includes 3000 to 3000c

515177990

$422.28

78

Adhesive Patch

518325560

$4.34

79

Cap

572103300

$9.65

80

Protector Cap

710000495

$10.14

81

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

82

DC Outlet

710001248

$31.17

83

Indicator

515177912

$516.89

83

Indicator | Except Package SWT

515177913

$535.35

83a

Speedometer Button | XTP

415129355

$13.94

83b

Gauge Ring

415129348

$11.71

83b

Gauge Ring

415129370

$10.66

83c

Lens | XTP

415129349

$23.05

85

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

86

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

87

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

87

Key

860201162

$69.20

89

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

90

Trim 1000Mm Long

219704354

$14.74

91

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

92

Tubing 6 Mm 3000Mm Long

219704425

$13.14

93

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

94

Hex. Flange Screw M6 X 25

250000793

$1.74

95

Extension

515175851

$10.88

93a

Battery Bolt Kit

250000282

$2.95
