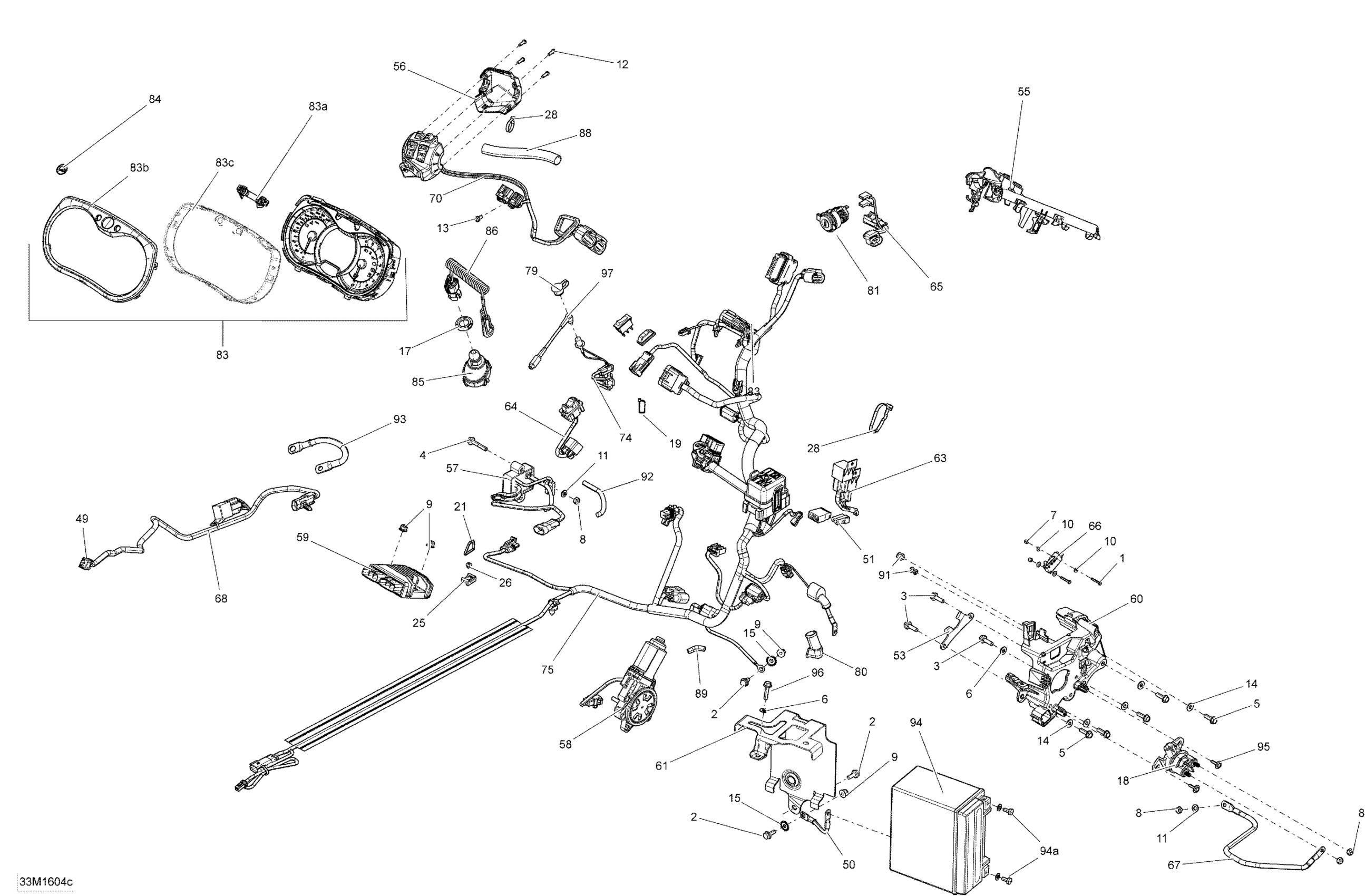

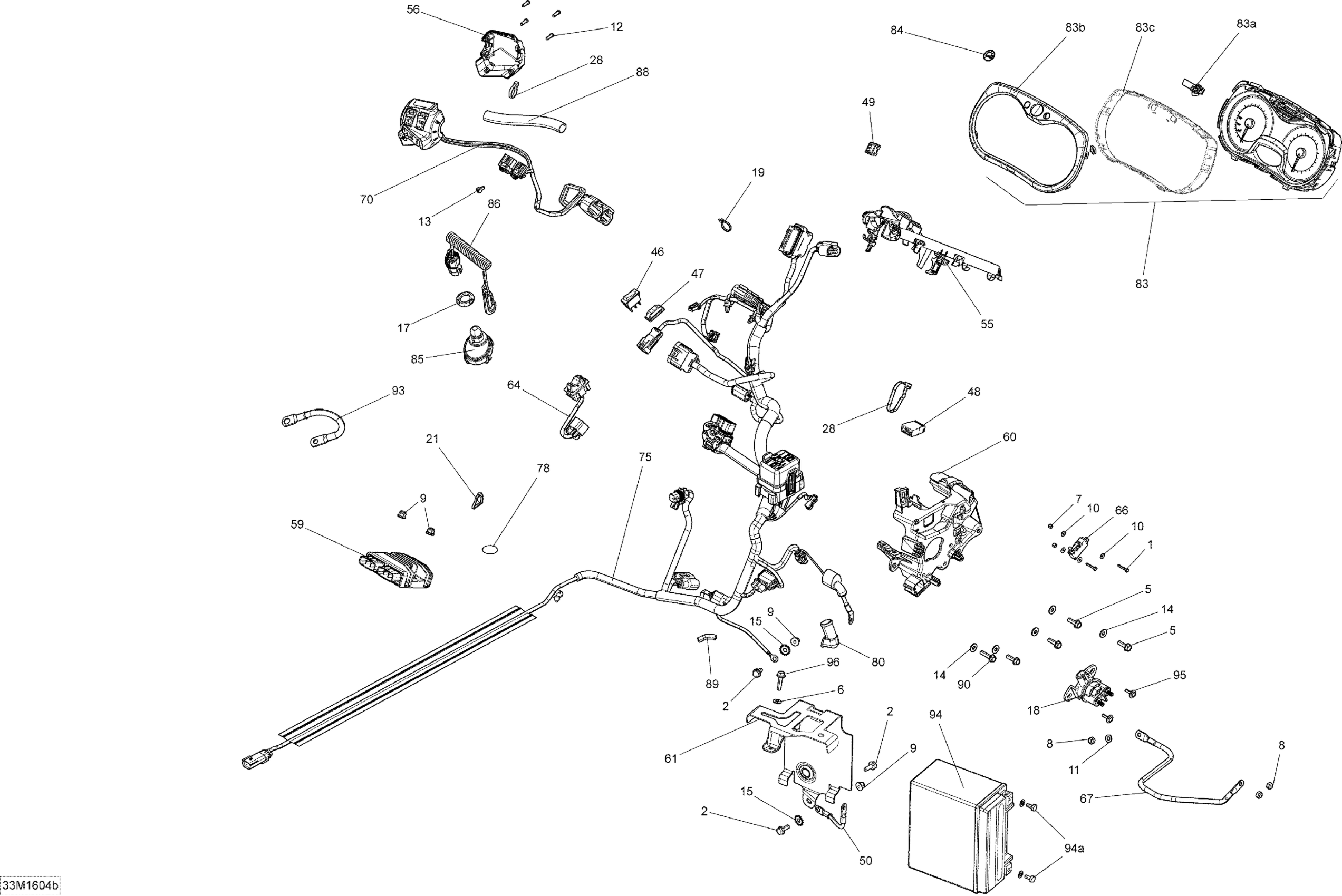

Ski-Doo RENEGADE - 4-STROKE, 2016 Electrical System - 1200 4-TEC, Package Enduro Diagram

#

Description
Price

1

Hex Screw M3 X 20

207132044

$2.00

2

Hex. Flange Screw M6 X 16

207661644

$0.70

3

Hex. Flange Screw M6 X 20

207662044

$1.91

4

Hex. Flange Screw M6 X 35

207663544

$0.85

5

Hex. Flange Screw M6 X 20

210262040

$2.00

6

Flat Washer

224061121

$0.51

7

Elastic Stop Nut M3

232531423

$0.52

8

Elastic Stop Nut M6

232561434

$1.78

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

10

Flat Washer M3, Stainless

234032600

$0.52

11

Flat Washer 6 mm

234061410

$1.19

12

Torx Screw

250000671

$0.96

13

Pan Screw Forming, 7500C

250000690

$2.00

14

Flat Washer

250200039

$0.70

15

Lock Washer Serrated M6

250200041

$1.06

17

Safety Nut (DESS Switch)

278002963

$3.12

18

Starter Relay

278003012

$40.27

19

Tie Wrap 94 mm | 4X4

293750001

$0.96

21

Tie Wrap 142 mm

293750002

$1.01

25

Tie Rap Mount (screwable)

515176795

$4.96

26

Avex Rivet

390909200

$0.28

28

Tie-Rap 180 mm

414115200

$0.10

46

Rocker Switch

510004413

$8.31

47

Switch Protector

510004414

$7.15

48

Male Terminal Housing, 6 Circuits

515175662

$8.31

49

Male Terminal Housing, 4 Circuits

515175846

$8.31

50

Ground Wire

515176358

$25.34

51

Female Terminal Housing

515176550

$6.24

53

PLATE - Call your local BRP dealership

515177039

Unavailable

55

Connector Plate

515177134

$13.60

56

Housing Plate

515177147

$17.13

57

Compressor Module

515177234

$409.99

58

Electrical Motor Ass'y

515178574

$238.03

59

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

60

Plate

515177347

$13.40

61

Battery Support

515177348

$29.07

63

Reverse Harness | Reverse Harness

515177350

$56.69

64

Switch

515177394

$73.10

65

12 Volts Outlet Harness

515177400

$31.31

66

Switch Ass'y

515177460

$47.73

67

BATTERY WIRE - Call your local BRP dealership

515177535

Unavailable

68

Fan Harness

515177646

$49.97

70

LH Switch Housing

515178197

$251.46

74

Visor Harness

515177837

$31.31

75

WIRING HARNESS ASSY - Call your local BRP dealership

515177993

Unavailable

79

Cap

572103300

$9.36

80

Protector Cap

710000495

$9.84

81

DC Outlet

710001248

$35.79

83

Indicator | Except Package SWT

515177913

$519.37

83a

Speedometer Button | XTP

415129355

$13.52

83c

Lens | XTP

415129349

$22.36

83b

Gauge Ring

415129348

$11.36

84

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

85

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

86

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

86

Key

860201162

$67.13

88

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

89

Trim 1000Mm Long

219704354

$14.30

91

Rivet

515177929

$2.06

92

Tubing 6 Mm 3000Mm Long

219704425

$12.75

93

Ground Wire

515177014

$14.90

94

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

94a

Battery Bolt Kit

250000282

$3.39

95

Screw M4 X 16

250000725

$3.30

96

Hex. Flange Screw M6 X 25

250000793

$2.00

97

Extension

515175851

$10.55
