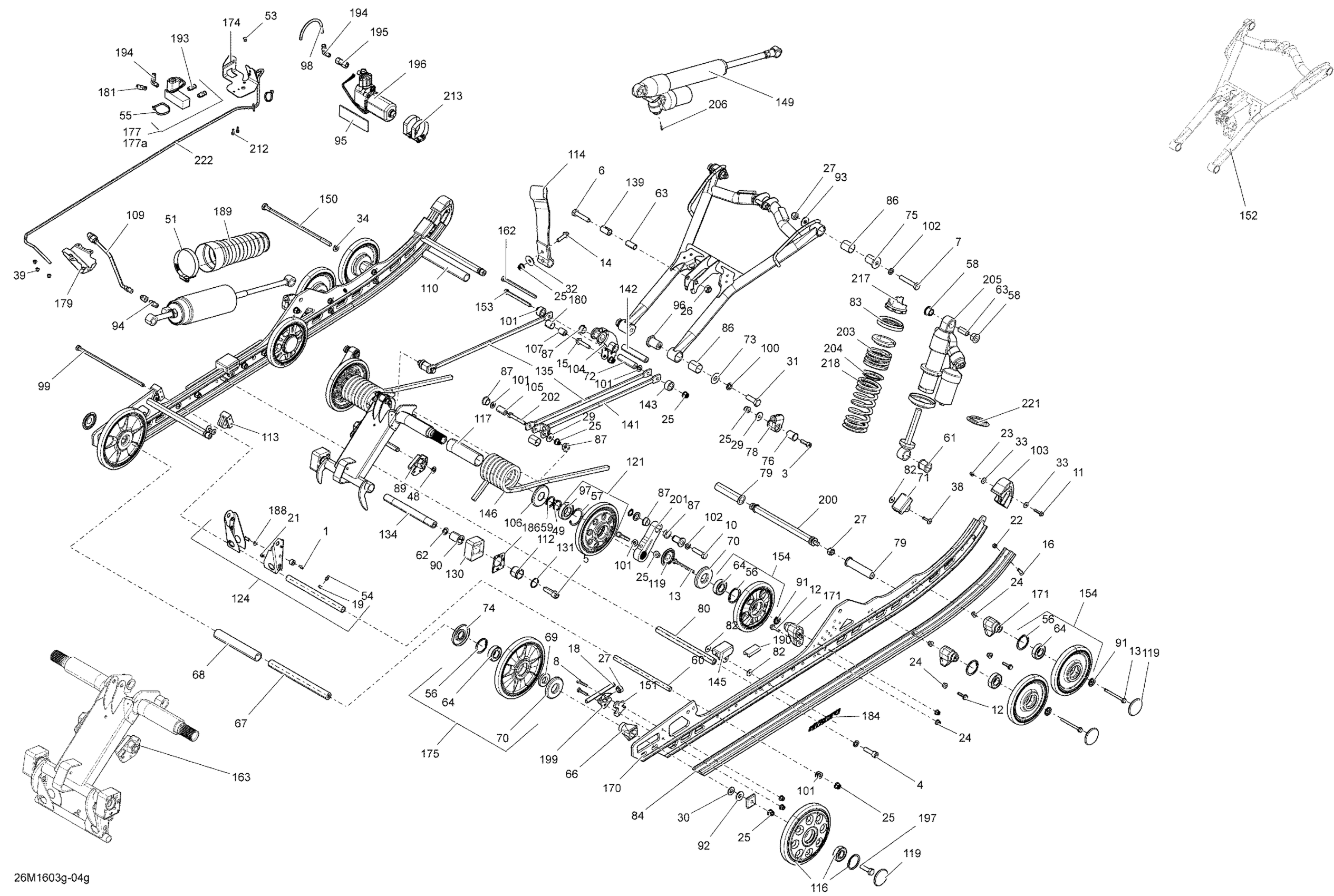

Ski-Doo RENEGADE - 4-STROKE, 2016 Rear Suspension - Package Enduro Diagram

#

Description
Price

1

Socket Head Screw M4X 10

205041060

$1.74

3

Socket Screw M8 X 25

205082554

$1.74

4

Socket Head Screw M10 X 35

205503554

$6.18

5

Socket Head Screw M12 X 35

205523554

$4.28

6

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

7

Hex. Cap Screw M10 X 60

207006056

$6.18

8

Hex. Cap Screw M6 X 30

207063054

$4.41

10

Cap Screw Hex. M10 X 40

207204056

$6.18

11

Hex. Flange Screw M5 X 25

207652544

$0.42

12

Hex. Flange Screw M6 X 25

207662556

$3.61

13

Hex. Flange Screw M6 X 70

207667056

$3.61

14

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

15

Hex. Flange Screw M8 X 40

207684044

$1.25

16

Phillips Screw M6 X 25

208562531

$1.74

18

Hex Screw M10 x 100

230100054

$5.29

19

Hexagonal Nut M6

232061404

$0.32

21

Elastic Stop Nut M5

232551414

$0.72

22

Elastic Stop Nut M6

232561434

$1.55

23

Flange Elastic Nut M5

233251434

$1.66

24

Hex. Flange Elastic Nut M6

233261466

$1.66

25

Elastic Flange Nut M8

233281466

$0.83

26

Elastic Locking Nut M10 X 1.5

233601416

$1.68

27

Flange Elastic Nut M10

233201466

$2.63

27

Elastic Locking Nut M10

233601466

$1.74

29

Flat Washer 8 mm

234082410

$1.11

30

Conical Spring Washer 10 mm

234201474

$1.39

31

Hex. Cap Screw M12 X 35

250000537

$2.63

32

Flat Washer 8 mm

250200128

$1.74

33

Washer

250200140

$0.83

34

Flat Washer

250200143

$2.63

38

Pop Rivet 3/16"

293150013

$1.11

38

Pop Rivet 3/16"

390402200

$0.26

39

Rivet 3/16"

293150102

$0.71

48

E-Circlip

293370013

$0.62

49

Retaining Ring

293370080

$2.12

51

Tridon Clamp

293650064

$7.80

53

Avex Rivet

390909200

$0.29

54

Grease Fitting

408200700

$2.80

55

Tie Wrap 368 mm

293750008

$0.85

55

Tie-Rap 180 mm

414115200

$0.09

56

Retaining Ring

415129371

$8.92

57

Retaining Ring

415129780

$13.88

58

Urethane Bushing

503189117

$6.88

59

Axle Spring

503189146

$7.54

60

Pivot Arm Axle

503189156

$20.74

61

Bushing

503189271

$10.46

62

Washer

503189276

$3.20

63

Bushing | Includes 240d to 240d1

503189282

$4.18

64

Ball Bearing | Package-STD

503190396

$7.12

66

Rear Wheel Spacer

503190428

$6.06

67

Rear Axle

503190429

$59.97

68

Spacer

503196317

$15.35

69

Washer

503190432

$12.52

70

Labyrinth Seal

503190434

$4.29

71

Rubber Stopper

503190576

$10.23

73

Washer

503190656

$2.91

74

Labyrinth Seal

503190682

$5.85

75

Axle

503190698

$17.66

76

Spring Support Kit

861805547

$8.14

78

Spring Support Kit

861805547

$8.14

79

Center Bushing

503191259

$8.97

80

Axle Strap

503191260

$29.20

82

Washer

503191273

$1.06

83

Spring Spacer

503191281

$7.66

84

Black, Slider Shoe 137''

503191306

$27.66

86

Bushing

503191554

$5.88

87

Swivel Bushing

503191555

$5.71

89

RH Cam Adjuster

503191566

$13.95

89

LH Cam Adjuster

503191565

$13.95

90

Cushion

503191640

$5.71

91

Wheel Cup M6

503191820

$4.66

92

Washer

503191910

$2.25

93

Washer

503191926

$1.57

94

Male Pneumatic Connector

503191939

$45.99

95

Rubber Damper

503191940

$8.72

96

Lower Axle

503191966

$15.35

97

Ball Bearing

503193548

$16.89

98

Tubing 6 Mm 3000Mm Long

219704425

$13.14

98

Hose 4.32Mm 3000Mm Long

219704415

$44.17

99

Bolt M8 X 248mm

503192440

$29.97

100

Washer

503192491

$4.38

101

Washer

503192494

$3.11

102

Washer

503192496

$0.75

103

Slide Protector

503192530

$16.89

104

Rocker

503194079

$78.43

105

Axle Bar

503192555

$11.40

106

Labyrinth Ring

503192592

$4.66

107

Axle Shock Absorber

503196509

$11.98

109

Air Hose Ass'y

503192652

$123.82

110

Spacer

503196943

$7.58

112

Guide Block

503192749

$5.85

113

Rubber Stopper

503192750

$12.65

114

Stopper Strap

503192759

$25.35

116

Black, Wheel Ass'y 180 mm | Included 600 to 600b

503192766

$49.97

117

Bushing

503192767

$15.26

119

Black, Wheel Cap

503192771

$2.28

121

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$46.12

124

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$118.43

130

RH Cam Block

503192919

$12.65

130

LH Cam Block

503192918

$12.65

131

O-Ring

503192921

$2.25

134

Lower Shaft

503192981

$17.66

139

Bushing

503193037

$15.35

141

Link Rod

503193058

$18.43

142

Axle Bar

503193063

$37.66

143

Spacer

503193064

$8.74

145

Rubber Stopper Ass'y

503195523

$5.25

146

RH Spring

503192080

$66.89

146

LH Spring

503192081

$66.89

149

Rear Shock | Includes 5500 to 5500,007

503194333

$716.99

150

Bolt M10 X 251MM

503193227

$16.12

151

Spacer

503193250

$13.95

152

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

154

Black, Wheel Ass'y 147 mm | Included 440 to 440b

503193376

$46.12

162

Screw M8 X 120, 10.9

503193499

$3.29

163

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$267.66

170

Black, Runner 137"

503193552

$286.12

171

Casted Support

503193894

$12.75

174

SUPPORT - Call your local BRP dealership

503194043

Unavailable

175

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$49.97

177

PRESSURE COLLECTOR - Call your local BRP dealership | Includes 6010 to 6010,005

503194157

Unavailable

177a

Male Terminal

515175232

$1.49

179

BRACKET - Call your local BRP dealership

503194290

Unavailable

180

Leg Cushion

505072663

$7.40

181

Male Terminal Housing, 2 Circuits

515175654

$7.48

184

Runner Decal

516004755

$9.11

186

RH Block Sticker Decal

516004901

$16.12

186

LH Block Sticker Decal

516004900

$16.12

188

Flat Washer

517225900

$0.17

189

Protection Boot

570278300

$59.97

190

Reinforcement Stopper

572084800

$5.25

193

Connector

706000869

$33.05

194

Elbow 90°

706000872

$26.89

195

Check Valve

706000940

$35.35

196

Compressor

706001349

$436.89

197

Hex Screw With Nilon Patch, M10 X 35

250000817

$3.61

199

Tensioner

503192583

$5.85

200

Pivot Axle

503193435

$38.43

201

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

202

Hex. Screw M8 X 55

207085586

$6.11

203

Black, Spring (189mm) Long

503193067

$88.43

203

Black, Spring (51mm) Short

503193837

$66.89

204

Spring Stopper

503194270

$16.89

205

Center Shock Ass'y

503193208

$238.43

212

Socket Head Screw M4 X 10 | 400HO (Europe)

205041044

$1.09

213

Norma Gear Clamp

293650090

$4.38

217

Adjustment Cam

505073625

$12.18

218

Deep Black, Spring (189mm) Long

503193160

$88.43

221

Spring Guide

503191872

$2.18

222

Hose 4.32Mm 3000Mm Long

219704415

$44.17
