Description

Price

1

Socket Head Screw M4X 10

205041060

$2.11

3

Socket Screw M8 X 25

205082554

$2.11

4

Socket Head Screw M10 X 35

205503554

$7.51

5

Socket Head Screw M12 X 35

205523554

$4.44

6

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

7

Hex. Cap Screw M10 X 60

207006056

$7.51

8

Hex. Cap Screw M6 X 30

207063054

$6.39

10

Cap Screw Hex. M10 X 40

207204056

$7.51

11

Hex. Flange Screw M5 X 25

207652544

$0.50

12

Hex. Flange Screw M6 X 25

207662556

$4.44

13

Hex. Flange Screw M6 X 70

207667056

$4.44

14

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

15

Hex. Flange Screw M8 X 40

207684044

$1.48

16

Phillips Screw M6 X 25

208562531

$2.11

18

Hex Screw M10 x 100

230100054

$6.45

19

Hexagonal Nut M6

232061404

$0.34

21

Elastic Stop Nut M5

232551414

$0.87

22

Elastic Stop Nut M6

232561434

$1.99

23

Flange Elastic Nut M5

233251434

$2.00

24

Hex. Flange Elastic Nut M6

233261466

$2.00

25

Elastic Flange Nut M8

233281466

$1.01

26

Elastic Locking Nut M10 X 1.5

233601416

$1.69

27

Flange Elastic Nut M10

233201466

$3.17

27

Elastic Locking Nut M10

233601466

$2.11

29

Flat Washer 8 mm

234082410

$1.47

30

Conical Spring Washer 10 mm

234201474

$1.69

31

Hex. Cap Screw M12 X 35

250000537

$3.17

32

Flat Washer 8 mm

250200128

$4.44

33

Washer

250200140

$1.01

34

Flat Washer

250200143

$3.17

38

Pop Rivet 3/16"

293150013

$1.37

38

Pop Rivet 3/16"

390402200

$0.35

48

E-Circlip

293370013

$0.65

49

Retaining Ring

293370080

$2.29

54

Grease Fitting

408200700

$3.49

56

Retaining Ring

415129371

$12.01

57

Retaining Ring

415129780

$15.79

58

Urethane Bushing

503189117

$8.19

59

Axle Spring

503189146

$9.59

60

Pivot Arm Axle

503189156

$21.99

61

Bushing

503189271

$13.99

62

Washer

503189276

$3.28

63

Bushing | Includes 240d to 240d1

503189282

$4.34

64

Ball Bearing | Package-STD

503190396

$14.30

66

Rear Wheel Spacer

503190428

$8.14

67

Rear Axle

503190429

$59.99

68

Spacer

503196317

$18.49

69

Washer

503190432

$14.22

70

Labyrinth Seal

503190434

$6.09

71

Rubber Stopper

503190576

$12.99

72

Axle Bar (Long)

503190643

$17.39

73

Washer

503190656

$2.96

74

Labyrinth Seal

503190682

$6.19

75

Axle

503190698

$20.99

76

Spring Support Kit

861805547

$10.49

77

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

78

Spring Support Kit

861805547

$10.49

79

Center Bushing

503191259

$11.49

80

Axle Strap

503191260

$30.99

82

Washer

503191273

$1.35

83

Spring Spacer

503191281

$8.89

84

Black, Slider Shoe 137''

503191306

$29.49

86

Bushing

503191554

$6.14

87

Swivel Bushing

503191555

$7.83

89

RH Cam Adjuster

503191566

$16.49

89

LH Cam Adjuster

503191565

$16.49

90

Cushion

503191640

$5.93

91

Wheel Cup M6

503191820

$4.99

92

Washer

503191910

$2.32

93

Washer

503191926

$1.58

96

Lower Axle

503191966

$15.89

97

Ball Bearing

503193548

$17.99

99

Bolt M8 X 248mm

503192440

$30.49

100

Washer

503192491

$4.54

101

Washer

503192494

$3.17

102

Washer

503192496

$0.77

103

Slide Protector

503192530

$19.99

104

Rocker

503194079

$83.99

105

Axle Bar

503192555

$14.15

106

Labyrinth Ring

503192592

$4.99

107

Axle Shock Absorber

503196509

$12.58

110

Spacer

503196943

$10.99

112

Guide Block

503192749

$6.19

113

Rubber Stopper

503192750

$14.99

114

Stopper Strap

503192759

$25.99

116

Black, Wheel Ass'y 180 mm | Included 600 to 600b

503192766

$51.99

117

Bushing

503192767

$17.39

119

Black, Wheel Cap

503192771

$2.39

121

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

124

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$124.99

130

RH Cam Block

503192919

$14.99

130

LH Cam Block

503192918

$14.99

131

O-Ring

503192921

$2.32

134

Lower Shaft

503192981

$20.99

135

Link Rod

503193005

$28.49

138

Shock Adjuster Knob

503193033

$10.99

139

Bushing

503193037

$16.18

145

Rubber Stopper Ass'y

503195523

$5.59

146

Black, RH Spring Square

503192104

$79.49

146

Black, RH Spring Square

503193159

$79.49

146

Black Lh Spring

503192105

$79.49

146

Black, LH Spring Square

503193158

$79.49

149

Rear Shock

503194626

$248.99

149

Rear Shock Ass'y | Europe Models

503193800

$877.49

149a

O-Ring

415093804

$4.54

149b

O-Ring

505070400

$4.54

149c

Screw | Not Shown

505070399

$4.12

149d

Air Valve

505070398

$20.99

149e

Piston Ring | Not Shown

415093806

$16.86

149f

O-Ring

415093807

$35.99

150

Bolt M10 X 251MM

503193227

$17.29

151

Spacer

503193250

$16.49

152

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

153

Screw M8 X 90

503193372

$4.44

154

Black, Wheel Ass'y 147 mm | Included 440 to 440b

503193376

$48.49

163

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$285.99

170

RAIL_SUSPENSION 137 B-337 - Call your local BRP dealership

503193946

Unavailable

170

Black, Runner 137"

503193552

$309.99

171

Casted Support

503193894

$16.49

175

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

180

Leg Cushion

505072663

$9.23

184

Runner Decal

516004755

$11.99

186

RH Block Sticker Decal

516004901

$18.99

186

LH Block Sticker Decal

516004900

$18.99

188

Flat Washer

517225900

$0.18

190

Reinforcement Stopper

572084800

$12.99

197

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.44

199

Tensioner

503192583

$8.29

200

Pivot Axle

503193435

$39.99

201

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

202

Hex. Screw M8 X 55

207085586

$7.41

203

Black, Spring (189mm) Long

503193067

$90.99

203

Black, Spring (51mm) Short

503193837

$67.99

203

Black, Spring (51mm) Short

503193837

$67.99

203

Black, Spring (51mm) Short

503193837

$67.99

204

Spring Stopper

503194270

$19.99

205

Central Shock

503193536

$434.49

205

Center Shock Ass'y

503193208

$248.99

205

Center Shock Ass'y

503193208

$248.99

206

Allen Screw M3 X 0.5 X 10

250000644

$2.11

217

Adjustment Cam

505073625

$12.99

217

Adjustment Cam

505073625

$12.99

218

Deep Black, Spring (189mm) Long

503193160

$90.99

221

Spring Guide

503191872

$2.29

221

Spring Guide

503191872

$2.29

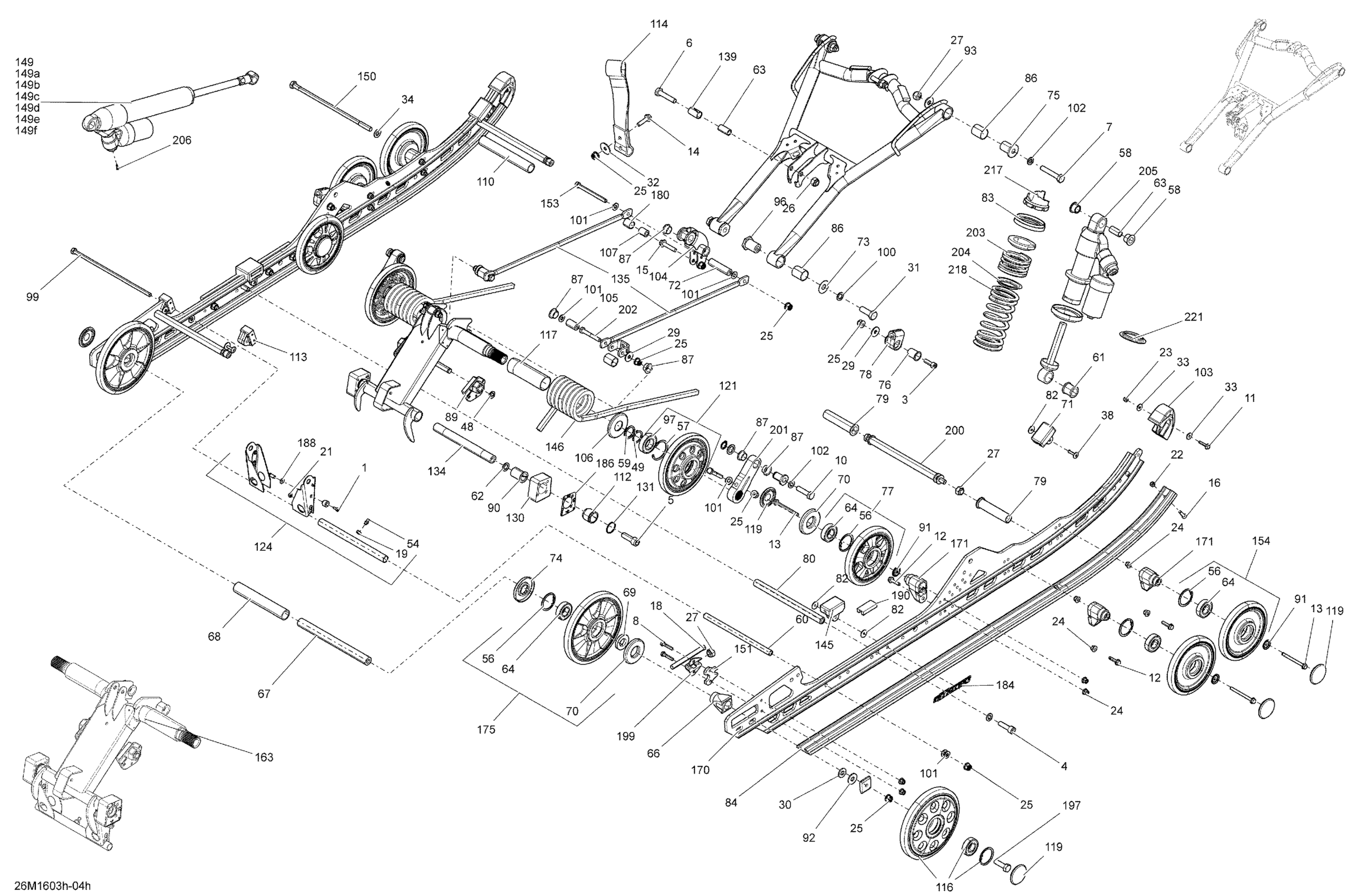

Ski-Doo RENEGADE - 4-STROKE, 2016 08- Rear Suspension - Package Adrenaline Diagram
