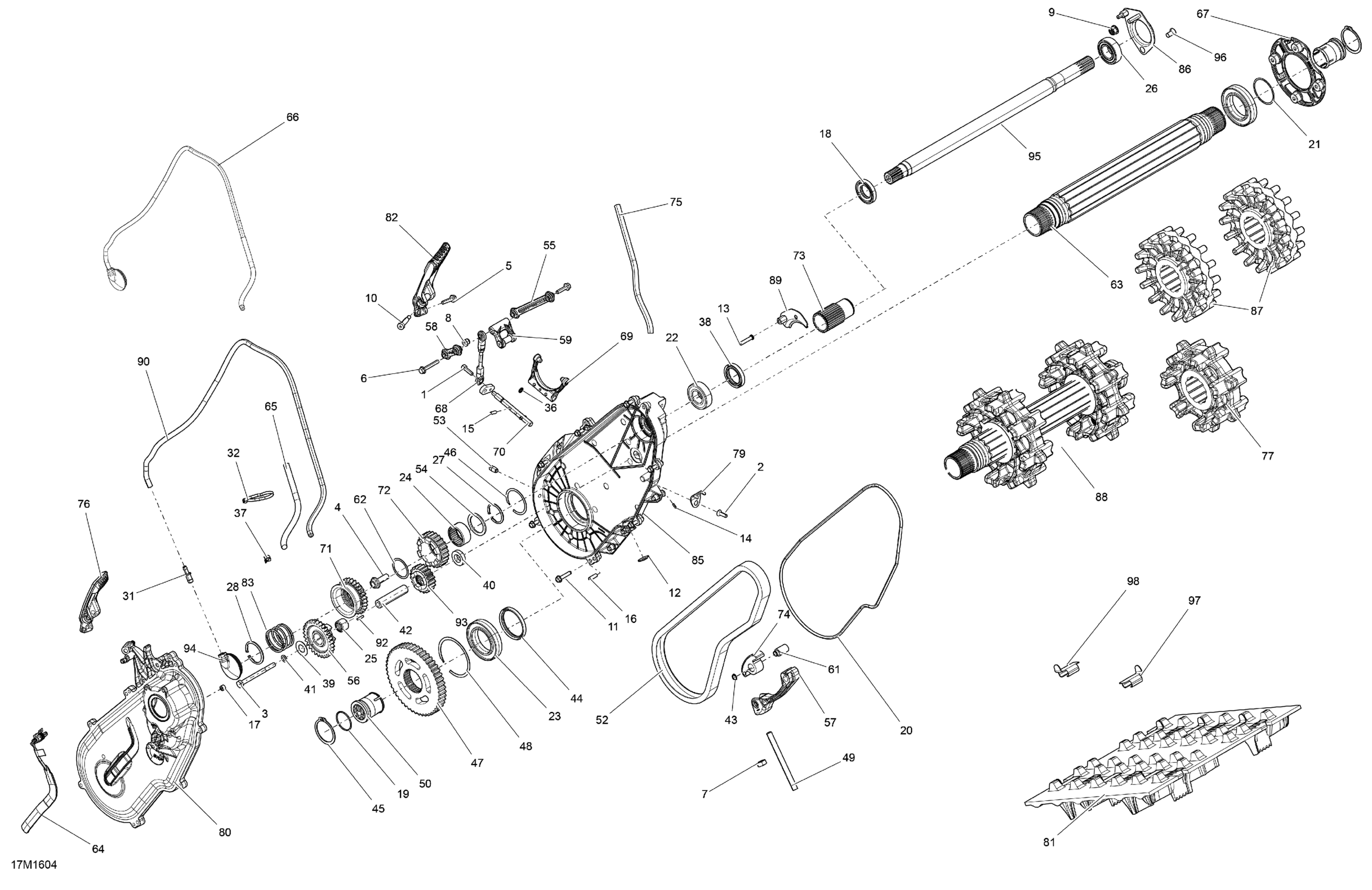

Ski-Doo RENEGADE - 4-STROKE, 2016 Drive System - All Models Diagram

#

Description
Price

1

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.00

2

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.88

3

Hex. Screw M8 X 90

207089044

$3.24

4

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

5

Hex. Flange Screw M6 X 25

207562544

$1.60

6

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.15

7

Hex. Nut M10 X 1.5

232006414

$1.27

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

9

Hex. Flange Elastic Nut M8

233281414

$1.31

10

Socket Head Screw M8 X 25, Scotch Grip

250000340

$7.09

11

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

12

Bonded Washer

250200100

$2.00

13

Clinch Stud M6 X 30

250300031

$1.87

14

Rolled Pin M3 X 10

250400010

$1.79

15

Spring Pin M5 X 16

250400045

$4.28

16

Dowel Pin

250400048

$2.00

17

Hex. Countersunk Drain Plug

250500013

$6.58

18

Oil Seal

293200168

$13.24

19

O-Ring

293300122

$2.00

20

Tight Seal

293300130

$7.09

21

O-Ring

293300134

$2.18

22

Ball Bearing

293350115

$10.82

23

Ball Bearing

293350059

$29.82

24

Needle Bearing

293350063

$22.36

25

Needle Bearing

293350064

$21.61

26

Ball Bearing

293350074

$38.49

27

Circlip

293370054

$7.09

28

Circlip

293370055

$7.09

31

Straight Fitting

293710035

$8.37

32

Tie-Rap 180 mm

414115200

$0.10

36

O-Ring

414484400

$7.09

37

Spring Clamp

414554800

$0.81

38

Oil Seal

293200158

$12.15

39

Spacer

504077300

$6.07

40

Ring

504078700

$17.13

41

Washer

504082900

$2.51

42

Reverse Shaft

504083100

$46.99

43

Circlip

504152282

$3.01

44

Oil Seal

293200159

$12.73

45

Circlip

504152572

$6.07

46

Circlip

504152576

$8.45

47

Kit Sprocket This part replaces 504152581.

861805539

$145.49

47

Kit Sprocket This part replaces 504152593.

861805538

$148.48

47

Kit Sprocket This part replaces 504152971.

861805540

$145.49

48

Circlip

504152582

$8.45

49

Adjustment Screw

504152602

$9.33

50

Magnetic Cap

504152619

$22.36

52

Drive Chain, 104 Links

504152629

$168.63

52

Drive Chain, 106 Links

504152630

$168.63

53

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.69

53

Magnetic Plug 1/8 - 27 NPTF

504152854

$8.69

54

Washer

504152689

$6.07

55

Double Ball Joint

504152710

$49.97

56

Sprocket, 29 Teeth

504152724

$170.12

57

Chaine Tensionner

504153431

$13.36

58

Double Ball Joint

504152766

$14.90

59

Lever

504153427

$27.58

61

Tensioner Axle

504152841

$14.21

62

Washer

504152862

$9.03

63

Not Available As Spare Part - Friction Washer

Unavailable

64

Rotation Sensor

504152896

$34.30

65

Protector Tube

504153074

$12.21

66

Cap Ass'y | Includes 1740 to 1740d

504152929

Unavailable

67

Retaining Ring

504153886

$17.88

68

Ball Joint

504152951

$43.25

69

Fork Ass'y

504153432

$34.30

70

Welded Axle Fork

504152956

$27.58

71

Slinding Gear, 27 Teeth

504152960

$98.48

72

Sprocket, 21 Teeth

504152927

$119.37

72

Sprocket, 24 Teeth | Engine 900 ACE

504152961

$126.84

73

Coupling

504152979

$67.88

74

Slider Chain

504152739

$65.64

75

Protector Tube

504153074

$12.21

76

Grip

504153082

$32.06

77

Not Available As Spare Part - Friction Washer

Unavailable

77

Not Available As Spare Part - Friction Washer

Unavailable

79

Chain Slider

504153122

$14.90

80

Chaincase Cover Ass'y | Includes 1700 to 1700b

504153144

$329.07

80

Black Chaincase Cover Ass'y | Includes 1700 to 1700a

504153412

$311.91

81

Track Ass'y 16" X 137" X 1.7" | Package X, Engine 1200 ACE, Europe (MMJJ)

504152803

$1,059.99

81

Track Ass'Y 15X137X1.2 | Includes 3200 to 3200b

504152905

$929.99

81

Track Ass'Y 15X137X1.2 | Includes 3200 to 3200b

504152905

$929.99

81

Track 15 X 137 X 1,25 | Includes 3200 to 3200b

504154373

$1,149.99

81

Track 15 X 137 X 1,25 | Includes 3200 to 3200b

504154373

$1,149.99

81

Track Ass'y 15" X 137" X 1.5RS" | Includes 3200 to 3200b

504153237

$959.99

81

Track Ass'y 15" X 137" X 1.2C" | Includes 3200 to 3200b

504152838

$959.99

82

Grip

504153174

$26.09

83

Spring Release

504153178

$8.52

85

Chaincase

504153184

$311.91

85

Chaincase | Includes 10 to 10b

504153407

$311.91

86

Bearing Housing

504153187

$27.58

87

Drive Axle Ass'y

504153269

$397.73

88

Drive Axle Ass'y

504154054

$492.51

89

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.39

90

Polyurethane Hose 10000Mm Long

219704410

$52.96

92

Alignement Rod

570048600

$13.36

93

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$100.72

94

Cap

504152930

$6.07

94

Cap

504152930

$6.07

95

Countershaft

504153000

$551.46

96

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

97

Track Guide | Track Width 16''

415129528

$3.03

98

Cleat

504152651

$7.97

98

Cleat

504152651

$7.97

98

Cleat

504152651

$7.97

98

Cleat

504152651

$7.97

100

Plate | Not Shown

518325816

$71.61
