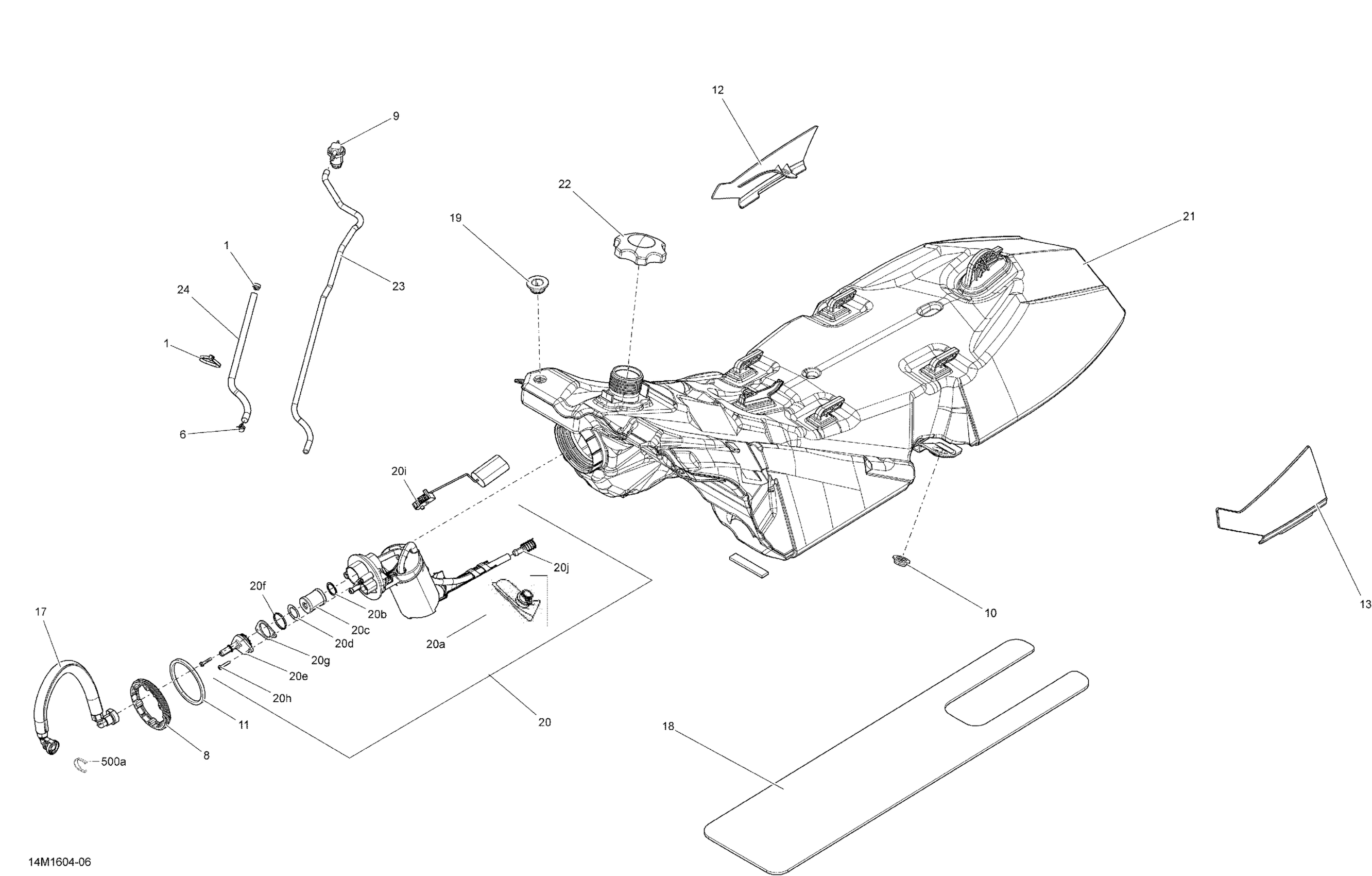

Ski-Doo RENEGADE - 4-STROKE, 2016 Fuel System - All Models Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.10

6

Spring Clamp

414554800

$0.81

8

Ring

513033180

$17.13

9

Check Valve

513033842

$32.81

10

Shoulder Bushing

513033326

$12.24

11

Gasket

513033334

$22.36

12

RH Cap

513033418

$12.24

13

LH Cap

513033419

$12.24

17

Hose Ass'y | Includes 27 to 28

513033583

$75.34

18

Insulating Foam

513033588

$12.24

19

Grommet

513033596

$17.88

20

PUMP FUEL | Includes 300 to 300k This part replaces 513033838.

513034260

$249.97

20a

Fuel Filter

415129451

$23.10

20b

O-Ring

415129511

$16.39

20c

Fuel Filter

415129510

$23.10

20d

Wave Washer

415129512

$17.88

20e

Cover

415129685

$29.07

20f

O-Ring

415129509

$17.88

20g

Fuel Pump Ring

415129569

Unavailable

20h

Screw

415129513

$8.73

20i

Fuel Level Sensor

415130108

$136.54

20j

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

21

Fuel Tank

513033667

$304.45

22

Fuel Tank Cap

513033969

$24.60

22

Fuel Tank Cap | Europe Models

513033721

$24.60

23

Polyurethane Hose 10000Mm Long

219704410

$52.96

24

Protector Tube

504153074

$12.21

500a

Locking Clip

513033135

$4.96
