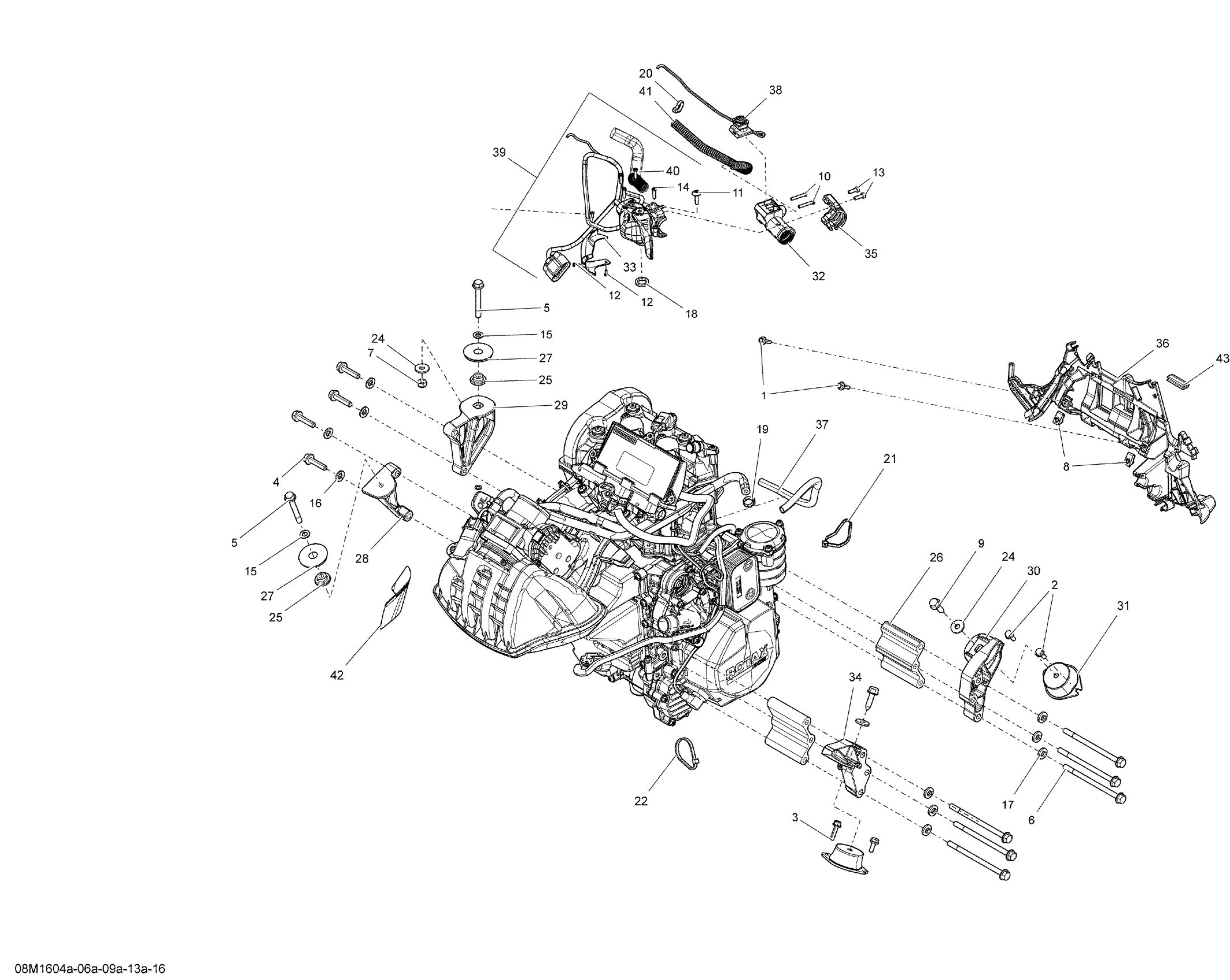

Ski-Doo RENEGADE - 4-STROKE, 2016 Engine - 600 ACE Diagram

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.00

Hex. Flange Screw M8 X 35

250000986

$2.00

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.00

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.18

Hex. Elastic Stop Nut M8

232581414

$0.54

Panel Nut M5 X 0.8

250000958

$4.00

Cone Screw, M8 X 30

250000257

$1.67

Torx Screw #8-18

250000263

$0.99

Torx Screw M5 X 20

250000528

$2.00

Torx Screw M2.9 x 9.5

250000623

$3.01

Torx Screw M5 X 14

250000632

$7.09

Torx Screw

250000671

$0.96

Flat Washer With Teflon 8 mm

250200008

$3.58

Conical Spring Washer M8

250200146

$0.96

Conical Spring Washer M8

250200157

$2.00

Not Available As Spare Part - Friction Washer

Unavailable

Oetiker Gear Clamp

293650025

$2.82

Tie Wrap 142 mm

293750002

$1.01

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap 180 mm

414115200

$0.10

Yellow, Washer

503183200

$2.91

Spacer

512060285

$17.13

Shim

512060505

$41.01

Stopper

512061203

$12.15

Rear Support PTO

512061139

$23.10

Front Support PTO

512061140

$17.13

Front Support, MAG

512060663

$17.88

Rubber Mount

512060729

$67.88

Switch Support

512061453

$8.13

Cap

512060862

$11.22

Rear Support MAG

512061142

$26.84

Front Housing

512060987

$8.09

Module Support

512060994

$14.10

Protector Tube

512061067

$22.36

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$270.12

Handle Ass'y kit

415130047

$94.00

Protector Tube

515177716

$4.28

Protector Tube

515177716

$4.28

Decal Checking Engine Oil

516007500

Unavailable

Trim 1000Mm Long

219704354

$14.30
