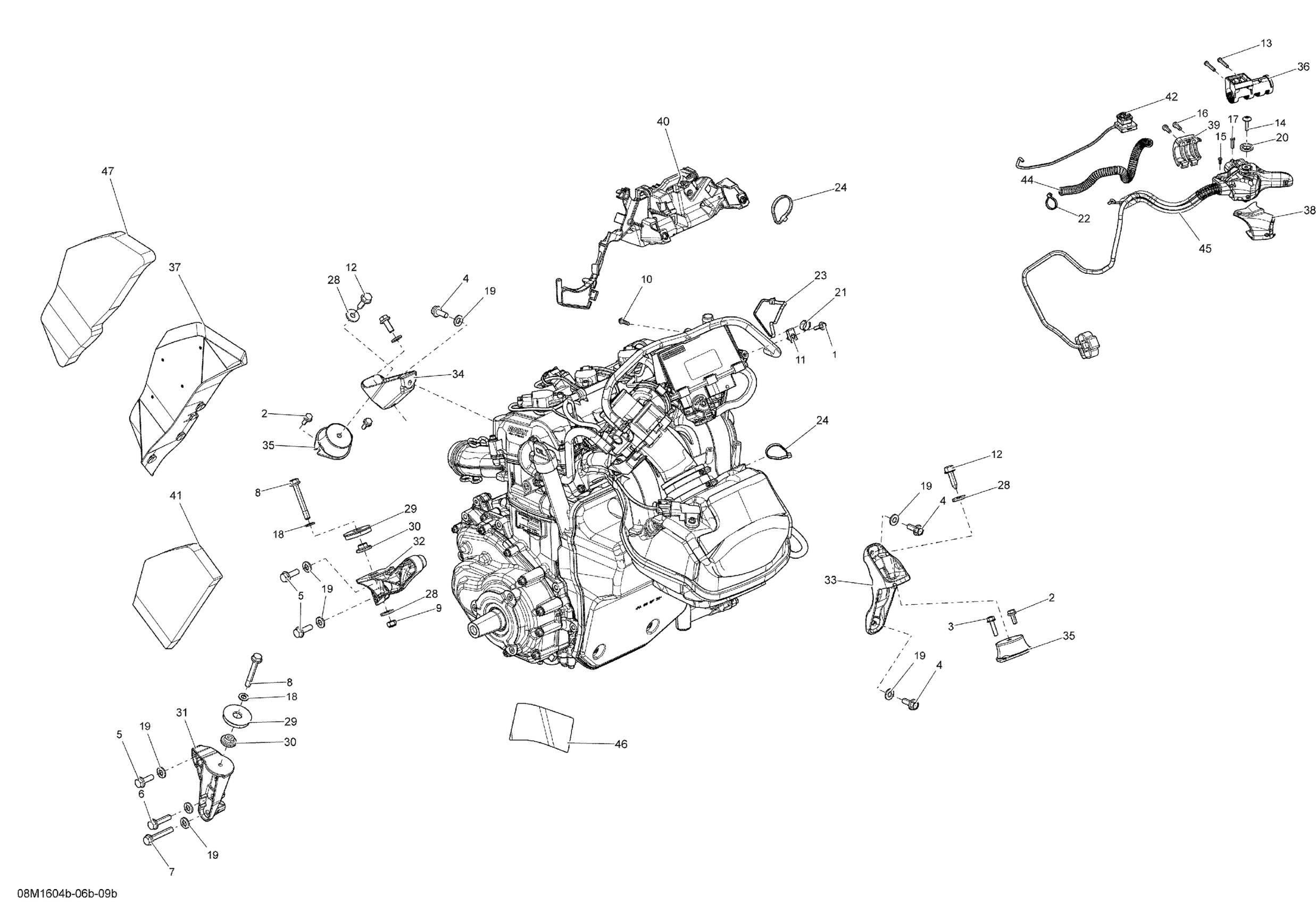

Ski-Doo RENEGADE - 4-STROKE, 2016 Engine - 1200 4-TEC Diagram

#

Description
Price

1

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

2

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

3

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.00

4

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

6

Hex. Flange Screw M8 X 35

250000986

$2.00

7

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.15

8

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.00

9

Hex. Elastic Stop Nut M8

232581414

$0.54

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

11

Panel Nut M5 X 0.8

250000958

$4.00

12

Cone Screw, M8 X 30

250000257

$1.67

13

Torx Screw #8-18

250000263

$0.99

14

Torx Screw M5 X 20

250000528

$2.00

15

Torx Screw M2.9 x 9.5

250000623

$3.01

16

Torx Screw M5 X 14

250000632

$7.09

17

Torx Screw

250000671

$0.96

18

Flat Washer With Teflon 8 mm

250200008

$3.58

19

Conical Spring Washer M8

250200146

$0.96

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Oetiker Clamp

293650046

$2.67

22

Tie Wrap 142 mm

293750002

$1.01

23

Tie Wrap 368 mm

293750008

$0.97

24

Tie-Rap 180 mm

414115200

$0.10

28

Yellow, Washer

503183200

$2.91

29

Stopper This part replaces 512060244.

512061202

$17.88

30

Spacer

512060285

$17.13

31

Rear Support, PTO

512060591

$44.00

32

Front Support, PTO

512060593

$27.58

33

Rear Support, MAG

512060594

$29.07

34

Front Support, MAG

512060596

$29.07

35

Rubber Mount

512060729

$67.88

36

Switch Support

512061453

$8.13

37

Noise Shield

512060847

$14.10

38

Cap

512060862

$11.22

39

Front Housing

512060987

$8.09

40

Module Support

512061012

$14.10

41

NOISE FOAM - Call your local BRP dealership

512061135

Unavailable

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

44

Protector Tube

515177716

$4.28

45

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$270.12

45a

Handle Ass'y kit

415130047

$94.00

46

Decal Checking Engine Oil

516007500

Unavailable

47

Inner Acoustic Foam

512060958

$17.88
