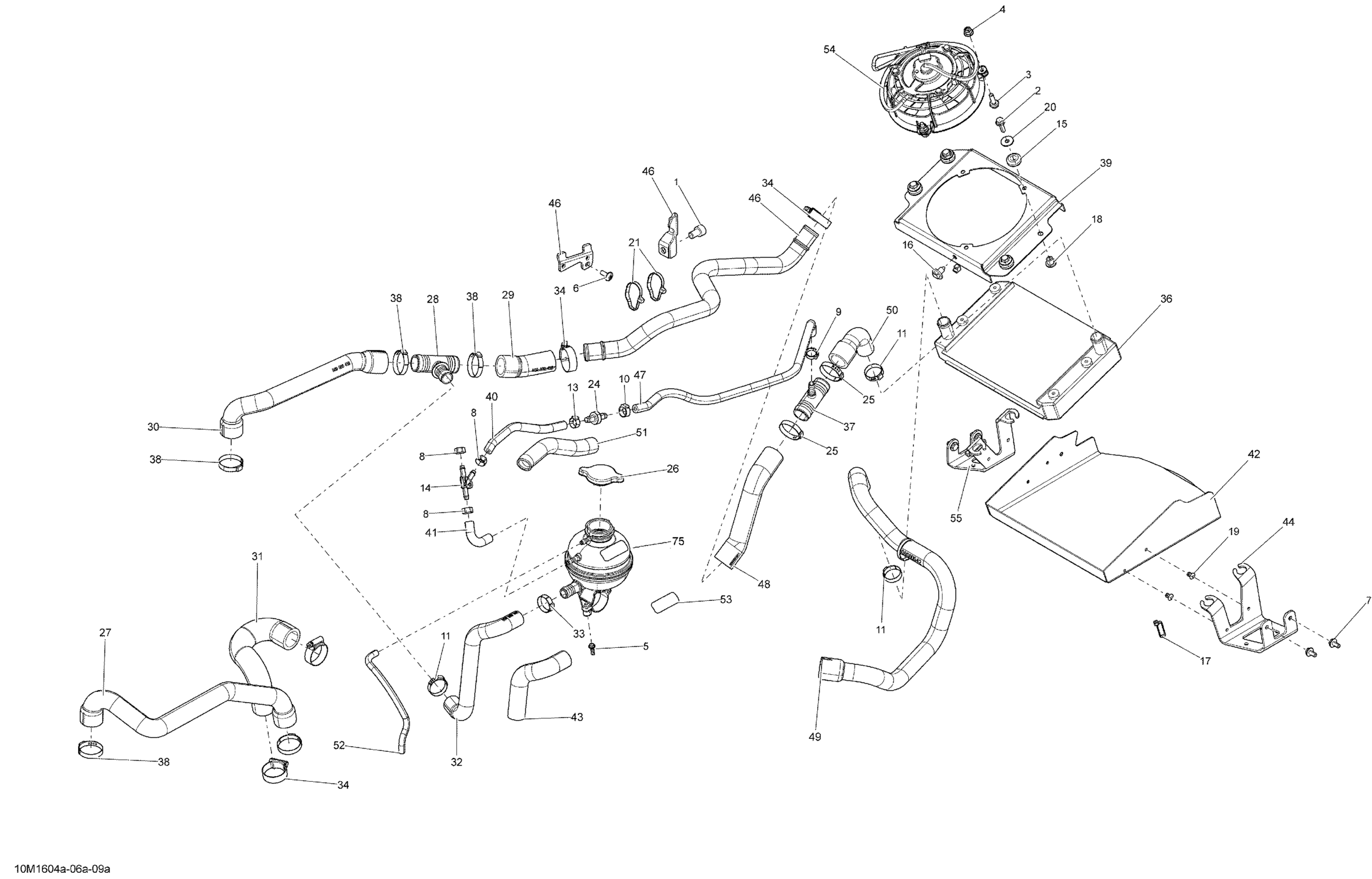

Ski-Doo RENEGADE - 4-STROKE, 2016 Cooling System - 1200 4-TEC Diagram

#

Description
Price

1

Socket Screw M10 X 16

205501644

$3.38

2

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

6

Torx Screw M6 X 16

250000365

$1.74

7

Hex. Flange Screw M6 X 16

207661644

$0.61

8

Oetiker Clamp

293650046

$2.33

9

Crimp Clamp, 15.3-706R

293650047

$2.64

10

Crimp Clamp

293650053

$2.42

11

Crimp Clamp

293650099

$3.55

13

Oetiker Clamp

293650125

$2.69

14

Y-Fitting

293710140

$7.31

15

Grommet

709000582

$4.38

16

Mount Dart

293730040

$0.86

17

Tie Wrap 142 mm

293750002

$0.88

18

Bushing

293900100

$6.31

19

Avex Rivet

390909100

$0.29

20

Flat Washer

250200082

$0.35

21

Tie-Rap 180 mm

414115200

$0.09

24

Check Valve

509000153

$16.89

25

Gear Clamp

509000162

$7.37

26

Radiator Pressure Cap

509000180

$11.69

27

RADIATOR HOSE - Call your local BRP dealership

509000370

Unavailable

28

T-Fitting

509000372

$7.87

29

Radiator Hose

509000438

$18.43

30

Radiator Hose

509000439

Unavailable

31

Outlet Hose

509000440

$18.43

32

Hose

509000441

$24.58

33

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

34

Aba Gear Clamp, 26-38 MM

509000443

$5.68

36

Radiator

509000488

$330.74

37

T-Fitting

509000510

$11.52

38

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

39

Fan Support

509000714

$49.20

40

Hose-formed

509001069

$13.58

41

Hose

509001070

$11.52

42

Air Inlet Deflector

509000835

$94.58

43

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

44

Support

509000933

$37.66

46

WATER PIPE - Call your local BRP dealership

509000938

Unavailable

47

BREATHER HOSE - Call your local BRP dealership

509000940

Unavailable

48

RADIATOR HOSE - Call your local BRP dealership

509000941

Unavailable

49

RADIATOR HOSE - Call your local BRP dealership

509000942

Unavailable

50

Radiator Hose

509000944

$19.20

51

Tubing 16 Mm 1000Mm Long

219704408

$6.23

52

Hose 6 Mm 15000Mm Long

219704360

$104.62

53

Warning Decal

516005904

Unavailable

54

Fan

709200573

$241.51

55

Support

509000934

$37.66

75

-Coolant Tank

509000937

$86.89
