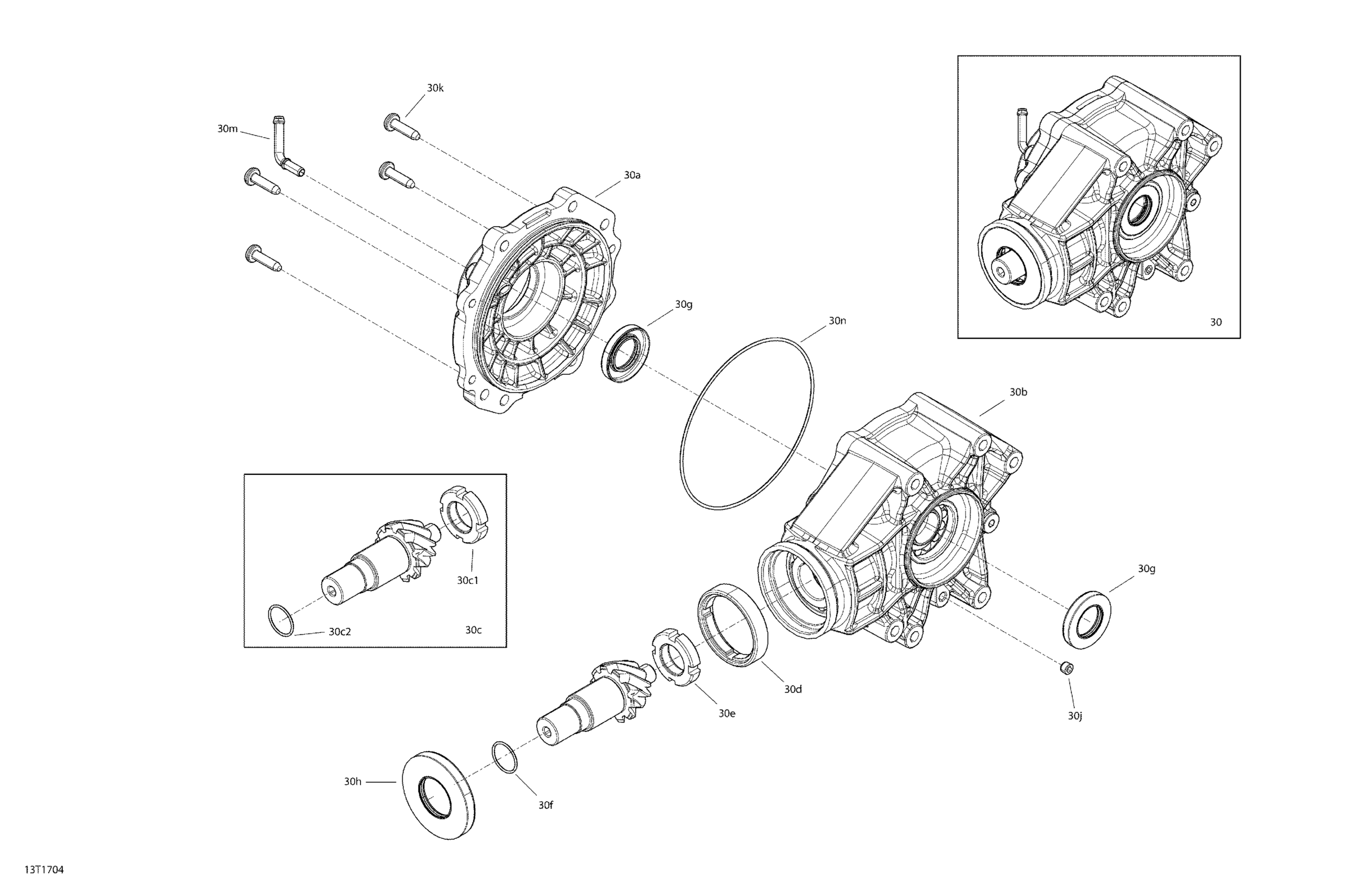

Can-Am Renegade, 2017 Drive, Rear Renegade - Rear Differential - Package XMR 1000R Diagram

Description

Price

Final Drive Unit

705502546

$1,144.99

30a

Rear Cover

705502547

$163.99

30b

Rear Pinion Cover

705502180

$291.49

30c

Differential Gear Kit

703500870

$339.99

30c1

Nut

705501550

$21.99

30c2

O-Ring

705501554

$5.03

30d

Nut

705501549

$32.99

30e

Nut

705501550

$21.99

30f

O-Ring

705501554

$5.03

30g

Oil Seal

705501556

$17.99

30h

Oil Seal

705501557

$19.49

30j

Plug Drain

705501724

$5.95

30k

Screw

705502063

$3.24

30m

Breather Tube

705501584

$14.99

30n

O-Ring

705501711

$10.54
