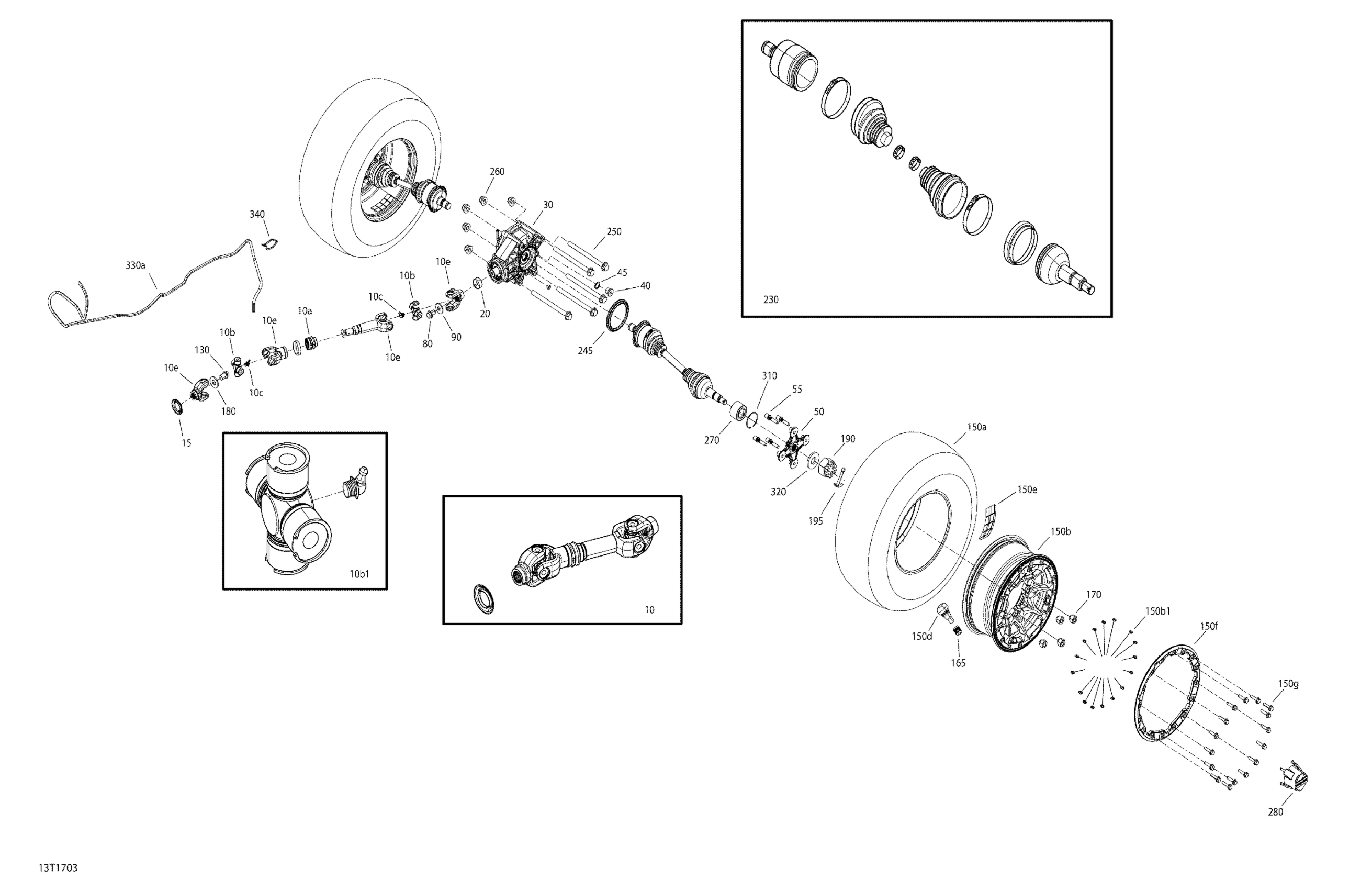

Can-Am Renegade, 2017 Drive, Rear Renegade - 850 Diagram

Shaft Ass'y Kit | XMR

703500990

$232.99

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$307.49

Rubber Boot

715900118

$14.30

Universal Joint Ass'y | T3

703500846

$59.49

Universal Joint

715900326

$68.99

Grease Fitting | T3

715900295

$5.24

Yoke

715900499

$24.99

Joint | T3

715900436

$24.99

Yoke

715900438

$24.99

Yoke | T3

715900500

$24.99

Spline Yoke

715900106

$41.49

Protector

705501123

$7.55

Protector

705501123

$7.55

Wear Ring | 4X4

705400036

$26.49

Final Drive Unit | Includes 30 to 30u

703501019

$932.49

Final Drive Unit

705502546

$1,144.99

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Wheel Hub

705501900

$132.49

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M12 X 16

250001039

$2.11

TIRE_30X9R14 - Call your local BRP dealership

705400962

Unavailable

Rear Tire | Europe & International

705500820

$164.99

Tire | North America

705500926

$164.99

Black, Rim | XXC

705502244

$265.99

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$206.49

Black Rim | Package XMR

705502237

$303.49

Insert | XXC

293450317

$7.29

Insert | XXC

293450317

$7.29

Rim Valve With Cap

705400193

$8.69

Rim Valve With Cap

705400193

$8.69

Rim Valve With Cap

705400193

$8.69

1/2 Oz Weight

219704465

$3.89

1/2 Oz Weight

219704465

$3.89

Blue Reinforcement Disk | Package XMR Blue

705401702

$92.99

Red, Reinforcement Disk | Package XMR Red

705401837

$92.99

Red, Reinforcement Disk | Package XXC Red Model

705401763

$83.99

Black, Reinforcement Disc | Package XTP Europe, T3

705401867

$83.99

Hex. Flange Screw M6 X 25

250000787

$2.22

Hex. Flange Screw M6 X 25

250000787

$2.22

Valve Cap

293000110

$1.59

Black, Wheel Nut M10 X 1.25

250100184

$4.51

Conical Spring Washer M12

250200005

$3.27

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

Performance CV Axle - Rear Right

705501848

$275.49

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

Performance CV Axle - Rear Left

705501847

$275.49

Wear Ring

705501124

$7.90

Hex. Flange Screw M10 X 135

250001041

$5.59

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Wheel Cap

705400928

$10.49

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65

Polyurethane Hose 10000Mm Long

219704410

$56.99

Tie Wrap 368 mm

293750008

$1.04
