08- Drive, Rear Renegade - 570

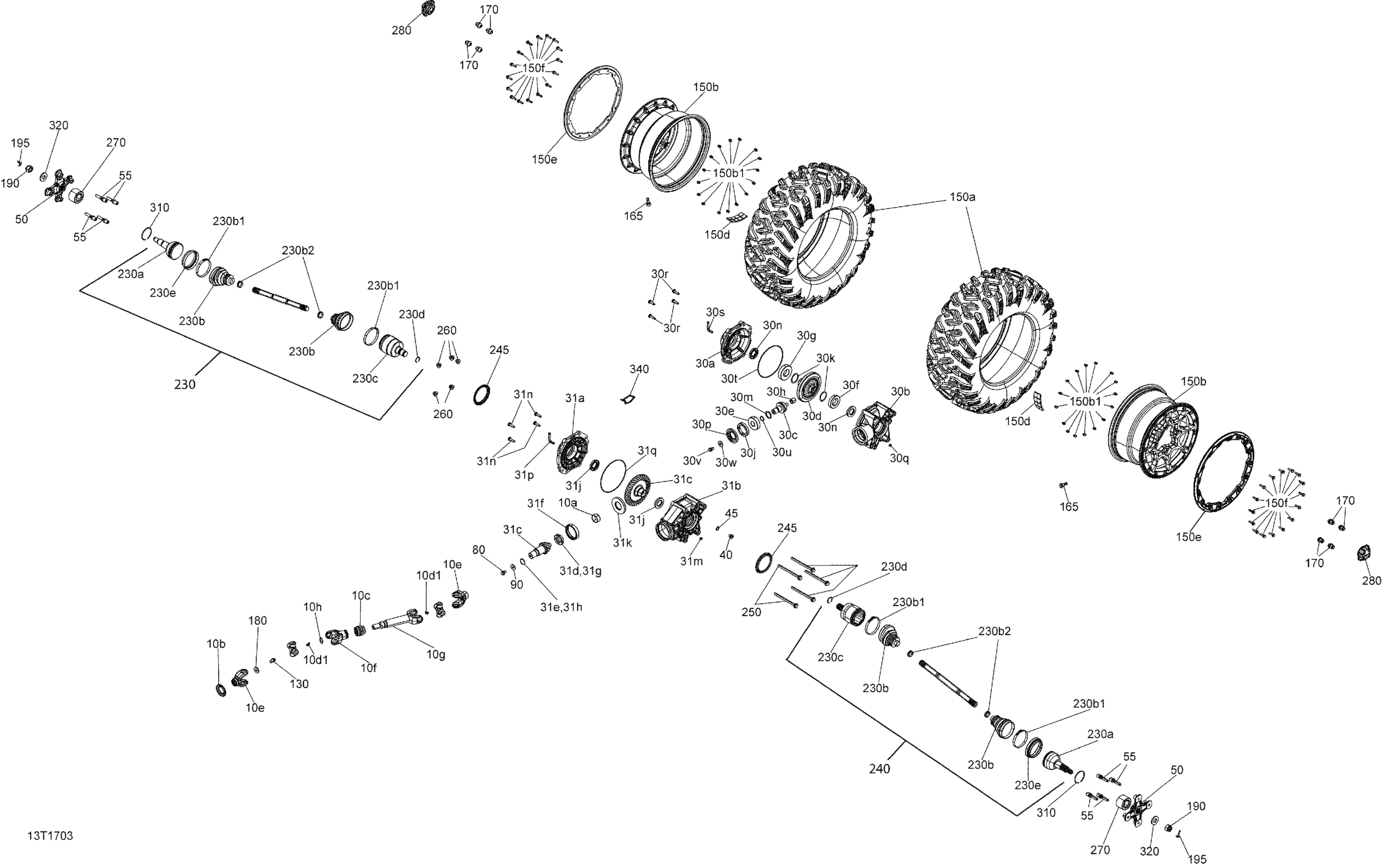

Can-Am Renegade, 2017 08- Drive, Rear Renegade - 570 Diagram
#
10
Shaft Ass'y Kit | Incldues 1 to 5
703500986
Unavailable
10
Shaft Ass'y Kit | XMR
703500990
Unavailable
10a
Rubber Boot
715900118
Unavailable
10b
Universal Joint
715900326
Unavailable
10b
Universal Joint Ass'y | T3
703500846
Unavailable
10c
Grease Fitting | T3
715900295
Unavailable
10d
Yoke
715900499
Unavailable
10e
Joint | T3
715900436
Unavailable
10h
Yoke
715900438
Unavailable
10j
Yoke | T3
715900500
Unavailable
15
Protector
705501123
Unavailable
20
Wear Ring | 4X4
705400036
Unavailable
30
Final Drive Unit | Includes 30 to 30u
703501019
Unavailable
40
Fill Level Plug | 4X4
705500504
Unavailable
45
Copper Washer | 4X4
705500506
Unavailable
50
Wheel Hub
705501900
Unavailable
55
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
80
Hex. Flange Screw M10 X 16 S.GRIP
250001044
Unavailable
90
Flat Washer M10 | 4X4
250200014
Unavailable
130
Hex Flange Screw M12 X 16
250001039
Unavailable
150a
Rear Tire | Europe & International
705500820
Unavailable
150a
Tire | North America
705500926
Unavailable
150a
Rear Tire
705501836
Unavailable
150b
Deep Black, 12 Inch Rim X 7,5 | STD
705501853
Unavailable
150b
Black, Rim | XXC
705502244
Unavailable
150b1
Insert | XXC
293450317
Unavailable
150d
Rim Valve With Cap
705400193
Unavailable
150e
1/2 Oz Weight
219704465
Unavailable
150f
Red, Reinforcement Disk | Package XXC Red Model
705401763
Unavailable
150f
Black, Reinforcement Disc | Package XTP Europe, T3
705401867
Unavailable
150g
Hex. Flange Screw M6 X 25
250000787
Unavailable
165
Valve Cap
293000110
Unavailable
170
Black, Wheel Nut M10 X 1.25
250100184
Unavailable
180
Conical Spring Washer M12
250200005
Unavailable
190
Hex. Flange Castellated Nut M18
232291413
Unavailable
195
Cotter Pin
250400071
Unavailable
230
RH Rear - Premium CV Axle | Includes 64a to 69a
705501486
Unavailable
230
Performance CV Axle - Rear Right
705501848
Unavailable
230a
CV Joint
705501776
Unavailable
230b
Boot Kit
705501864
Unavailable
230b1
Oetiker Clamp, 82.1 mm
715900241
Unavailable
230b2
Oetiker Clamp, 27.3 mm
715900242
Unavailable
230c
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
230d
Circlip
705501781
Unavailable
240
LH Rear - Premium CV Axle | Includes 58a to 63a
705501485
Unavailable
240
Performance CV Axle - Rear Left
705501847
Unavailable
245
Wear Ring
705501124
Unavailable
250
Hex. Flange Screw M10 X 135
250001041
Unavailable
260
Hex. Flange Elastic Nut M10
233201436
Unavailable
270
Ball Bearing
293350150
Unavailable
280
Wheel Cap
705400928
Unavailable
310
Circlip
293370019
Unavailable
320
Conical Spring Washer M18
250200171
Unavailable
330a
HOSE, POLYURETHANE - Call your local BRP dealership
415080200
Unavailable
340
Tie Wrap 368 mm
293750008
Unavailable
