02- Fuel System - All Models

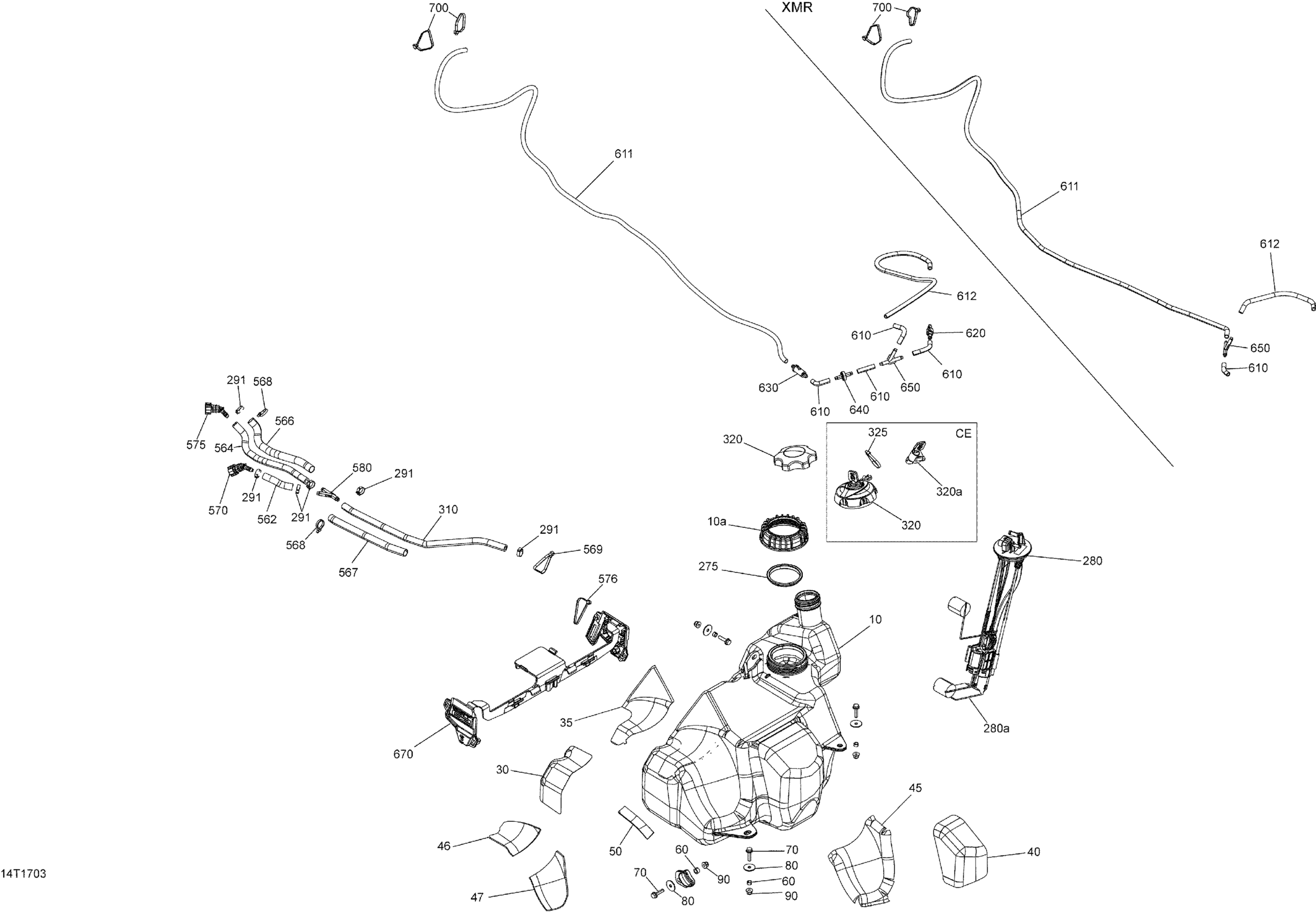

Can-Am Renegade, 2017 02- Fuel System - All Models Diagram
#
10>10a
Fuel Tank Ass'y | Includes 1 to 2
709000799
Unavailable
10a
Fuel Pump Module Nut
709000328
Unavailable
30
Heat Reflective Sheet
709000381
Unavailable
35
Heat Reflective Sheet
709000387
Unavailable
40
Heat Reflective Sheet
709001071
Unavailable
45
Heat Reflective Sheet
709000388
Unavailable
46
Heat shield
709000527
Unavailable
47
Heat shield
709000528
Unavailable
50
Rubber Pad
293830172
Unavailable
60
Bushing | DS 650 X
293900104
Unavailable
70
Hex. Flange Screw M6 X 25
207662544
Unavailable
80
Washer
224060251
Unavailable
90
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
275
Seal
709000208
Unavailable
280>280a
Fuel Pump
709000461
Unavailable
280>280a
Fuel Pump | Includes 10a to 10b
709001517
Unavailable
280a
Prefilter Fuel Pump Kit 86mm Long
715900322
Unavailable
280a
Fuel Pre-Filter Kit
709000389
Unavailable
291
Crimp Clamp, 15.3-706R
293650047
Unavailable
310
Was 709000163 Fuel Line
219704440
Unavailable
320
Fuel Tank Cap
513033025
Unavailable
320>320a
Lock Device Kit | Europe Model
707001750
Unavailable
320a
Padlock with Key
707000666
Unavailable
325
Tie-Rap 180 mm
414115200
Unavailable
562
Was 709000163 Fuel Line
219704440
Unavailable
564
Was 709000163 Fuel Line
219704440
Unavailable
566
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
567
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
568
Tie Wrap 142 mm
293750002
Unavailable
569
Tie-Rap 180 mm
414115200
Unavailable
570
Quick Fitting 45° Ass'y | Includes 34 to 35
709000627
Unavailable
575
Quick Fitting 45° Ass'y | Includes 34 to 35
709000627
Unavailable
576
Tie Wrap 368 mm
293750008
Unavailable
580
Y-Fitting, 5/16''
293710136
Unavailable
610
Polyurethane Hose 10000Mm Long
219704410
Unavailable
611
Polyurethane Hose 10000Mm Long
219704410
Unavailable
612
Polyurethane Hose 10000Mm Long
219704410
Unavailable
620
Check Valve
513033469
Unavailable
630
Filter
709000330
Unavailable
640
Check Valve
275500398
Unavailable
650
Y-Fitting
293710059
Unavailable
670
Hose Support Ass'y
709000359
Unavailable
700
Tie-Rap 180 mm
414115200
Unavailable
