01- Engine And Engine Support - XMR

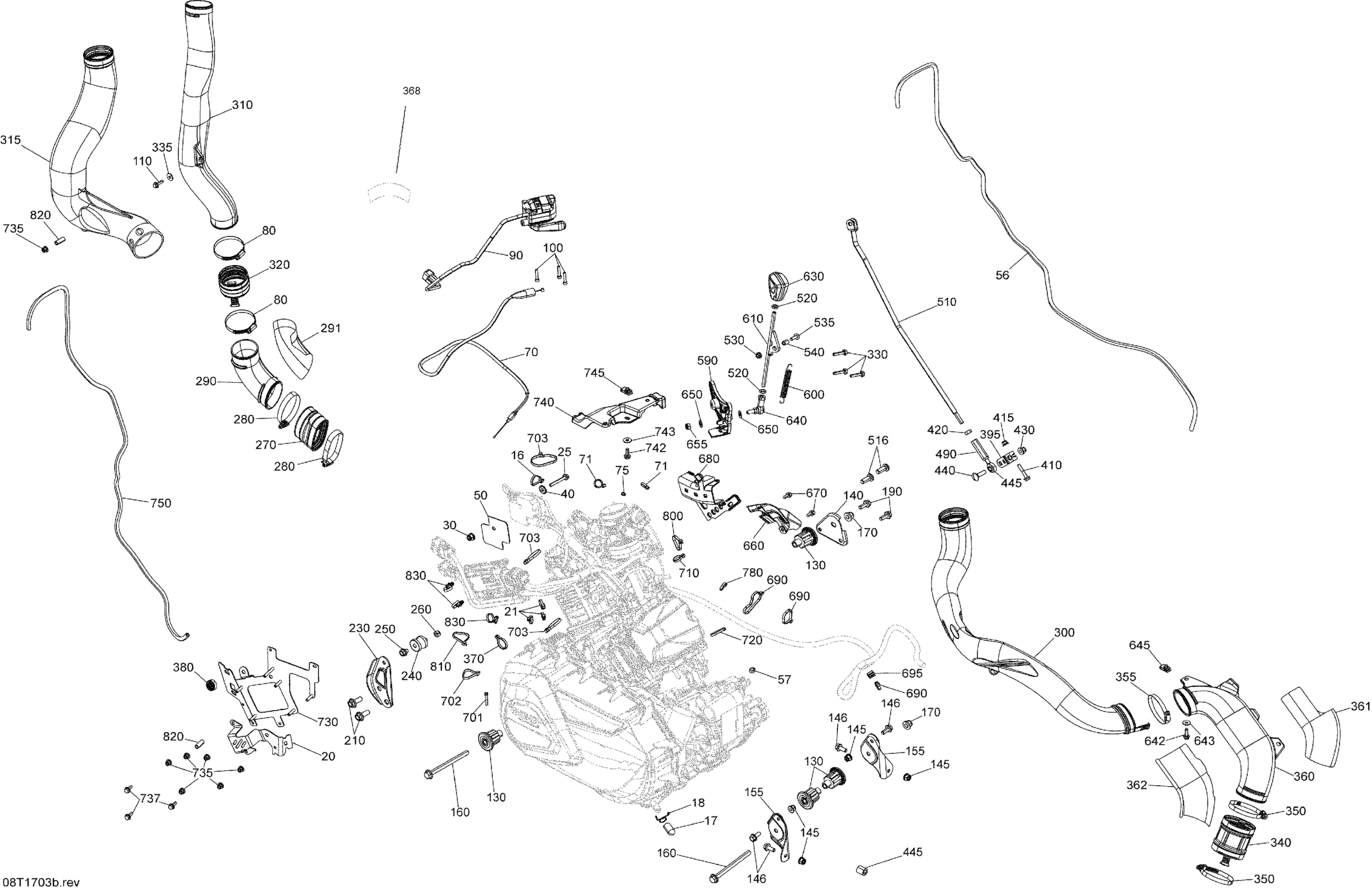

Can-Am Renegade, 2017 01- Engine And Engine Support - XMR Diagram
#
16
Tie-Rap 180 mm
414115200
Unavailable
17
Plug
707001185
Unavailable
18
Retainer Clip
707800506
Unavailable
20
Cover | Package XMR
707001563
Unavailable
21
Tie-Rap 180 mm
414115200
Unavailable
25
Hex. Flange Screw M6 X 50
207665044
Unavailable
30
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
40
External Serrated Lock Washer 6 mm
234461608
Unavailable
50
Insulator Pad
710000073
Unavailable
56
Polyurethane Hose 10000Mm Long
219704410
Unavailable
57
Clamp, Oetiker
293650195
Unavailable
70
Throttle Cable
707000955
Unavailable
71
Tie-Rap 180 mm
414115200
Unavailable
75
Cable Guide
707000434
Unavailable
80
Norma Clamp
293650091
Unavailable
90
Throttle Handle | 4X4
707000595
Unavailable
100
Socket Head Screw M5 X 25
205052588
Unavailable
110
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
130
Vibration Damper
707001169
Unavailable
140
Engine Support
707003319
Unavailable
145
Hex. Elastic Flange Nut M8
233281416
Unavailable
146
Hex. Flange Screw M8 X 20
207682046
Unavailable
150
LH Rear Engine Bracket
707001193
Unavailable
150
LH Rear Engine Bracket
707001191
Unavailable
155
RH Rear Engine Bracket
707001194
Unavailable
155
RH Rear Engine Bracket
707001192
Unavailable
160
Hex. Flange Screw M10 X 125
230602546
Unavailable
170
Hex. Flange Elastic Nut M10
233201436
Unavailable
190
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
210
Hex. Flange Screw M10 X 25
207602544
Unavailable
230
Upper Engine Bracket
707001256
Unavailable
230
Upper Engine Support
707003326
Unavailable
240
Rubber Isolator
707000949
Unavailable
250
Flange Screw M8 x 10, Scotch Grip
207581046
Unavailable
260
Hex. Elastic Stop Nut M8
232581414
Unavailable
270
Flexibale Adaptor
707002585
Unavailable
280
Norma Clamp
293650091
Unavailable
290
CVT Air Inlet
707001087
Unavailable
291
Heat Shield
707001654
Unavailable
300
CVT Air Outlet | Package XMR
707001780
Unavailable
310
CVT Air Inlet
707001778
Unavailable
315
Inferior CVT Air Outlet | Package XMR
707001781
Unavailable
320
Adaptor
707001274
Unavailable
330
Hex. Flange Screw M6 X 25
207562544
Unavailable
335
Flat Washer M6, Stainless
234062600
Unavailable
340
CVT Air Outlet Adaptor
707001168
Unavailable
350
Norma Gear Clamp
293650118
Unavailable
355
Norma Clamp
293650091
Unavailable
360
Air Outlet
706600019
Unavailable
361
Heat Shield
707001205
Unavailable
362
Heat Shield
707001206
Unavailable
368
Heat Shield
707002092
Unavailable
370
Tie Wrap 142 mm
293750002
Unavailable
380
Rubber Stopper
708000506
Unavailable
395
Lever
707000911
Unavailable
410
Hex. Flange Screw M6 X 35
207663544
Unavailable
415
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
420
Hex. Nut M8, LH Threads
250100144
Unavailable
430
Hex. Flange Elastic Nut M8
233281414
Unavailable
440
Carriage Bolt M8 X 50 | DS 650 X
207785044
Unavailable
440
Carriage Bolt M8 X 30
207783044
Unavailable
445
Bushing
293900106
Unavailable
490
Ball Joint Ass'y | Includes 55 to 56
707000966
Unavailable
510
Shifter Rod
707002085
Unavailable
510
Shifter Rod
707002068
Unavailable
516
Screw Socket M10 X 25 | Europe
205402556
Unavailable
520
Hex. Jam Nut M8
232180600
Unavailable
530
Hex. Flange Nut M6
233161414
Unavailable
535
Torx Screw M6 X 20, Scotch Grip
250000446
Unavailable
540
Bushing
293900019
Unavailable
590
Lever Support
707003054
Unavailable
600
Spring
707000577
Unavailable
610
Shift Arm | Except Europe
707000840
Unavailable
630
Lever Trim
707003211
Unavailable
640
RH Ball Joint
707001959
Unavailable
650
Washer
506151252
Unavailable
655
Hex. Elastic Stop Nut M8
232581414
Unavailable
660
Cover OPS
707000410
Unavailable
670
Hex. Flange Screw M6 X 12
210261250
Unavailable
680
Upper Cable Support
707001955
Unavailable
690
Tie-Rap 180 mm
414115200
Unavailable
695
Tie-Rap Clip
710002896
Unavailable
701
Tie-Rap 180 mm
414115200
Unavailable
702
Tie-Rap 180 mm
414115200
Unavailable
703
Tie-Rap 180 mm
414115200
Unavailable
710
Tie-Rap 180 mm
414115200
Unavailable
720
Tie Wrap 142 mm
293750002
Unavailable
730
Module Support
707001743
Unavailable
735
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
737
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
740
Air Outlet Support
707001262
Unavailable
742
Hex. Flange Screw M6 X 20
207662044
Unavailable
743
Flat Washer 6 mm
234062410
Unavailable
745
Panel Nut M6 X 1.0
250100198
Unavailable
750
Polyurethane Hose 10000Mm Long
219704410
Unavailable
780
Tie-Rap 180 mm
414115200
Unavailable
800
Tie-Rap 180 mm
414115200
Unavailable
810
Tie-Rap 180 mm
414115200
Unavailable
820
Spacer
708300736
Unavailable
830
Dart Tie Rap 200MM
710003168
Unavailable
