01- Cooling System - All Models

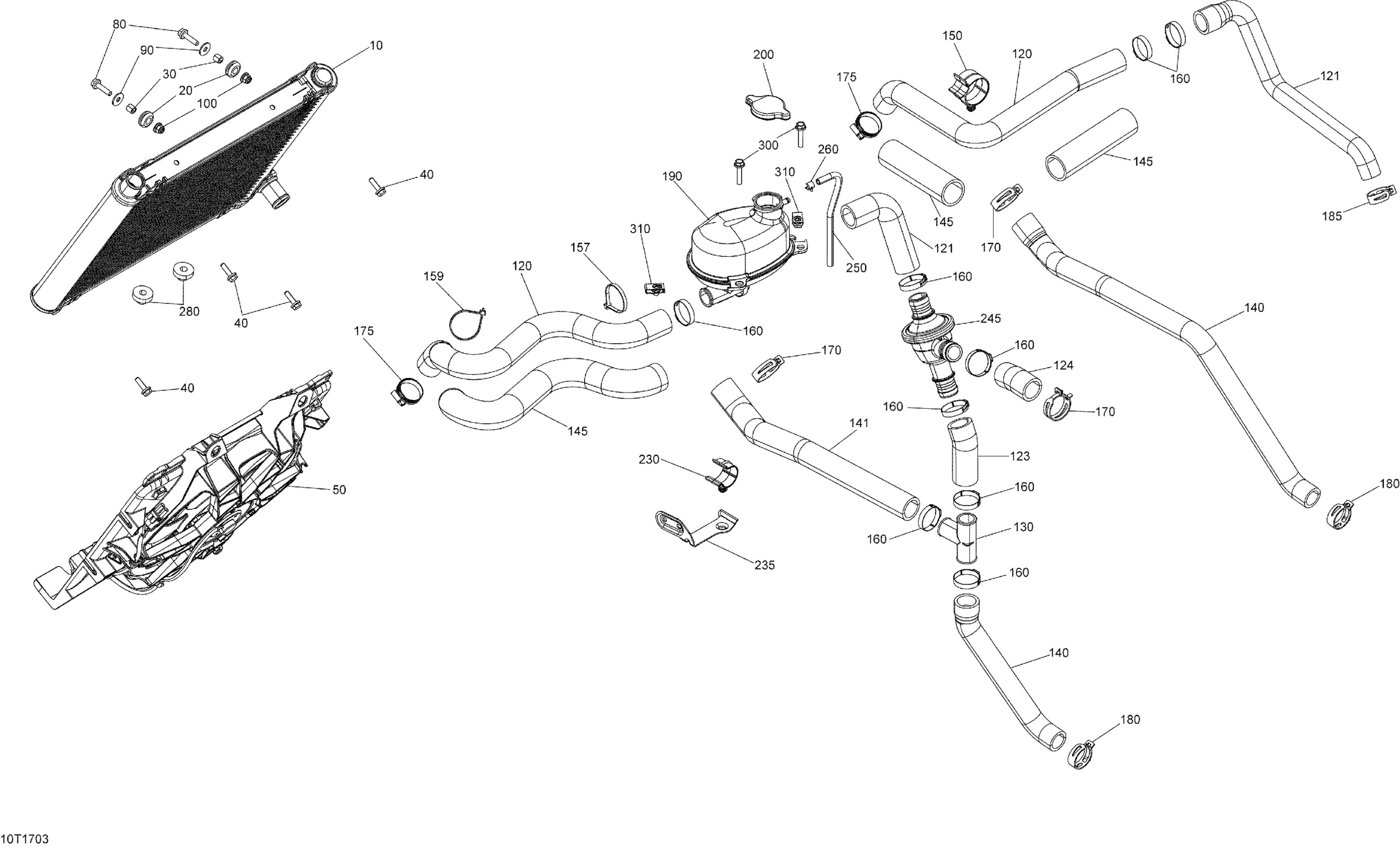

Can-Am Renegade, 2017 01- Cooling System - All Models Diagram
#
10
Radiator
709200286
Unavailable
20
Grommet
709000582
Unavailable
30
Bushing
293900105
Unavailable
40
Hex. Flange Screw M6 X 20
207662034
Unavailable
50
Fan Ass'y
709200563
Unavailable
50
Fan Ass'y
709200564
Unavailable
80
Hex. Flange Screw M6 X 25
207662534
Unavailable
90
Flat Washer
250200082
Unavailable
100
Flange Elastic Nut M6
233261434
Unavailable
120
Radiator Inlet Hose
709200278
Unavailable
120
Inlet Hose
709200575
Unavailable
121
Engine Outlet Hose
709200310
Unavailable
121
Thermostat Inlet Hose | Engine 850-1000R
709200785
Unavailable
123
Cylinder Hose | Engine 850-1000R
709200629
Unavailable
124
Cylinder Hose | Engine 850-1000R
709200630
Unavailable
130
T-Fitting
509000219
Unavailable
140
Outlet Hose | Engine 850-1000R
709200787
Unavailable
140
Radiator Outlet Hose | Engine 570
709200792
Unavailable
141
Radiator Outlet Hose | Engine 850-1000R
709200786
Unavailable
145
Tubing 35 MM 1000MM Long
219704428
Unavailable
150
Retainer
275500590
Unavailable
157
Tie-Rap 180 mm
414115200
Unavailable
159
Tie-Rap 180 mm
414115200
Unavailable
160
Gear Clamp
509000162
Unavailable
170
Norma Spring Clamp
293650166
Unavailable
175
Norma Gear Clamp
293650098
Unavailable
180
Norma Spring Clamp
293650108
Unavailable
185
Norma Spring Clamp
293650109
Unavailable
190
Coolant Tank
709200297
Unavailable
200
Radiator Pressure Cap
709200207
Unavailable
230
Retainer
275500526
Unavailable
235
Hose Support
709200641
Unavailable
245
Thermostat
709200406
Unavailable
250
Polyurethane Hose 10000Mm Long
219704410
Unavailable
260
Spring Clamp
414554800
Unavailable
280
Grommet
709200285
Unavailable
300
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
310
Panel Nut M6 X 1.0
250100198
Unavailable
