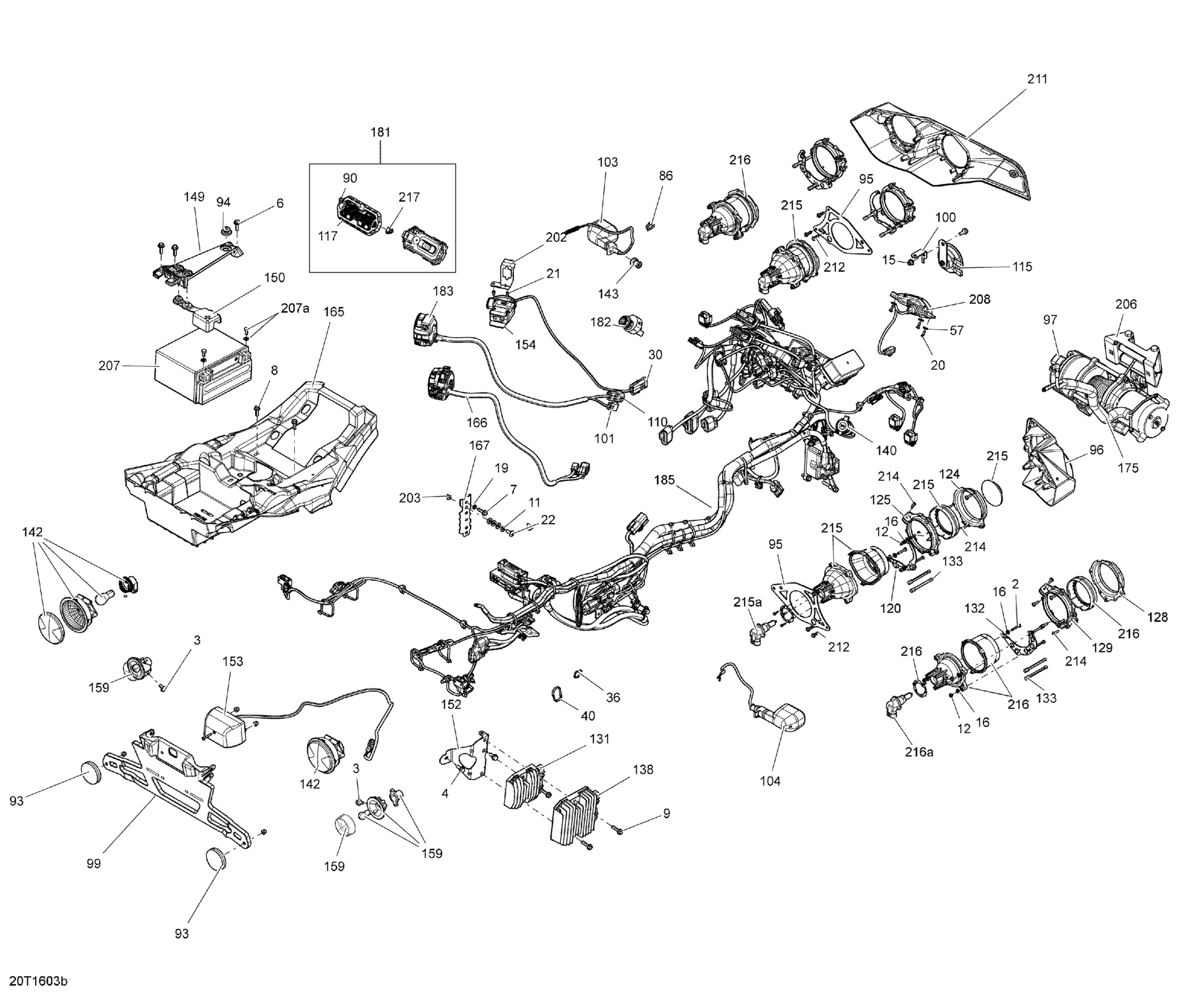

Can-Am Renegade, 2016 10- Electrical System Diagram

Socket Head Screw M6 X 20, Scotch Grip

205562044

Unavailable

Hex. Screw M4 X 25

207142544

Unavailable

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

Hex. Flange Screw M6 X 20

207662054

Unavailable

Hex. Flange Screw M6 X 20

210262040

Unavailable

Hexagonal Head Screw

210262050

Unavailable

Hex. Flange Forming Screw M6 X 25

210262550

Unavailable

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

Unavailable

Flat Washer

224061121

Unavailable

Elastic Stop Nut M4

232541414

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

Flat Washer M5

234051410

Unavailable

Lock Washer Helical M6

234161601

Unavailable

External Serrated Lock Washer 6 mm

234461608

Unavailable

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

Unavailable

Torx Head Screw M6 X 16

250000717

Unavailable

Clevis Pin

250400021

Unavailable

Cotter Pin

250400022

Unavailable

Clip

270000141

Unavailable

Wire Seal

278000216

Unavailable

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

Tie Wrap 94 mm | 4X4

293750001

Unavailable

Tie Wrap 142 mm

293750002

Unavailable

Tie Wrap 368 mm

293750008

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

Tie-rap 627 mm

293750041

Unavailable

Rubber Bumper

293830005

Unavailable

Sleeve

293900078

Unavailable

Pop Rivet 3/16"

390402300

Unavailable

Washer | DS 650 X

391301600

Unavailable

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Tie-Rap 180 mm

414115200

Unavailable

Clip

414227300

Unavailable

Washer

503175800

Unavailable

Spacer

517203200

Unavailable

BRP Logo13 mm

704904615

Unavailable

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

Winch Hook Kit

705014949

Unavailable

Red Reflector

705011221

Unavailable

Stopper Rubber

705014429

Unavailable

Painted Headlamp Support

705004309

Unavailable

RH Front Facia

705004509

Unavailable

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Plate Support | Europe

708300553

Unavailable

SUPPORT - Call your local BRP dealership

709200284

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

Flasher Bulb | Europe Models

710000662

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

Flasher Bulb | Europe Models

710000662

Unavailable

Black, Electronic Key

710000817

Unavailable

Connector Ass'y | STD / Includes 7 to 10

710000917

Unavailable

Horn

710004791

Unavailable

Clip

710000992

Unavailable

Trim Ring Ass'y

710001183

Unavailable

Winch Solenoid | XT Models

710001000

Unavailable

LH Low Light Support

710001037

Unavailable

RH Low Light Support

710001094

Unavailable

LH Low Front Housing

710001083

Unavailable

RH Low Front Housing

710001081

Unavailable

LH Low Rear Housing

710001084

Unavailable

RH Low Rear Housing

710001082

Unavailable

LH High Front Housing

710001087

Unavailable

RH High Front Housing

710001085

Unavailable

LH High Rear Housing

710001088

Unavailable

RH High Rear Housing

710001086

Unavailable

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

Unavailable

Voltage Regulator | XT, XTP, LTD

710001191

Unavailable

LH High Light Support

710001036

Unavailable

RH High Light Support

710001115

Unavailable

Setting Screw

710001147

Unavailable

DC Outlet

710001248

Unavailable

Starter Relay

710007777

Unavailable

Tail Light Ass'y | Includes 32 to 33

710001645

Unavailable

Bulb

520000758

Unavailable

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

Grey, Electronic Key

710002183

Unavailable

Fixation Plate

710002404

Unavailable

Battery Cable Cap

710006729

Unavailable

Rectifier Support

710002587

Unavailable

License Plate Light | Europe

710005563

Unavailable

Winch Switch | XT, XTP, XMR, LTD,

710002724

Unavailable

Tie-Rap Clip

710002896

Unavailable

Flasher | Europe

710002964

Unavailable

Housing

710003006

Unavailable

Flasher Unit

710003239

Unavailable

Protective Tubing

710003260

Unavailable

Battery Support

710006561

Unavailable

Multi-Function Handle

710004040

Unavailable

Connector Bracket

710004118

Unavailable

Brake Harness | Includes 1 to FRV2

710004324

Unavailable

Connector Ass'y

710004375

Unavailable

Positive Cable

710004376

Unavailable

Positive Cable

710004377

Unavailable

Winch Cables

710004378

Unavailable

NEGATIVE HARNESS - Call your local BRP dealership | Package Hunter

710004379

Unavailable

Ground Cable

710004382

Unavailable

Speedometer

710005087

Unavailable

Ignition Switch

710008400

Unavailable

Switch_Ignition | Model-Europe

710007865

Unavailable

Multi-Function Handle | Package STD Except Europe Model

710004618

Unavailable

Multi-Function Handle | Except Model-Europe

710004617

Unavailable

Main Harness

710005005

Unavailable

Main Harness Ass'y

710004680

Unavailable

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

Unavailable

Domed Nut M6

232361493

Unavailable

Fairlead_Roller Kit

715007699

Unavailable

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

Unavailable

Battery Bolt Kit

250000282

Unavailable

Day Light

710001042

Unavailable

Bulb

520000758

Unavailable

LH Front Facia

705004508

Unavailable

Hex. Flange Screw K50 X 2.24 X 16

241151640

Unavailable

Light Harness

710005944

Unavailable

Phillips Screw K40 X 16

250000723

Unavailable

Low Beam Ass'y | Includes 1 to 2

710002524

Unavailable

Halogen Bulb

415129249

Unavailable

High Beam Ass'y | Includes 11 to 12

710002525

Unavailable

Halogen Bulb

415129249

Unavailable

Button

715900265

Unavailable

Torx Truss Screw M8 X 16

250000746

Unavailable
