10- Electrical Harness - Europe

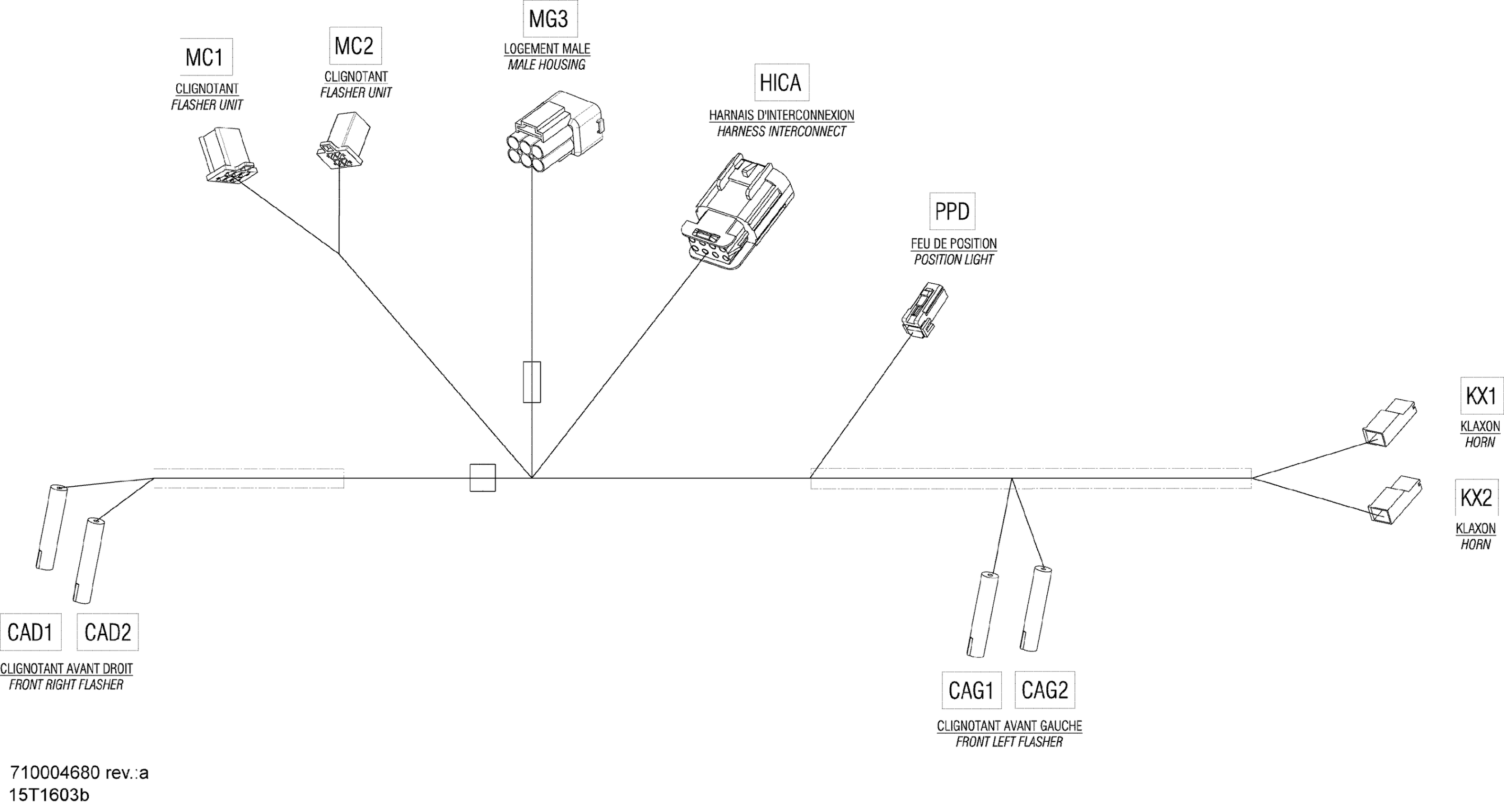

Can-Am Renegade, 2016 10- Electrical Harness - Europe Diagram
#
1
Main Harness Ass'y
710004680
Unavailable
CAD1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
CAD1
Insulated Sheath
278001007
Unavailable
CAD1
Female Terminal
710000421
Unavailable
CAD2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
CAD2
Insulated Sheath
278001007
Unavailable
CAD2
Female Terminal
710000421
Unavailable
CAG1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
CAG1
Insulated Sheath
278001007
Unavailable
CAG1
Female Terminal
710000421
Unavailable
CAG2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
CAG2
Insulated Sheath
278001007
Unavailable
CAG2
Female Terminal
710000421
Unavailable
D10
Diode
409012700
Unavailable
HICA
Housing
710001927
Unavailable
HICA
Cap
710001225
Unavailable
HICA
Seal
710001233
Unavailable
HICA
Terminal
710001224
Unavailable
KX1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
KX1
Female Terminal Housing, 1 Circuit
409010400
Unavailable
KX1
Female Terminal
409010100
Unavailable
KX2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
KX2
Female Terminal Housing, 1 Circuit
409010400
Unavailable
KX2
Female Terminal
409010100
Unavailable
MC1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
MC1
Housing
710002314
Unavailable
MC1
Terminal
710002315
Unavailable
MC2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
MC2
Housing
710002313
Unavailable
MC2
Terminal
710002315
Unavailable
MG3
Male Housing Terminal, 6 Circuits
710001446
Unavailable
MG3
Cap
710000080
Unavailable
MG3
Wire Seal
710000402
Unavailable
MG3
Male Terminal
409011300
Unavailable
PPD
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
PPD
Female Housing, 2 Circuits
515175658
Unavailable
PPD
Female Terminal
515175231
Unavailable
R1
Resistor
710002674
Unavailable
