09- Rear Cargo Box

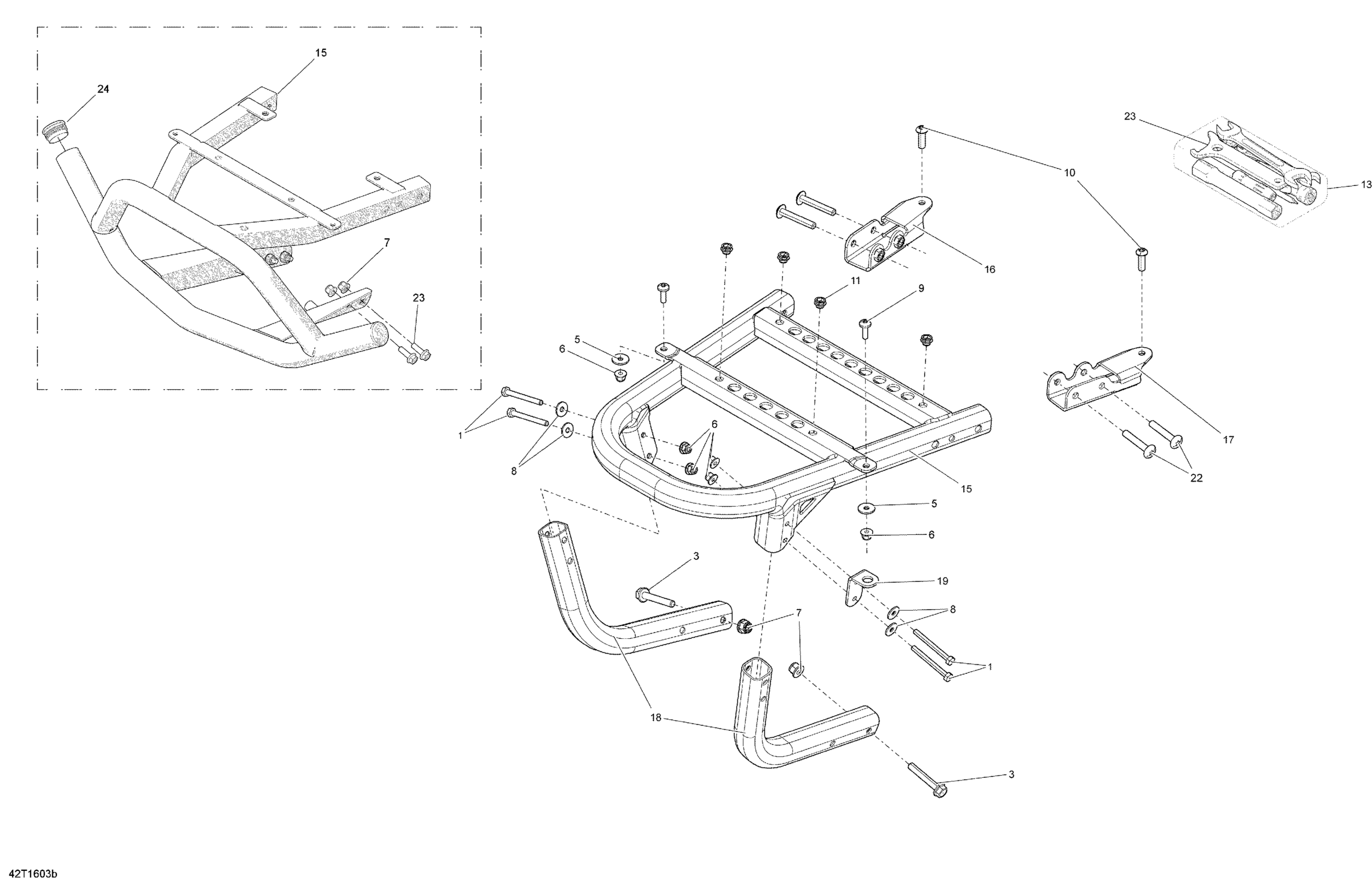

Can-Am Renegade, 2016 09- Rear Cargo Box Diagram
#
Description
Price
1
Hex. Screw M6 X 60
207066044
Unavailable
3
Hex. Flange Screw M8 X 50
207685044
Unavailable
5
Flat Washer
224061201
Unavailable
6
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
Flat Washer 6 mm
234062410
Unavailable
9
Torx Screw M6 X 20
250000712
Unavailable
10
Button Head Torx Screw M8 X 25 S.Gr
250000757
Unavailable
11
Threaded Insert M6 X 1.0
250100242
Unavailable
13
Tool Kit
704700162
Unavailable
15
Kit Rear Bumper
715001894
Unavailable
15
Blue Rear Bumper | Package XMR Blue
705009740
Unavailable
15
Red Rear Bumper | Package XMR Red
705010641
Unavailable
16
LH Front Bracket
705004977
Unavailable
17
RH Front Bracket
705004978
Unavailable
18
Rear Tube
705004981
Unavailable
19
Flag Support | Except Europe
705005837
Unavailable
22
Torx Screw M8 X 50 S.GRIP
250000844
Unavailable
23
Hex. Flange Screw M8 X 25
207682544
Unavailable
24
Cap
705202455
Unavailable
