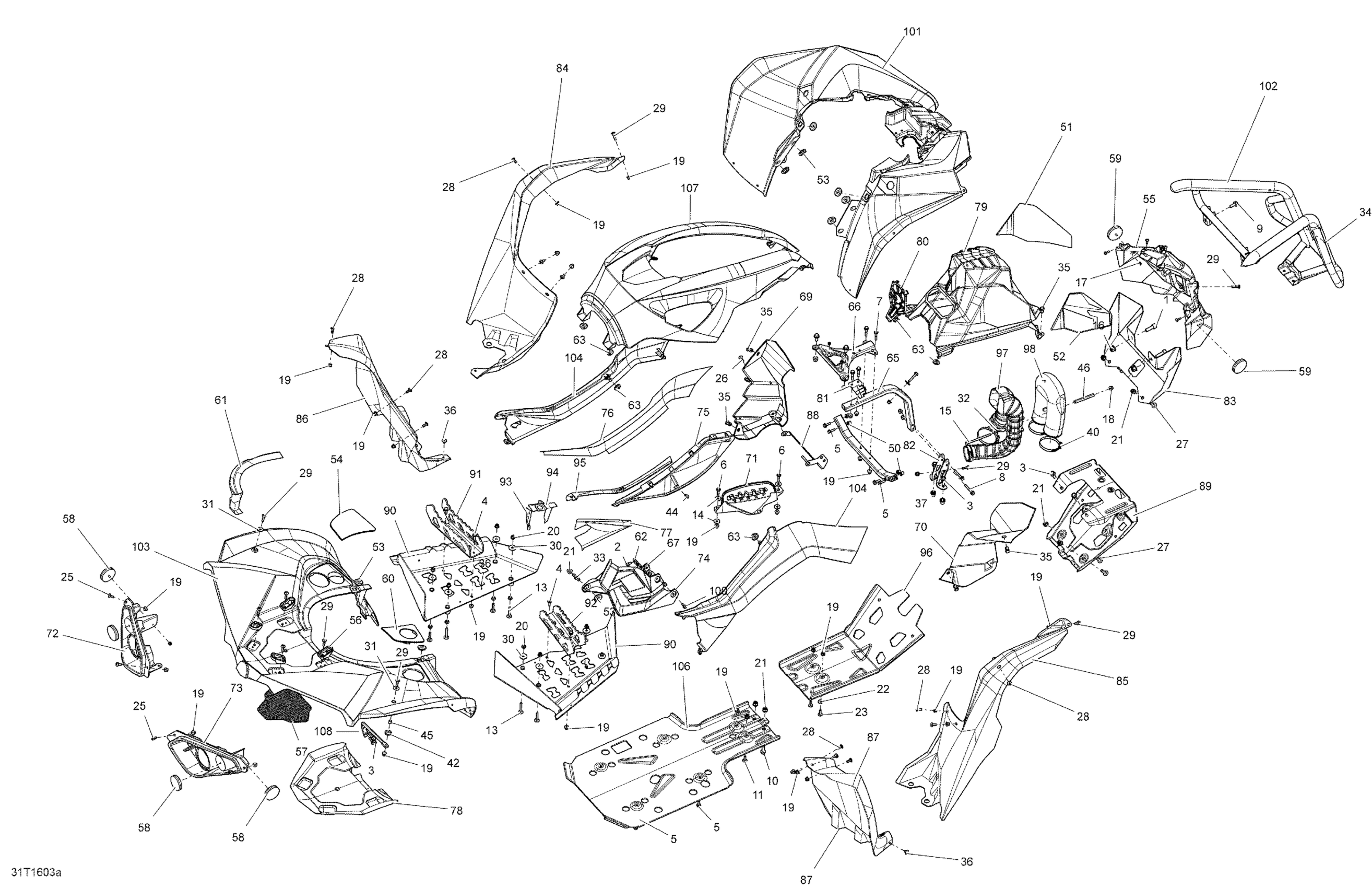

Can-Am Renegade, 2016 Body and Accessories - XMR Diagram

Socket Screw M10 x 30 | XT

205003044

$2.61

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

Hex. Flange Screw M6 X 20

207662034

$1.74

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Hex. Flange Screw M6 X 35

207663544

$0.74

Hex. Flange Screw M6 X 45

207664544

$1.07

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 25

207682534

$1.03

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

Carriage Bolt M6 X 35

207763554

$1.70

Carriage Bolt M6 X 45

207764550

$4.82

Flat Washer

224061201

$1.11

Hex. Screw M6 X 100

230060060

$6.08

Hex. Flange Elastic Nut M10

233201434

$1.63

Flange Elastic Nut M5

233251434

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M6

233261494

$1.26

Hex. Flange Elastic Nut M8

233281434

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw M6 X 20

250000712

$1.74

Torx Screw K50 X 16

250000720

$1.39

Torx Truss Screw M6 X 16

250000721

$1.39

Torx Screw M6 X 20

250000722

$1.34

Hex Torx Truss M8 X30

250000745

$2.96

Torx Screw M6 X 16

250000755

$0.72

Torx Screw M6 X 25

250000758

$1.74

Washer M6

250200029

$1.78

Flat Washer

250200040

$1.76

Flat Washer M6

250200115

$2.72

Ball Head Stud

250300039

$6.15

Plug

293000121

$2.96

Tuflok Plastic Rivet

293150230

$1.21

Pop Rivet 3/16”

293150092

$2.82

Insert Half Hex Body M8 x 1.25

293450307

$1.97

Norma Clamp

293650077

$6.11

Norma Clamp

293650091

$4.46

Grommet

709000582

$4.25

Tie Wrap 368 mm

293750008

$0.85

Rubber Bumper

293830005

$5.33

Bushing

293900105

$6.07

Bushing

293900122

$14.27

Pop Rivet 3/16"

390402400

$0.25

Tie-Rap 180 mm

414115200

$0.09

Clip

414479100

$1.81

Insert

293450275

$9.89

LH HOOD DECAL - Call your local BRP dealership | Model Blue

704905131

Unavailable

CAN-AM RED LH HOOD DECAL - Call your local BRP dealership | Model Red

704905568

$47.73

RH Hood Decal | Model Blue

704905132

$32.06

RH Hood Decal | Model Red

704905569

$52.21

Oval Washer

705000321

$4.64

LH Rear Body Panel Cap

705017923

$12.30

Front Facia

705010673

$65.64

Hook

705017925

$14.90

Rear Carpet

705002343

$16.39

Red Reflector

705011221

$11.96

Amber Reflector | Except Europe Model

705011222

$11.96

RH Rear Body Panel Cap

705017924

$14.27

Reflective Sheet

705002451

$8.66

Engine Cover Support

705011461

$8.24

Grommet

705003264

$3.43

Bent Sectional Tube

705016093

$91.76

Front Bent Sectional Tube

705016094

$91.76

Bracket

705003599

$21.61

Engine Cover Support

705003646

$7.21

Oblong Grommet

705003668

$4.54

LH INNER FENDER - Call your local BRP dealership

705004307

Unavailable

RH INNER FENDER - Call your local BRP dealership

705004308

Unavailable

Lever Indicator | 1000

705004416

$15.64

LH Rear Facia | North America, International

705004731

$16.39

RH Rear Facia | North America, International

705004732

$16.39

Engine Cover

705004966

$12.85

Panel Extension

705004988

$13.84

Reflective Sheet

705005620

$11.51

Reflective Sheet | Outlander

705005622

$3.81

Reflective Sheet

705005840

$7.67

Hood XMR

705009685

$83.55

Prefilter Screen

705010922

$20.01

Fuse Bracket

705009695

$32.06

Support

705009706

$43.25

Front Facia

705009707

$108.18

Mudguard

705009736

$120.87

RH Front Mudguard

705009737

$120.87

Mudguard

705009738

$120.87

Mudguard

705009739

$120.87

LH Bracket Ass'y

705010024

$47.73

Skid Plate

705009684

$292.51

Deep Black, RH Footrest -SB

705017261

$295.49

Deep Black, LH Footrest

705016588

$295.49

LH Foot Rest

705010493

$105.94

RH Foot Rest

705010499

$105.94

Heat Shield

705010557

$8.66

Heat Shield

705010558

$8.66

Heat Shield

705010559

$8.66

Front Skid Plate | Package Hunter

705205019

$165.64

Upper Air Inlet

707001779

$76.84

Upper Air Outlet

707001782

$49.22

Dart Tie Rap 200MM

710003168

$5.72

Hex. Flange Screw M6 X 12

210261250

$1.56

Black Front Fender | Model North America

715003160

$525.34

Black Front Fender | Model International

715003163

$525.34

BUMPER F - Call your local BRP dealership | Model Blue

705010097

Unavailable

Red Front Bumper | Model Red

705010632

$259.67

Black Rear Fender | Model North America

715003171

$414.90

Black Rear Fender | Model International

715003173

$414.90

Hyper Silver, LH Body Panel

705011990

$264.90

Hyper Silver, RH Body Panel

705011991

$264.90

Central Skid Plate | Package-XXC

705204031

$159.67

Hyper Silver Central Panel | Model North America

715003180

$344.75

Hyper Silver Central Panel | Model International

715003182

$282.81

LH Fender Support

705010314

$46.24

RH Fender Support

705010315

$46.24
