Description

Price

10

Protective Plate Kit

715002374

Unavailable

10

Central Skid Plate | Package-XXC

705204031

Unavailable

14a

Square Nut M6

232862412

Unavailable

15

Skid Plate | XXC

705007820

Unavailable

15a

Square Nut M6

232862412

Unavailable

20

Hex. Flange Screw M6 X 20

207662054

Unavailable

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

26

Torx Screw M6 X 20

250000712

Unavailable

27

Stainless Steel Flat Washer

234062670

Unavailable

30

Flange Elastic Nut M6

233261434

Unavailable

35

Hex. Flange Elastic Nut M8

233281434

Unavailable

37

Hex. Flange Screw M8 X 25

207682534

Unavailable

40

Bumper Support

705003505

Unavailable

60

Hex. Flange Elastic Nut M8

233281434

Unavailable

65

Threaded Insert M6 X 1.0

250100242

Unavailable

67

Torx Screw M8 X 20, Scotch Grip

250000740

Unavailable

70

LH Footboard

705004176

Unavailable

70

RH Footboard

705004177

Unavailable

85

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

90

Carriage Bolt M6 X 30

207763044

Unavailable

95

Ball Head Stud

250300039

Unavailable

100

Flat Washer 6 mm

234062410

Unavailable

110

LH Footboard/Fender

705004730

Unavailable

110

RH Footboard/Fender

705004729

Unavailable

125

Footrest

705002326

Unavailable

130

Hex. Flange Screw M6 X 16

207661654

Unavailable

145

Oval Washer

705000321

Unavailable

150

Engine Cover Support

705011461

Unavailable

160

Engine Cover Support

705003646

Unavailable

165

Hex. Flange Screw M6 X 12

210261250

Unavailable

190

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

200

Lever Indicator

705003838

Unavailable

200

Lever Indicator | 1000

705004416

Unavailable

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

230

Flat Washer

224061201

Unavailable

250

Front Facia

705003948

Unavailable

260

Deep Black Front Fender Kit | Xxc Model

715002154

Unavailable

260

Deep Black Front Fender Kit | Model-XXC Europe

715002155

Unavailable

260

BLACK FRONT FENDER KIT - Call your local BRP dealership | Package-XXC Digital Camo North America

715002550

Unavailable

260

BLACK FRONT FENDER KIT - Call your local BRP dealership | Package-XXC Digital Camo Europe

715002570

Unavailable

260

Red Front Fender Kit | Package STD, North America Model

715003158

Unavailable

260

FRONT FENDER KIT - Call your local BRP dealership | Package STD, Europe-International Model

715003164

Unavailable

280

Front Bumper

705011635

Unavailable

285

Hex. Flange Screw M6 X 25

207662554

Unavailable

300

Dashboard

705003556

Unavailable

315

Bracket

705003599

Unavailable

320

Front Bent Sectional Tube

705016094

Unavailable

325

Support

705002282

Unavailable

330

Bent Sectional Tube

705016093

Unavailable

370

Hex. Flange Screw M6 X 35

207663544

Unavailable

390

Insert

293450275

Unavailable

400

Torx Screw M6 x 25

250000284

Unavailable

410

Fuse Holder

710002482

Unavailable

415

Pop Rivet 3/16"

390402400

Unavailable

420

Hex. Flange Screw M8 X 25

207682534

Unavailable

430

Hex. Flange Screw M6 X 45

207664544

Unavailable

450

Hex. Flange Screw M6 X 50

207665044

Unavailable

460

Spacer

705005809

Unavailable

480

LH Grille

705008137

Unavailable

485

RH Grille

705008138

Unavailable

490

REAR FENDER KIT - Call your local BRP dealership | Xxc Model North America

715001887

Unavailable

490

Deep Black Rear Fender Kit | Model-XXC International

715002164

Unavailable

490

Black Rear Fender Kit | Model-XXC Europe

715002165

Unavailable

490

Black Rear Fender Kit | Package-XXC Digital Camo North America

715002572

Unavailable

490

Black Rear Fender Kit | Package-XXC Digital Camo International

715002574

Unavailable

490

REAR FENDER KIT - Call your local BRP dealership | Package-XXC Digital Camo Europe

715002575

Unavailable

490

Red Rear Fender Kit | Package STD, North America Model

715003166

Unavailable

490

REAR FENDER KIT - Call your local BRP dealership | Package STD, Europe Model

715003168

Unavailable

490

REAR FENDER ASS'Y - Call your local BRP dealership | Package STD, International Model

715003170

Unavailable

495

Reflective Sheet

705005840

Unavailable

505

Torx Screw K50 X 16

250000720

Unavailable

510

LH Rear Facia | North America, International

705004731

Unavailable

510

LH Rear Facia | Europe

705004927

Unavailable

510

RH Rear Facia | North America, International

705004732

Unavailable

510

RH Rear Facia | Europe

705004926

Unavailable

530

Red Reflector

705011221

Unavailable

535

Amber Reflector | Except Europe Model

705011222

Unavailable

540

Flange Elastic Nut M5

233251434

Unavailable

575

Oblong Grommet

705003668

Unavailable

600

Front Bumper Plate

705004850

Unavailable

620

Hex. Flange Screw M8 X 20

207682044

Unavailable

650

Square Nut M6

232862412

Unavailable

660

Black, LH Lateral Panel

705002958

Unavailable

660

Black, RH Side Panel

705002959

Unavailable

660

PANEL_BODY LH B-DC - Call your local BRP dealership | Package XXC, Digital Camo Model

705010570

Unavailable

660

PANEL_BODY RH B-DC - Call your local BRP dealership | Package XXC, Digital Camo Model

705010571

Unavailable

660

White Paint Lateral Panel LH | Package XXC, Red Model

705010132

Unavailable

660

PANEL_BODY RH B-229 - Call your local BRP dealership | Package XXC, Red Model

705010133

Unavailable

665

Torx Screw M6 X 12

250000454

Unavailable

675

Torx Screw M6 X 16

250000755

Unavailable

680

Panel Extension

705004988

Unavailable

690

Engine Cover

705004966

Unavailable

700

Red Central Panel Kit | Package STD, North America Model

715003174

Unavailable

700

CAN-AM RED CENTRAL PANEL KIT - Call your local BRP dealership | Package STD, Europe-International Model

715003176

Unavailable

700

Digital Camo Central Pannel Kit | Package-XXC Digital Camo North America

715002577

Unavailable

700

Digital Camo Central Pannel Kit | Package-XXC Digital Camo Europe

715002581

Unavailable

700

White Central Panel Kit | White Model North America, White Model Internaltional

715001461

Unavailable

700

White Central Panel Kit | Package XXC, Europe-International Red Model

715003178

Unavailable

710

Cap

705002353

Unavailable

720

Grommet

705003264

Unavailable

740

RH INNER FENDER - Call your local BRP dealership

705004308

Unavailable

740

LH INNER FENDER - Call your local BRP dealership

705004307

Unavailable

765

Stainless Steel Flat Washer

234062670

Unavailable

766

Torx Screw M6 X 20

250000722

Unavailable

770

Tuflok Plastic Rivet

293150230

Unavailable

800

Clip

414479100

Unavailable

820

Rubber Bumper

293830005

Unavailable

880

LH Rear Body Panel Cap

705017923

Unavailable

890

RH Rear Body Panel Cap

705017924

Unavailable

910

Rear Carpet

705002343

Unavailable

920

Hook

705002342

Unavailable

930

Torx Screw M6 X 16

250000755

Unavailable

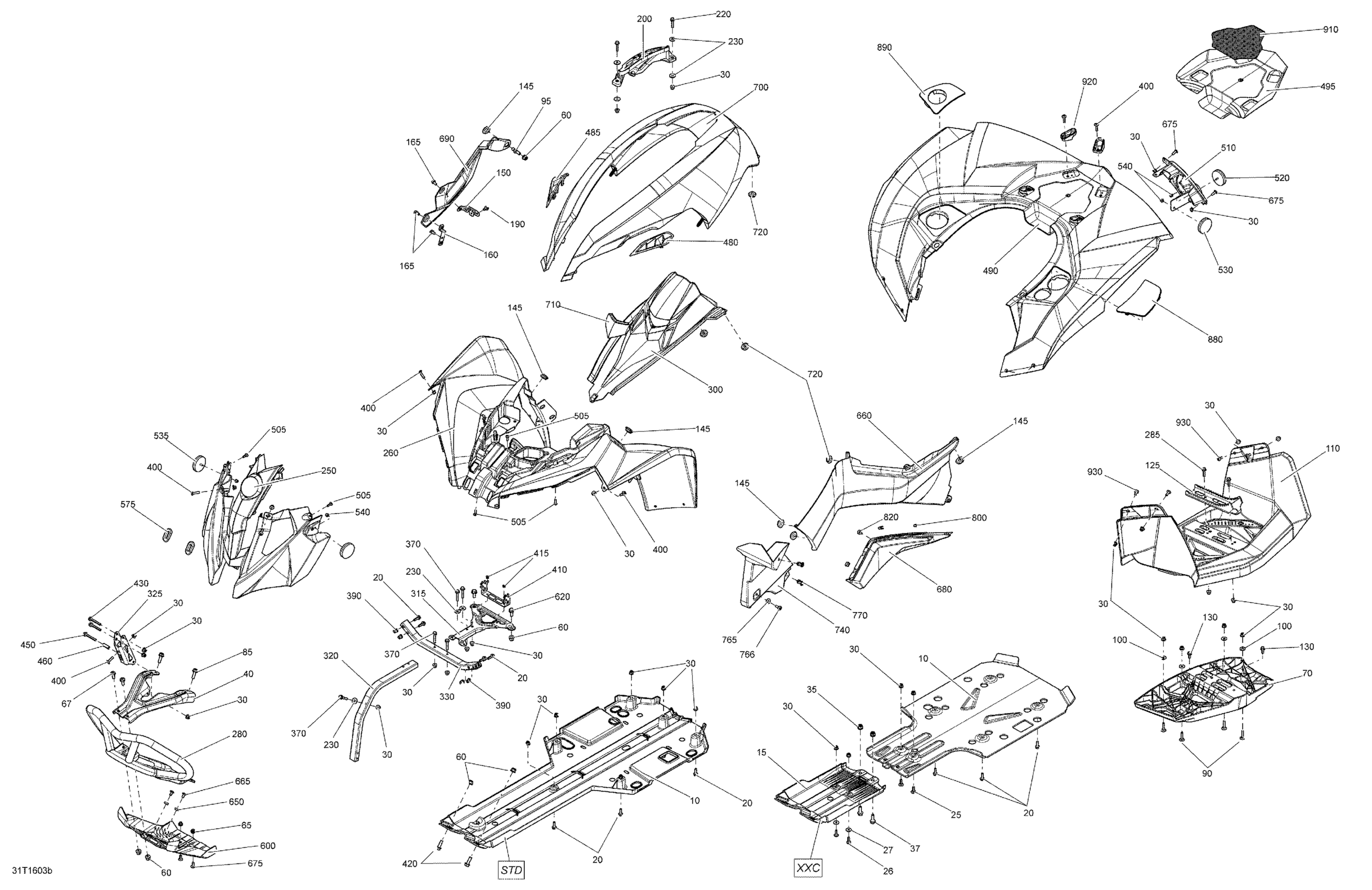

Can-Am Renegade, 2016 09- Body and Accessories Diagram

Protective Plate Kit

Central Skid Plate | Package-XXC

Square Nut M6

Skid Plate | XXC

Square Nut M6

Hex. Flange Screw M6 X 20

Carriage Bolt M6 X 20 | DS 650 X

Torx Screw M6 X 20

Stainless Steel Flat Washer

Flange Elastic Nut M6

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 25

Bumper Support

Hex. Flange Elastic Nut M8

Threaded Insert M6 X 1.0

Torx Screw M8 X 20, Scotch Grip

LH Footboard

RH Footboard

Hex. Flange Screw M8 X 25, Scotch Grip

Carriage Bolt M6 X 30

Ball Head Stud

Flat Washer 6 mm

LH Footboard/Fender

RH Footboard/Fender

Footrest

Hex. Flange Screw M6 X 16

Oval Washer

Engine Cover Support

Engine Cover Support

Hex. Flange Screw M6 X 12

Hex. Flange Screw M6 X 12, Scotch Grip

Lever Indicator

Lever Indicator | 1000

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Flat Washer

Front Facia

Deep Black Front Fender Kit | Xxc Model

Deep Black Front Fender Kit | Model-XXC Europe

BLACK FRONT FENDER KIT - Call your local BRP dealership | Package-XXC Digital Camo North America

BLACK FRONT FENDER KIT - Call your local BRP dealership | Package-XXC Digital Camo Europe

Red Front Fender Kit | Package STD, North America Model

FRONT FENDER KIT - Call your local BRP dealership | Package STD, Europe-International Model

Front Bumper

Hex. Flange Screw M6 X 25

Dashboard

Bracket

Front Bent Sectional Tube

Support

Bent Sectional Tube

Hex. Flange Screw M6 X 35

Insert

Torx Screw M6 x 25

Fuse Holder

Pop Rivet 3/16"

Hex. Flange Screw M8 X 25

Hex. Flange Screw M6 X 45

Hex. Flange Screw M6 X 50

Spacer

LH Grille

RH Grille

REAR FENDER KIT - Call your local BRP dealership | Xxc Model North America

Deep Black Rear Fender Kit | Model-XXC International

Black Rear Fender Kit | Model-XXC Europe

Black Rear Fender Kit | Package-XXC Digital Camo North America

Black Rear Fender Kit | Package-XXC Digital Camo International

REAR FENDER KIT - Call your local BRP dealership | Package-XXC Digital Camo Europe

Red Rear Fender Kit | Package STD, North America Model

REAR FENDER KIT - Call your local BRP dealership | Package STD, Europe Model

REAR FENDER ASS'Y - Call your local BRP dealership | Package STD, International Model

Reflective Sheet

Torx Screw K50 X 16

LH Rear Facia | North America, International

LH Rear Facia | Europe

RH Rear Facia | North America, International

RH Rear Facia | Europe

Red Reflector

Amber Reflector | Except Europe Model

Flange Elastic Nut M5

Oblong Grommet
