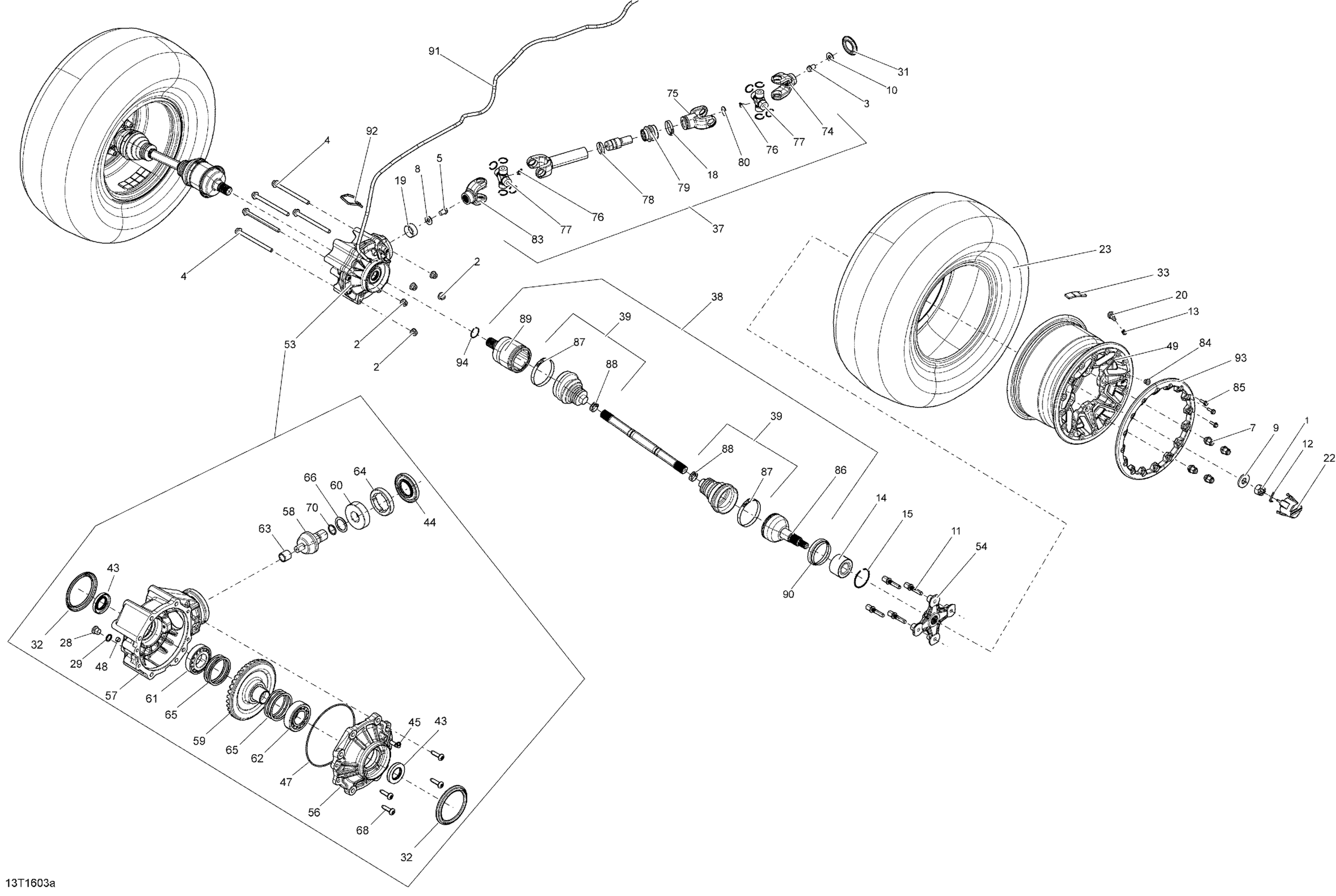

Can-Am Renegade, 2016 Drive System, Rear Diagram

#

Description
Price

1

Hex. Flange Castellated Nut M18

232291413

$7.98

2

Hex. Flange Elastic Nut M10

233201436

$2.11

3

Hex Flange Screw M12 X 16

250001039

$2.11

4

Hex. Flange Screw M10 X 135

250001041

$5.59

5

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

7

Black, Wheel Nut M10 X 1.25

250100184

$4.51

8

Flat Washer M10 | 4X4

250200014

$1.49

9

Conical Spring Washer M18

250200171

$7.65

10

Flat Washer M12

250200102

$2.11

11

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

12

Cotter Pin

250400071

$2.11

13

Valve Cap

293000110

$1.59

14

Ball Bearing

293350150

$52.99

15

Circlip

293370019

$4.68

18

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

19

Wear Ring | 4X4

705400036

$26.49

20

Rim Valve With Cap

705400193

$8.69

22

Wheel Cap

705400928

$10.49

23

Tire | North America

705500926

$164.99

23

Rear Tire | Europe & International

705500820

$164.99

23

TIRE_30X9R14 - Call your local BRP dealership

705400962

Unavailable

28

Fill Level Plug | 4X4

705500504

$10.01

29

Copper Washer | 4X4

705500506

$0.45

31

Protector

705501123

$7.55

31

Protector

705501123

$7.55

32

Wear Ring

705501124

$7.90

33

1/2 Oz Weight

219704465

$3.89

37

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$307.49

37

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$307.49

37

Shaft Ass'y Kit | Incldues 1 to 5

703500991

$328.49

37

Shaft Ass'y Kit | XMR

703500990

$232.99

38

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

38

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

38

Performance CV Axle - Rear Right

705501848

$275.49

38

Performance CV Axle - Rear Left

705501847

$275.49

39

Boot Kit

705501864

$42.49

43

Oil Seal

705501556

$17.99

44

Oil Seal

705502062

$23.49

44

Oil Seal

705501557

$19.49

45

Breather Tube

705501584

$14.99

47

Seal

705502064

$8.47

47

O-Ring

705501711

$10.54

48

Plug Drain

705501724

$5.95

49

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$206.49

49

Black, Rim | XXC

705502244

$265.99

49

Black Rim | Package XMR

705502237

$303.49

53

Rear Differential Ass'y

705501896

Unavailable

53

Final Drive Unit

705502546

$1,144.99

54

Wheel Hub

705501900

$132.49

56

Rear Cover

705502547

$163.99

56

REAR COVER - Call your local BRP dealership

705502051

Unavailable

57

Rear Pinion Cover

705502180

$291.49

57

Rear Pinion Cover

705502052

$216.99

58

Pinion 10 Teeth

705502053

$209.99

58

Differential Gear Kit

703500870

$339.99

59

Gear 36 Teeth

705502682

$189.99

59

Differential Gear Kit

703500870

$339.99

60

Ball Bearing

705502055

$31.99

61

Ball Bearing

705502737

$48.49

62

Ball Bearing

705502738

$59.49

63

Needle Bearing

705502058

$49.99

64

Nut

705502059

$32.99

64

Nut

705501549

$32.99

64

Nut

705501550

$21.99

65

Differential Shim 0.02 mm

705502060

$13.76

66

Pinion Gear Shim 1.67 mm

705502061

$18.99

68

Screw

705502063

$3.24

70

O-Ring

705502065

$5.95

70

O-Ring

705501554

$5.03

74

Fixe Yoke

715900101

$29.49

74

Fixe Yoke

715900101

$29.49

74

Fixe Yoke

715900296

$24.99

74

Joint

715900271

$24.99

75

Spline Yoke

715900106

$41.49

76

Grease Fitting

715900184

$5.24

76

Grease Fitting

715900184

$5.24

76

Grease Fitting | T3

715900295

$5.24

77

Universal Joint Ass'y | T3

703500846

$59.49

77

Universal Joint

715900326

$68.99

77

Universal Joint

715900326

$68.99

78

Oetiker Gear Clamp 36.1MM

509000045

$8.29

79

Rubber Boot

715900118

$14.30

80

COVER - Call your local BRP dealership

715900187

Unavailable

80

COVER - Call your local BRP dealership

715900187

Unavailable

83

Fixe Yoke

715900101

$29.49

83

Fixe Yoke

715900101

$29.49

83

Joint

715900272

$24.99

85

Hex. Flange Screw M6 X 25

250000787

$2.22

85a

Insert | XXC

293450317

$7.29

86

CV Joint

705501776

$259.49

87

Oetiker Clamp, 82.1 mm

715900241

$10.33

88

Oetiker Clamp, 27.3 mm

715900242

$10.33

89

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

89a

Circlip

705501781

$6.50

90

Joint Protector

705501842

$8.85

91

Polyurethane Hose 10000Mm Long

219704410

$56.99

92

Tie Wrap 368 mm

293750008

$1.04

93

Red, Reinforcement Disk | Package XXC Red Model

705401763

$83.99

93

Red, Reinforcement Disk | Package XMR Red

705401837

$92.99

93

GREEN PAINTED REINFORCEMENT DISK - Call your local BRP dealership | Package-XXC Digital Camo

705401812

Unavailable

93

Blue Reinforcement Disk | Package XMR Blue

705401702

$92.99
