- Renegade, 2016
07- Steering

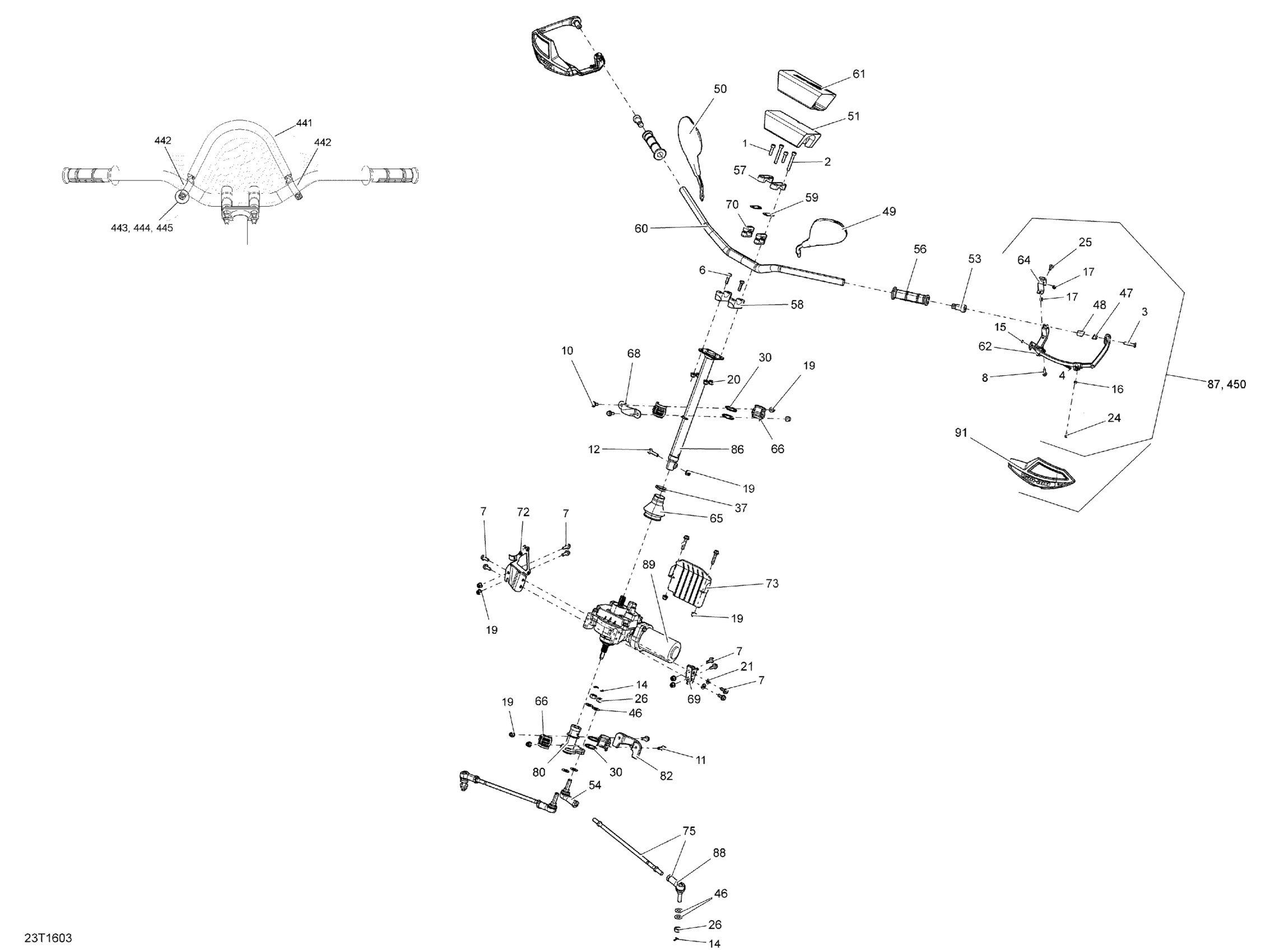

Can-Am Renegade, 2016 07- Steering Diagram
#
1
Socket Screw M8 X 30
205083060
Unavailable
2
Socket Head Screw M8 X 60
205086060
Unavailable
2
Hex. Screw M8 X 60
207086046
Unavailable
3
Socket Head Screw | X
205384034
Unavailable
4
Socket Head Screw M4 X 40 | X
205444086
Unavailable
6
Hex. Screw M8 X 30
207183060
Unavailable
7
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
8
Hex. Flange Screw M6 X 20
207662044
Unavailable
10
Hex. Flange Screw M8 X 20
207682044
Unavailable
11
Hex. Flange Screw M8 X 25
207682534
Unavailable
12
Hex. Flange Screw M8 X 35
207683544
Unavailable
14
Cotter Pin
211400013
Unavailable
15
Elastic Stop Nut M4
232541414
Unavailable
16
Hex. Elastic Nut M5 | X
232551600
Unavailable
17
Hex. Elastic Stop Nut M6
232561600
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
Hex. Elastic Flange Nut M8
233281416
Unavailable
21
Conical Spring Washer M8
234281474
Unavailable
24
Torx Screw M5 X 14
250000742
Unavailable
25
Torx Head Screw M6 X 16
250000717
Unavailable
26
Nut M12
250100099
Unavailable
30
O-Ring
293300068
Unavailable
37
Tie-Rap 180 mm
414115200
Unavailable
46
Hardened Washer
706200281
Unavailable
47
Small Bracket | DS 650 X
709400161
Unavailable
48
Large Bracket | DS 650 X
709400162
Unavailable
49
LH Mirror | Europe
709400406
Unavailable
50
RH Mirror | Europe
709400523
Unavailable
51
Foam
709400422
Unavailable
53
End Piece
709400449
Unavailable
54
RH Ball Joint
709402302
Unavailable
56
Handle Grip
709400493
Unavailable
57
Support
709400496
Unavailable
58
Lower Mounting Clamp
709402750
Unavailable
59
Stiffner
709400509
Unavailable
60
Black, Handle Bar
709401240
Unavailable
60
Manta Green, Handle Bar | Model-REN XXC Digital Camo
709401530
Unavailable
60
Red, Handle Bar | Package XMR Engine 1000 Red Model
709401643
Unavailable
60
Blue Handle Bar | Package XMR Engine 1000 Blue Model
709401644
Unavailable
61
Cover
709400939
Unavailable
61
Cover | Package XMR Engine 1000 Red Model
709402112
Unavailable
61
Cover | Package-XXC Digital Camo
709402111
Unavailable
62
Air Deflector Support Kit | X
715001378
Unavailable
64
Air Deflector Support Kit | X
715001378
Unavailable
65
Bellows
709400674
Unavailable
66
Spherical Half Bushing
709400783
Unavailable
68
Upper Column Attachment
709400827
Unavailable
69
Power Steering Module Bracket
709400848
Unavailable
70
Steering Support
709400919
Unavailable
72
RH STEERING BRACKET - Call your local BRP dealership
709400994
Unavailable
73
HEAT DEFLECTOR - Call your local BRP dealership
709401005
Unavailable
75
Tie Rod Ass`y | Includes 15 to 17
703501038
Unavailable
75
Rod-Tie Ass'y | Incl 36
703501037
Unavailable
80
Pitman Kit | Includes 3 to 5
703500785
Unavailable
80
Pitman Kit
703500812
Unavailable
82
Column Attachment
709401428
Unavailable
86
Kit Tube-Main.
703501137
Unavailable
86
Main Tube
709401008
Unavailable
87
Air Deflector Support Kit | X
715001378
Unavailable
88
LH Ball Joint
709402303
Unavailable
89
Power Steering
709401608
Unavailable
91
Manta Green, RH Deflector | Package-XMR 1000 Digital Camo
709401622
Unavailable
91
Manta Green, LH Deflector | Package-XMR 1000 Digital Camo
709401623
Unavailable
91
Red, RH Deflector | Package XMR Engine 1000 Red Model
709401667
Unavailable
91
Red, LH Deflector | Package XMR Engine 1000 Red Model
709401668
Unavailable
91
BLACK RH DEFLECTOR - Call your local BRP dealership | Package XMR Gulfstream Blue
709401669
Unavailable
91
BLACK LH DEFLECTOR - Call your local BRP dealership | Package XMR Gulfstream Blue
709401670
Unavailable
444
Hex. Flange Screw M6 X 20
207662054
Unavailable
445
Hex. Flange Elastic Nut M6
233261466
Unavailable
441
Strap Ass'y | Package XMR
506152115
Unavailable
443
Bushing | Package XMR
506152156
Unavailable
450
Deflector Kit | Package XXC Digital Camo
715003812
Unavailable
450
Deflector Kit | Package XXC White/Red/Black
715003811
Unavailable
450
Handlebar Wind Deflectors | Package XMR Gulfstream Blue
715003814
Unavailable
442
Collar Tube | Package XMR
709401720
Unavailable
