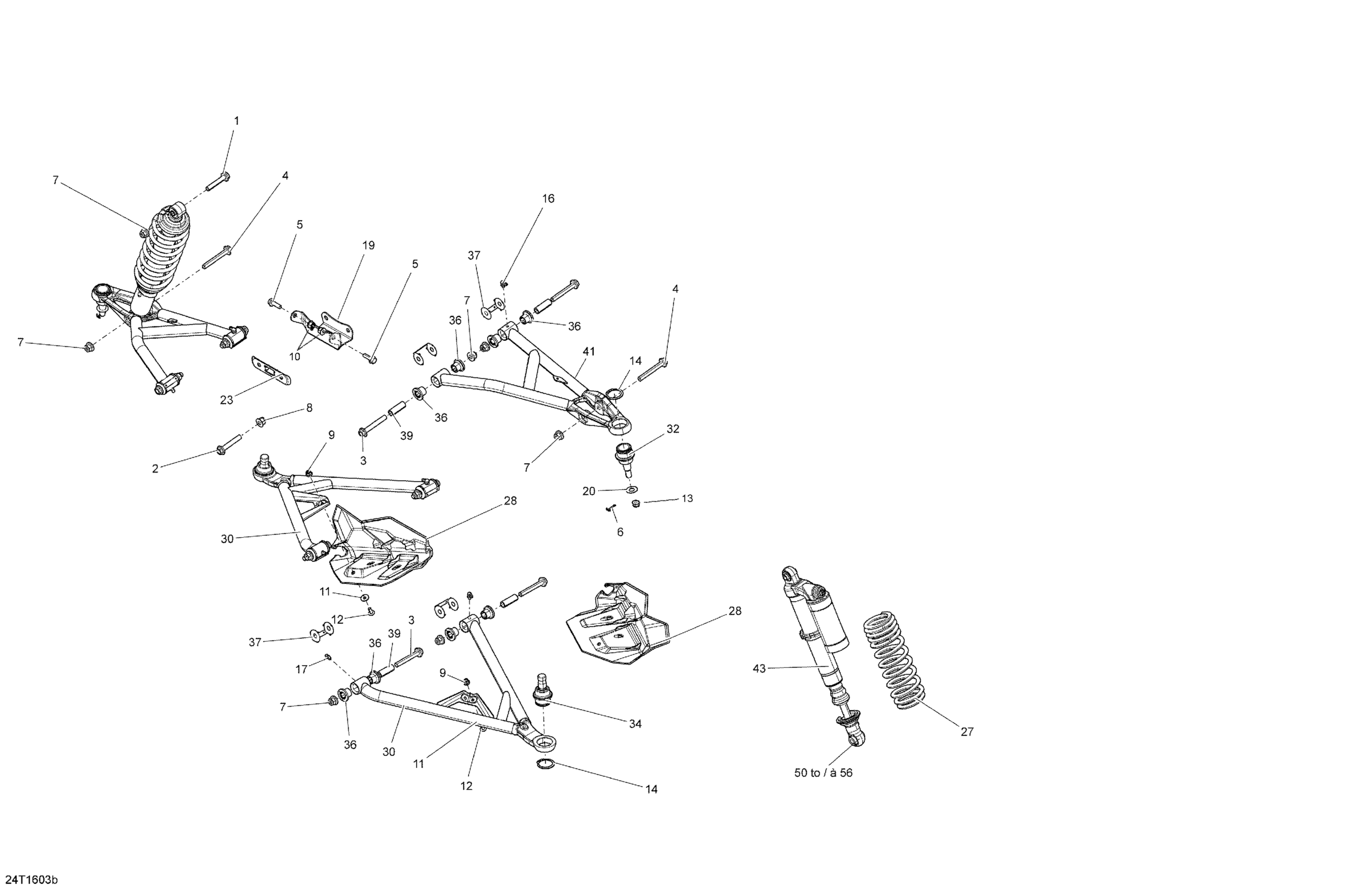

Can-Am Renegade, 2016 Front Suspension - XMR Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605546

$1.74

2

Hex. Flange Screw M10 X 60

207606044

$2.78

3

Hex. Flange Screw M10 X 70

207607046

$2.91

4

Hex. Flange Screw M10 X 75

250001038

$5.54

5

Hex. Flange Screw M8 X 25

207682534

$0.90

6

Cotter Pin

211400017

$0.25

7

Hex. Flange Elastic Nut M10

233201436

$1.74

8

Hex. Flange Elastic Nut M10

233201434

$1.63

9

Hex. Flange Elastic Nut M6

233261494

$1.26

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Stainless Steel Flat Washer

234062670

$1.74

12

Torx Screw M6 X 16

250000755

$0.72

13

Nut M12

250100099

$1.64

14

Circlip

293370035

$2.55

16

Grease Fitting 90°

293550056

$1.37

17

Grease Fitting

408200700

$2.80

19

Upper Front Holder

705203247

$14.37

20

Hardened Washer

706200281

$2.34

23

Front Suspension Cross Plate

706200998

$4.91

27

GULFSTREAM BLUE SPRING - Call your local BRP dealership | Model Blue

706202335

Unavailable

27

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Model Red

706202628

Unavailable

28

LH Joint Protector

706202808

$9.29

28

RH Joint Protector

706202809

$9.29

30

LH Lower Suspension Arm

706204639

$156.89

30

Black, RH Lower Arm

706202870

$156.89

32

Ball Joint

706202044

$35.14

34

Ball Joint

706202045

$35.35

36

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

37

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

39

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

41

Black LH Upper Arm

706201796

$156.89

41

Black RH Upper Arm

706201797

$156.89

43

Shock Absorber

706202334

Unavailable

50

O-Ring Bushing

715900209

$13.52

51

Interior Bushing | XTP

715900210

$14.75

52

Bushing | XTP

706201648

$13.83

53

Bushing Sleeve | XTP

706201585

$27.66

54

Bushing Sleeve | XTP

706201586

$27.66

55

Spherical Bearing

715900251

$76.12

56

Retaining Ring

715900252

$10.98
