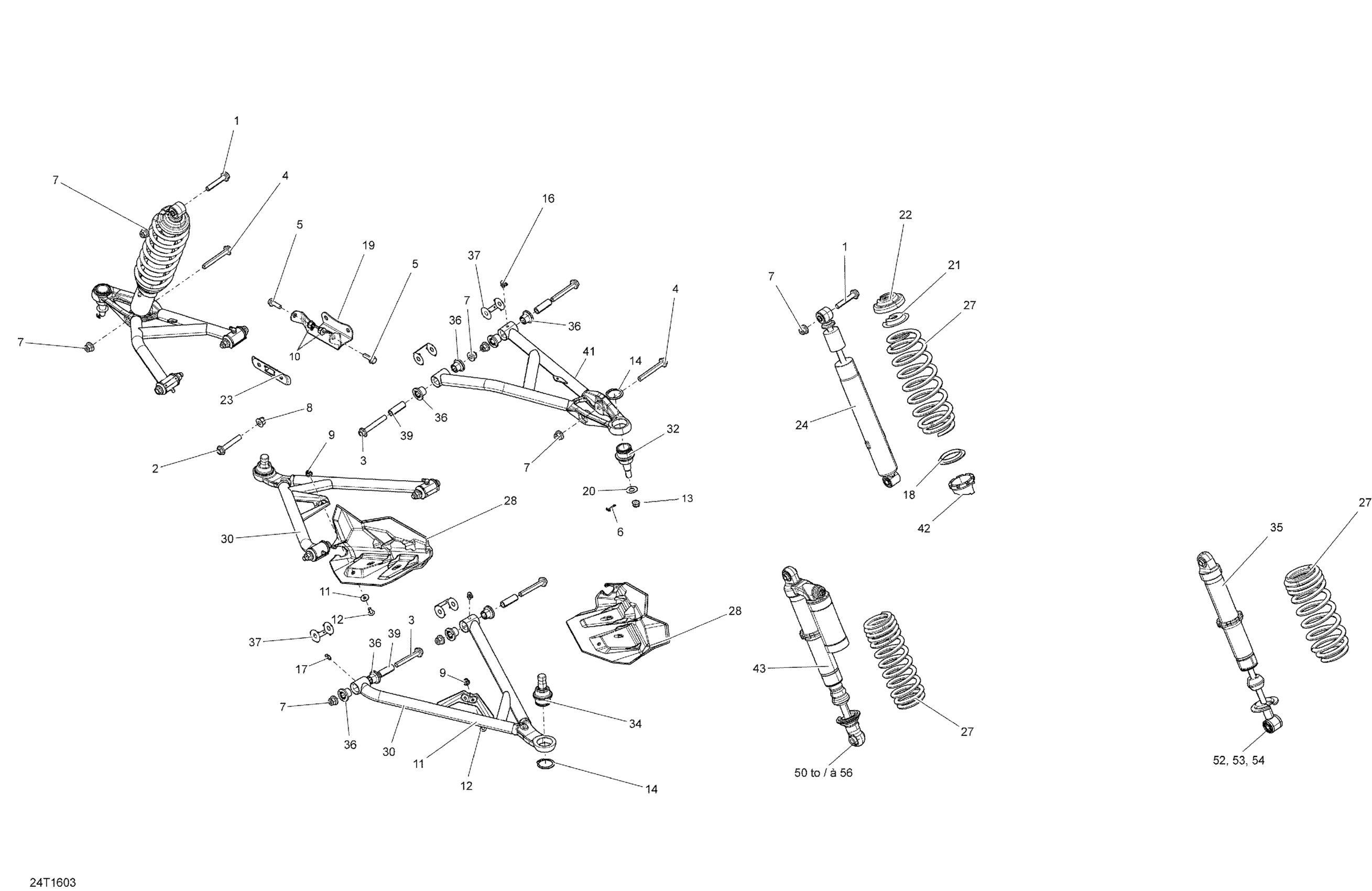

Can-Am Renegade, 2016 Front Suspension Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605546

$2.11

2

Hex. Flange Screw M10 X 60

207606044

$3.38

3

Hex. Flange Screw M10 X 70

207607046

$2.96

4

Hex. Flange Screw M10 X 75

250001038

$6.77

5

Hex. Flange Screw M8 X 25

207682534

$2.11

6

Cotter Pin

211400017

$0.33

7

Hex. Flange Elastic Nut M10

233201436

$2.11

8

Hex. Flange Elastic Nut M10

233201434

$2.09

9

Hex. Flange Elastic Nut M6

233261494

$1.58

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Stainless Steel Flat Washer

234062670

$2.11

12

Torx Screw M6 X 16

250000755

$0.87

13

Nut M12

250100099

$2.09

14

Circlip

293370035

$2.64

16

Grease Fitting 90°

293550056

$1.15

17

Grease Fitting

408200700

$3.49

18

Spring Guide

503187500

$10.49

19

Upper Front Holder

705203247

$15.99

20

Hardened Washer

706200281

$2.85

21

Cap

706200785

$4.69

22

Spring Stopper

706200881

$12.99

23

Front Suspension Cross Plate

706200998

$5.09

24

Front Shock

706201170

$185.49

27

RED SPRING - Call your local BRP dealership | Engine 570 Package STD

706202375

Unavailable

27

RED SPRING - Call your local BRP dealership | Engine 850 Package STD

706202374

Unavailable

27

RED SPRING - Call your local BRP dealership | Engine 850 Package STD

706202374

Unavailable

27

RED SPRING - Call your local BRP dealership | Package XXC Red Model

706202378

Unavailable

27

GREEN MANTA SPRING - Call your local BRP dealership | Package-XXC Digital Camo

706202064

Unavailable

28

LH Joint Protector

706202808

$9.90

28

RH Joint Protector

706202809

$9.90

30

LH Lower Suspension Arm

706204639

$158.99

30

Black, RH Lower Arm

706202870

$158.99

32

Ball Joint

706202044

$35.99

34

Ball Joint

706202045

$35.99

35

Shock Absorber | Package-STD Yellow

706202113

$339.99

35

Shock Absorber | Package-STD Yellow

706202113

$339.99

36

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

37

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

39

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

41

Black LH Upper Arm

706201796

$158.99

41

Black RH Upper Arm

706201797

$158.99

42

Adjustment Cam

505073625

$12.99

43

Shock Absorber | Package-XXC

706202117

$709.99

50

O-Ring Bushing

715900209

$14.75

51

Interior Bushing | XTP

715900210

$15.82

52

Bushing | Renegade STD

706201584

$14.82

52

Bushing | Renegade STD

706201584

$14.82

52

Bushing | XTP

706201648

$15.49

53

Bushing Sleeve | XTP

706201585

$33.99

53

Bushing Sleeve | XTP

706201585

$33.99

53

Bushing Sleeve | XTP

706201585

$33.99

54

Bushing Sleeve | XTP

706201586

$33.99

54

Bushing Sleeve | XTP

706201586

$33.99

54

Bushing Sleeve | XTP

706201586

$33.99

55

Spherical Bearing

715900251

$82.99

56

Retaining Ring

715900252

$12.49
