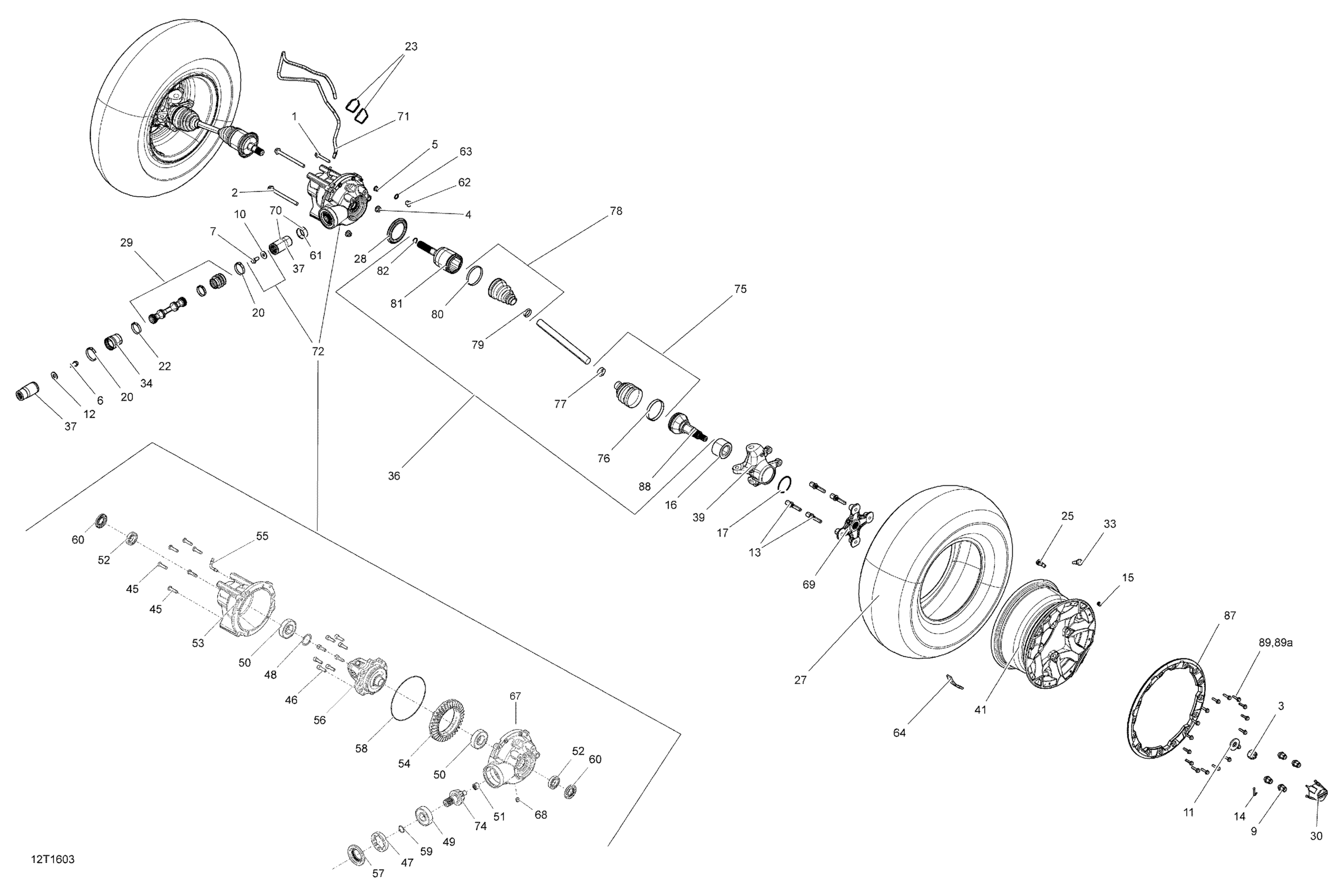

Can-Am Renegade, 2016 Drive System, Front Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 55

207685544

$5.39

2

Hex. Flange Screw M10 X 125

230602546

$7.41

3

Hex. Flange Castellated Nut M18

232291413

$7.98

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Hex Flange Screw M12 X 20

250001042

$1.90

7

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

9

Black, Wheel Nut M10 X 1.25

250100184

$4.51

10

Flat Washer M10 | 4X4

250200014

$1.49

11

Conical Spring Washer M18

250200171

$7.65

12

Flat Washer M12

250200102

$2.11

13

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

14

Cotter Pin

250400071

$2.11

15

Valve Cap

293000110

$1.59

16

Ball Bearing

293350150

$52.99

17

Circlip

293370019

$4.68

20

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

22

Oetiker Gear Clamp

293650199

$9.69

23

Tie-Rap 180 mm

414115200

$0.11

25

Rim Valve With Cap

705400193

$8.69

27

TIRE_205/80R12 F - Call your local BRP dealership | Europe & International

705400475

$184.99

27

Tire | North America

705400600

$189.99

27

Tire | XT

705401333

$144.99

27

Front Tire | P-XTP Europe Model

705410334

Unavailable

27

TIRE_30X9R14 - Call your local BRP dealership

705400962

Unavailable

28

Wear Sleeve

705400780

$7.90

29

Propeller Shaft | Includes 1 to 2

705400913

$211.99

30

Wheel Cap

705400928

$10.49

33

Rim Valve With Cap

705400193

$8.69

34

Rubber Boot

705401093

$5.00

36

Performance CV Axle - Front Right

705401703

$275.49

36

Performance CV Axle - Front Left

705401704

$275.49

36

LH Front - Premium CV Axle | Includes 43 to 51

705401115

$243.99

36

RH Front - Premium CV Axle

705401116

$243.99

36

RH Front - Premium CV Axle

705401428

$243.99

36

LH Front - Premium CV Axle

705401429

$243.99

37

Front Bushing Shaft Kit | 4X4

703500678

$114.99

39

LH Knuckle

705403307

$179.99

39

RH Knuckle

705403308

$179.99

41

Deep Black, 12" X 6 Rim | STD

705401417

$190.49

41

Black, Rim | XXC

705401678

$260.99

41

Black Rim | Package XMR

705502237

$303.49

45

Screw | 4X4

705401601

$10.49

46

Screw | After May 30, 2014

705401602

$6.19

47

Nut | 4X4

705401603

$35.99

48

Shim | 4X4

705401604

$57.99

49

Ball Bearing | After May 30, 2014

705401605

$31.99

50

Ball Bearing | 4X4

705401606

$51.99

51

Ball Bearing | After May 30, 2014

705402848

$49.99

52

Ball Bearing | After May 30, 2014

705401608

$51.99

53

Front Cover | After May 30, 2014

705401610

$149.99

54

Gear 36 Teeth | After May 30, 2014

705401612

$409.99

55

Vent Valve | After May 30, 2014

705401613

$16.49

56

Differential | Package-DPS, XT, XTP

705402182

$1,128.49

56

Differential | Package-STD

705402184

$977.49

56a

Shim

705401769

$7.69

57a

Shim

705401770

$7.09

57

Oil Seal | After May 30, 2014

705401615

$19.49

58

Seal | After May 30, 2014

705401616

$14.28

59

O'Ring | After May 30, 2014

705401617

$7.20

60

Gasket | 4X4

705401618

$18.49

61

Wear Ring | 4X4

705400036

$26.49

61

Wear Ring | 4X4

705400036

$26.49

62

Fill Level Plug | 4X4

705500504

$10.01

63

Copper Washer | 4X4

705500506

$0.45

64

1/2 Oz Weight

219704465

$3.89

67

Front Pinion Cover | After May 30, 2014

705401792

$149.99

68

Drain Plug | After May 30, 2014

705501885

$14.22

69

Wheel Hub

705501900

$132.49

70

Front Bushing Shaft Kit | 4X4

703500678

$114.99

71

Polyurethane Hose 10000Mm Long

219704410

$56.99

72

Front Differential | Includes 8 to 31

703500907

$1,579.99

72

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

74

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

75

Boot Kit, Wheel Side

705401345

$42.49

75

CV Boot Kit, Wheel Side

715900298

$42.49

75

Boot Kit, Wheel Side

705401354

$42.49

76

Oetiker Clamp, Large

715900260

$10.33

76

Oetiker Clamp, Large

715900262

$10.33

76

Oetiker Clamp

715900282

$5.29

77

Oetiker Clamp, Small

715900261

$5.29

77

Oetiker Clamp, Small

715900283

$5.29

77

Oetiker Clamp, Small

715900317

$11.58

78

Boot Kit, Différential Side

705401355

$42.49

78

Boot Kit, Differential Side

705401346

$42.49

78

CV Boot Kit, Differential Side

715900299

$42.49

79

Oetiker Clamp, Small

715900261

$5.29

79

Oetiker Clamp, Small

715900317

$11.58

79

Oetiker Clamp, Small

715900261

$5.29

80

Oetiker Clamp, Large

715900284

$5.29

80

Oetiker Clamp, Large

715900318

$11.58

80

Oetiker Clamp, Large

715900262

$10.33

81

RH Plunging Joint

705401348

$259.49

81

LH Plunging Joint

705401350

$259.49

81

RH Plunging CV Joint

715900300

$259.49

81

LH Plunging CV Joint

715900301

$259.49

81

RH Plunging CV Joint

715900395

$259.49

81

LH Plunging CV Joint

715900396

$259.49

82

Circlip Joint | Not shown

705401349

$6.50

87

Red, Reinforcement Disk | Package XXC Red Model

705401763

$83.99

87

GREEN PAINTED REINFORCEMENT DISK - Call your local BRP dealership | Package-XXC Digital Camo

705401812

Unavailable

87

Orange Reinforcement Disk | Package-XTP North America

705401811

$83.99

87

Blue Reinforcement Disk | Package XMR Blue

705401702

$92.99

87

Red, Reinforcement Disk | Package XMR Red

705401837

$92.99

88

CV Joint

715900297

$259.49

88

CV Joint

705401344

$259.49

88

CV Joint

705401407

$259.49

89

Hex. Flange Screw M6 X 25

250000787

$2.22

89

Hex. Flange Screw M6 X 25

250000787

$2.22

89a

Insert | XXC

293450317

$7.29

89a

Insert | XXC

293450317

$7.29
