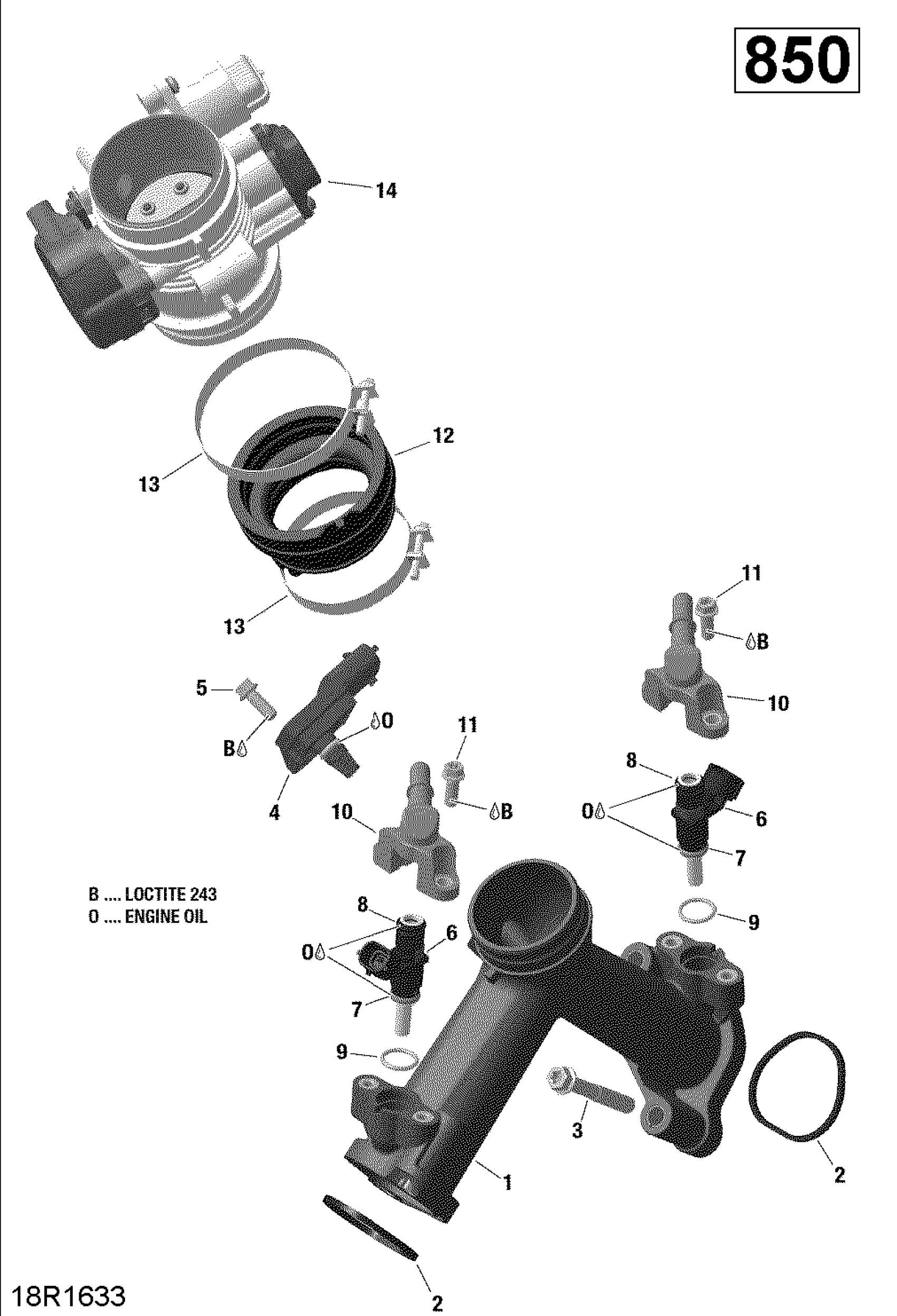

Can-Am Renegade, 2016 Air Intake Manifold and Throttle Body - 850 EFI Diagram

#

Description
Price

1

Air Intake Manifold

420667581

$126.09

2

Gasket

420630642

$5.06

3

Torx Flange Screw M8 X 55

420641213

$7.01

4

Pressure And Temperature Sensor

707000995

$81.31

5

Torx Flange Screw M6 X 16

420440164

$1.67

6

Injection Valve Ass'y | Includes no. 7-9

420874886

Unavailable

7

O-Ring

420431890

$5.69

8

O-Ring

420631220

$13.18

9

O-Ring

420631296

$0.72

10

Fuel Rail

420874901

$22.36

11

Torx Flange Screw M6 X 16

420440162

$3.01

12

Intake Neck

420267045

$10.30

13

Clamp

420251209

$8.09

14

Throttle Body Ass'y | Include 14 to 14a

420685325

$856.69

14a

Position Sensor

715900503

$70.12
