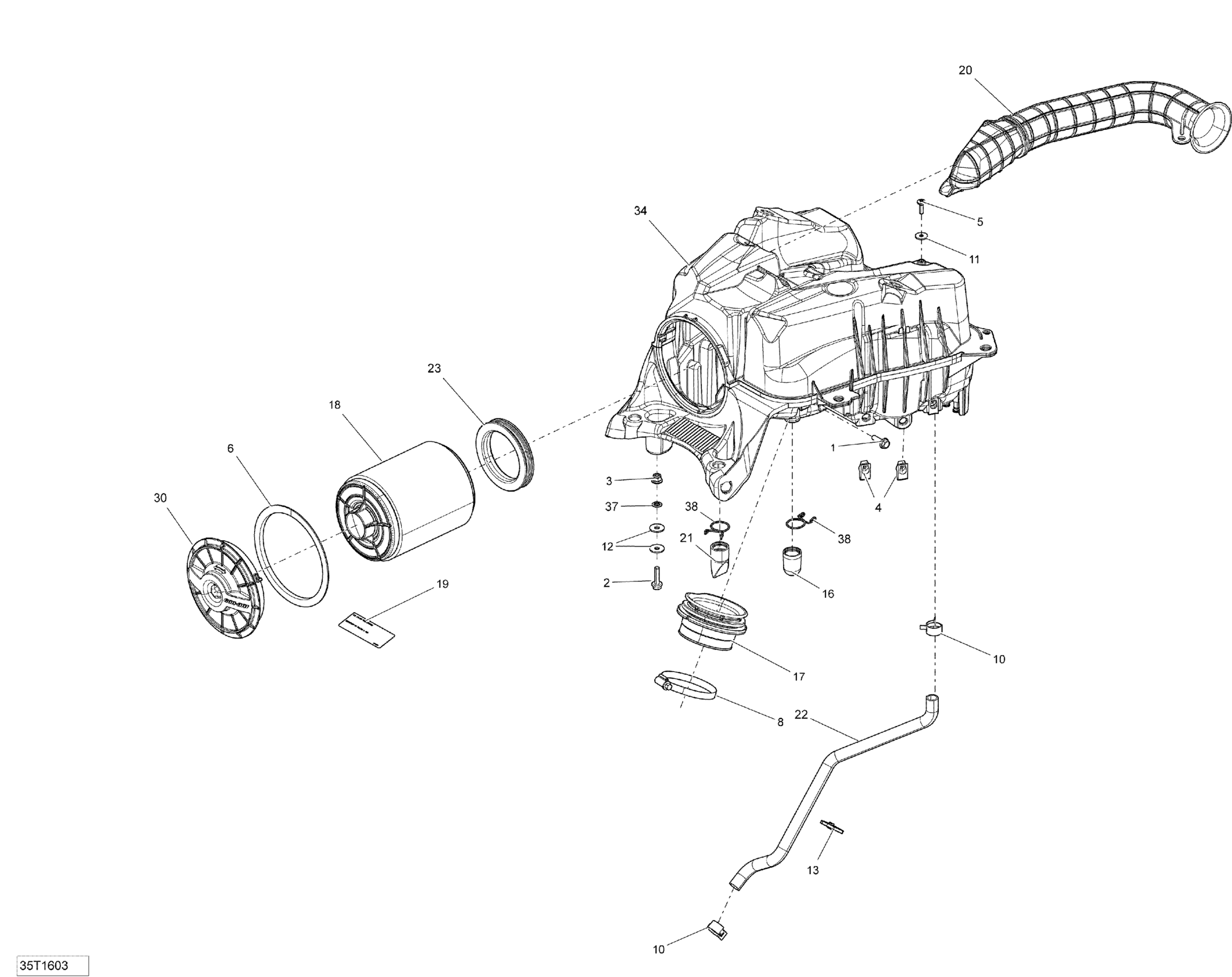

Can-Am Renegade, 2016 Air Intake Except XMR Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$1.66

2

Hex. Flange Screw M6 X 25

207662534

$1.74

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4

Panel Nut M6 X 1.0

250100198

$1.73

5

Torx Screw K50 X 16

250000720

$1.39

6

Gasket

293300175

$12.49

8

Norma Clamp

293650091

$4.46

10

Norma Clamp

293650110

$4.25

11

Washer | DS 650 X

391301600

$0.46

12

Flat Washer

250200082

$0.35

13

Tie-Rap 180 mm

414115200

$0.09

16

Drain Tube

707800080

$6.99

17

Intake Adaptor

707800333

$17.88

18

Air Filter

707800371

$36.54

19

Air Filter Maintenance Decal

707800373

Unavailable

20

Air Intake Hose

707800375

$49.97

21

Drain Tube

707800404

$2.89

22

Vent Hose

707800453

$23.10

23

Air Filter Adaptor

707800470

$17.88

30

Intake Silencer Cap Ass'y

715002174

$14.42

34

Welded Air Box

707800599

Unavailable

37

Push Nut

732610072

$1.72

38

Retainer Clip

707800278

$12.30
