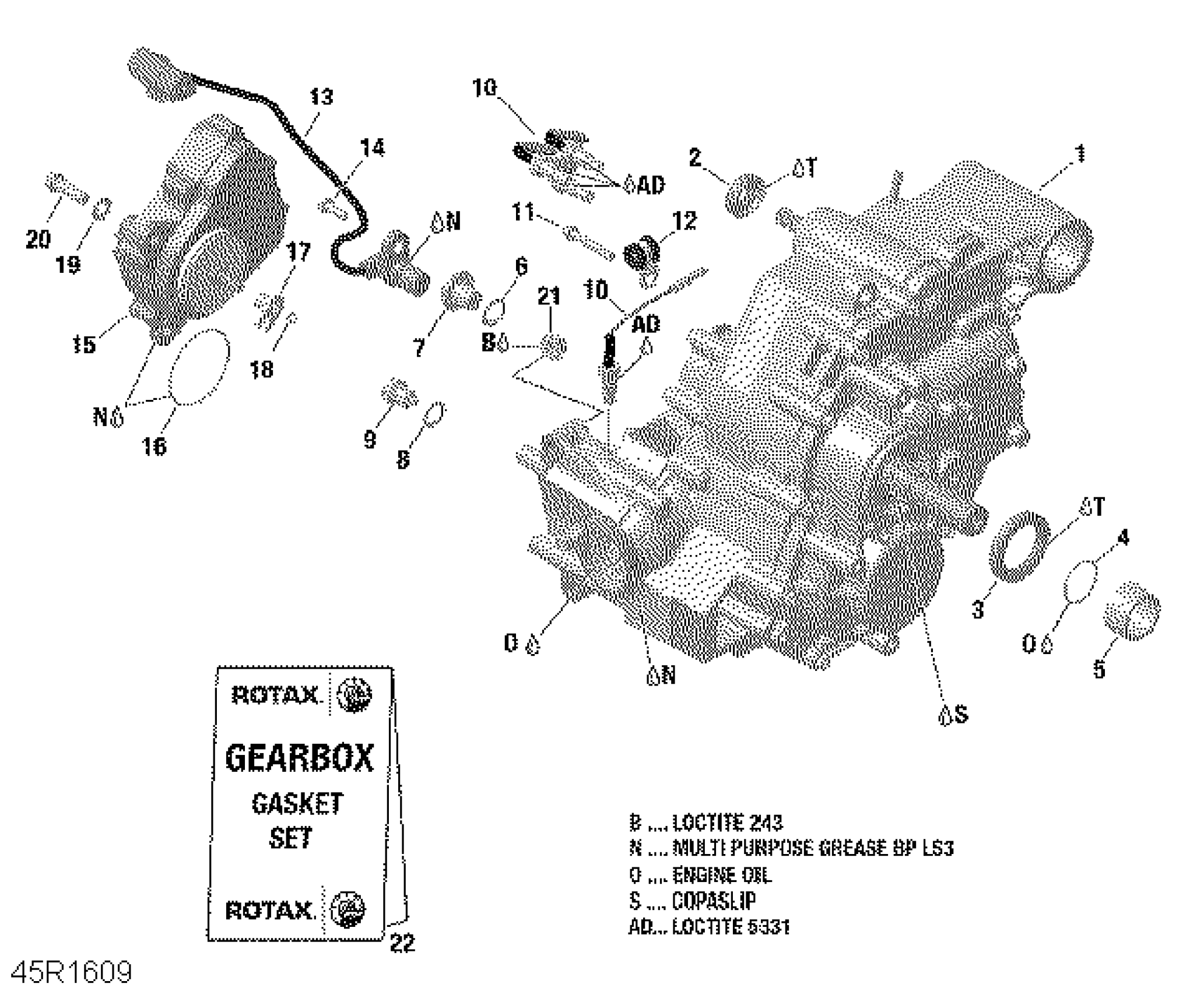

Can-Am Renegade, 2016 Gear Box Assy - 570 EFI Diagram

#

Description
Price

1>11

Gear Box

420686956

$2,089.99

2

Oil Seal

420250450

$17.04

3

Oil Seal

420950089

$19.49

4

O-Ring

420631310

$4.44

5

Distance Ring

420647267

$42.49

6

O-Ring

420650350

$12.11

7

Plug Screw M14 X 1.5

420241662

$15.81

8

Copper Washer

420250640

$0.98

9

Magnetic Drain Plug M12

420241787

$17.99

10

3 Position Switch

420640192

$42.49

11

Torx Flange Screw M6 X 35

420440274

$1.01

12

Cable Clamp

420251692

$13.18

13

Camshft Position Sensor Ass'y

420265727

$109.99

14

Torx Flange Screw M6 X 16

420440162

$3.17

15>18

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$284.99

16

O-Ring

293300117

$4.44

17

Shifting Fork

415129175

$16.49

18

Circlip | 4X4

293370042

$3.17

19

Flat Washer 8.4 mm

420250315

$1.15

20

Torx Flange Screw M8 X 25

420440372

$4.12

21

Hex. Nut M8

420842619

$2.35

22

Gasket Set, Gearbox

420684134

$68.99
