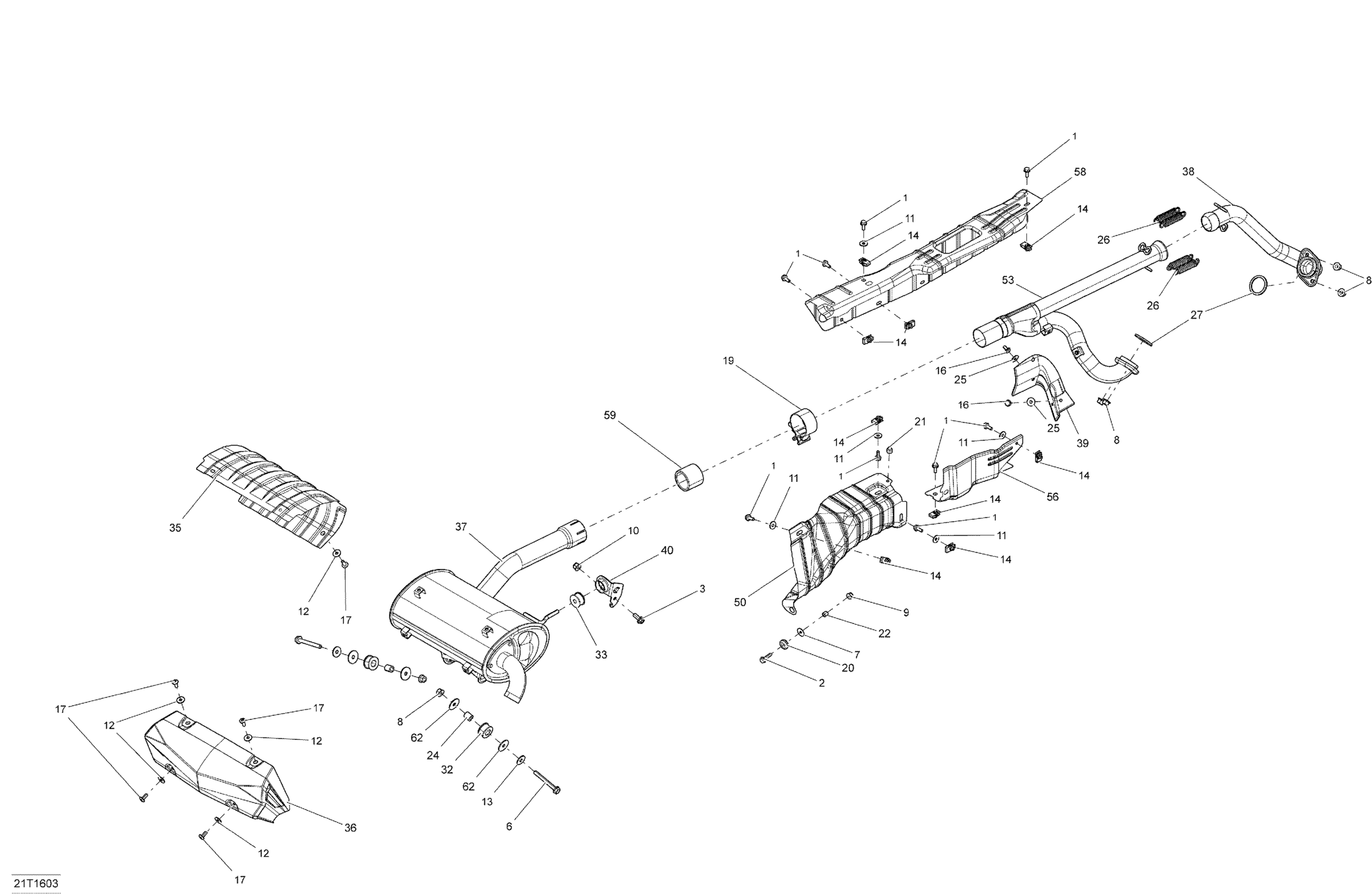

Can-Am Renegade, 2016 Exhaust System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Flange Screw M6 X 25

207662534

$1.74

3

Hex. Flange Screw

207682034

$2.00

6

Hex. Flange Screw M8 X 70

207687044

$6.11

7

Flat Washer

224060201

$1.12

8

Hex. Flange Nut M8

233081416

$1.87

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Flat Washer 6 mm

234062410

$0.64

12

Stainless Steel Flat Washer

234062670

$1.74

13

Flat Washer 8 mm

234082410

$1.11

14

Panel Nut M6 X 1.0

250100198

$1.73

16

Hex. Flange Screw M6 X 12

250000574

$2.00

17

Torx Head Screw M6 X 16

250000717

$1.74

19

Gear Clamp

293650231

$12.97

20

Grommet

709000582

$4.25

21

Rubber Bumper

293830005

$5.33

22

Bushing

293900105

$6.07

24

Spacer Bushing

293900116

$2.51

25

Flat Washer

250200082

$0.35

26

Spring

415107100

$6.01

27

Gasket

707600317

$10.21

32

Vibration Damper

707603323

$10.88

33

Anti-Vibration Rubber

707600702

$8.09

35

Heat Deflector

707600737

$20.12

36

Heat Deflector

707600738

$48.48

37

Muffler | Includes 18a to 18e

707600748

Unavailable

37

MUFFLER_EXHAUST - Call your local BRP dealership | Europe Model

707601632

Unavailable

37a

Spark Arrestor

707601803

$46.24

37b

Gasket

707601799

$4.45

37c

MUFFLER END PIECE - Call your local BRP dealership

715900144

Unavailable

38

Front Head Pipe

707600627

$130.57

38

Front Head Pipe

707600764

$130.57

39

Pipe Protector

707600932

$13.51

40

Support

707600933

$6.73

50

Protector

707601425

$17.88

53

Rear Head Pipe

707601446

$192.51

53

Rear Head Pipe

707601455

$192.51

56

Protector

707601484

$11.81

58

Heat Shield

707603724

$11.51

59

Pipe Gasket

707601544

$17.88

62

Flat Washer M8

250200158

$1.74
