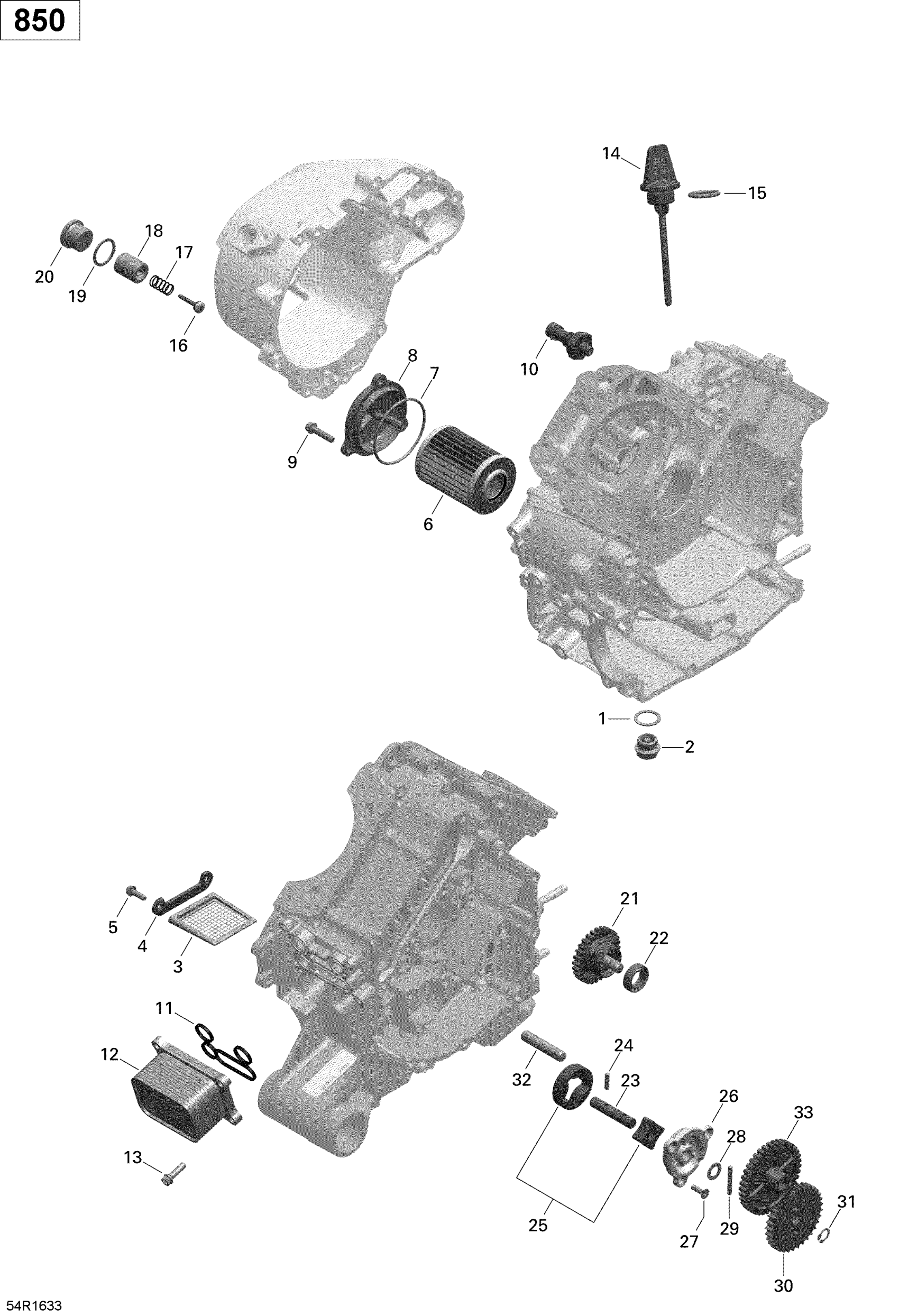

Can-Am Renegade, 2016 Engine Lubrication - 850 EFI Diagram

#

Description
Price

1

Crush Washer

420552280

$3.43

2

Drain Plug M18 X 1.5

420840278

$22.36

3

Oil Sieve

420256322

$26.09

4

Cover Sieve

420612070

$4.09

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$12.79

7

O-Ring

420230923

$2.97

8

Oil Filter cover

420612135

$10.78

9

Torx Flange Screw M6 X 25

420440234

$2.91

10

Oil Pressure Switch

420256915

$37.28

11

Oil Seal

420430325

$7.60

12

Radiator

420890181

$95.49

13

Torx Flange Screw M6 X 16

420440164

$1.67

14

Oil Dipstick

420256802

$15.64

15

O-Ring

420631640

$2.00

16

Pressure Relief Valve

420656370

$16.39

17

Compression Spring

420939485

$11.37

18

Housing

420256487

$7.01

19

Gasket Ring

420650465

$11.18

20

Plug Screw

420640271

$13.09

21

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$84.30

22

Oil Seal

420430555

$17.13

23

Oil Pump Shaft

420237059

$27.58

24

Needle Pin

420232731

$1.79

25

Oil Pump Rotor

420256348

$70.87

26

Oil Pump Cover

420210646

$45.49

27

Torx Head Screw M5 X 16

420640823

$1.79

28

Thrust Washer

420827590

$3.75

29

Needle Pin

420232431

$4.21

30

Oil Pump Gear, 33 Teeth

420434320

$13.09

31

Snap Ring

420245330

$1.64

32

Location Pin 10 M6x50

420229302

$3.01

33

Idle Gear, 38 Teeth

420434300

$13.09
