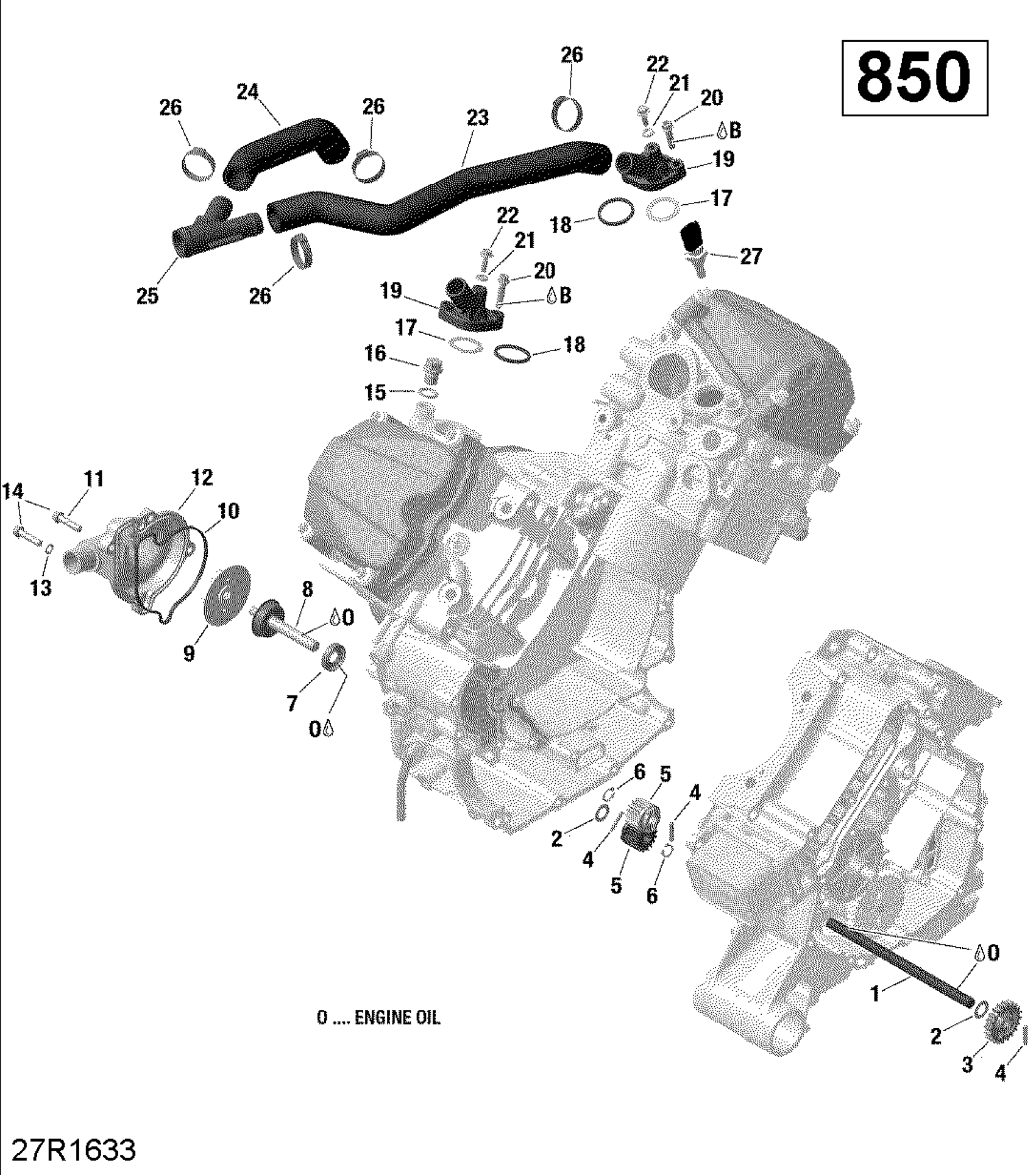

Can-Am Renegade, 2016 Engine Cooling - 850 EFI Diagram

#

Description
Price

1

Intermediate Shaft

420620500

$34.30

2

Thrust Washer

420827590

$3.75

3

Water Pump Gear

420434330

$10.76

4

Needle Pin

420232420

$3.75

5

Pump Gear, 15 Teeth

420234627

$10.76

6

Snap Ring

420245330

$1.64

7

Oil Seal

420650315

$11.04

8-8a

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$67.88

8a

Rotary Seal

420650371

$41.01

9

Water Impeller

420822750

$17.88

10

Gasket

420651190

$8.09

12

Kit Water Pump Housing

703501124

$48.48

13

Seal Washer

420230415

$1.72

14

Torx Flange Screw M6 X 25

420440234

$2.91

15

Copper Washer

420250640

$0.93

16

Plug screw

420841924

$13.18

17

Spacer Ass'y | Includes 40 to 41

420927837

$7.01

18

Thermostat Gasket

420650300

$8.09

19

Thermostat Cover

420222696

$3.00

20

Torx Flange Screw M6 X 25

420440234

$2.91

21

Gasket Ring

420650255

$3.88

22

Screw M5 X 16

420441621

$3.01

23

Rear Head Hose

420822692

$35.04

24

Front Head Hose

420822697

$16.39

25

Y-Fitting

709200414

$10.30

26

Clamp

420251578

$8.09

27

Temperature Sensor

278002895

$36.54
