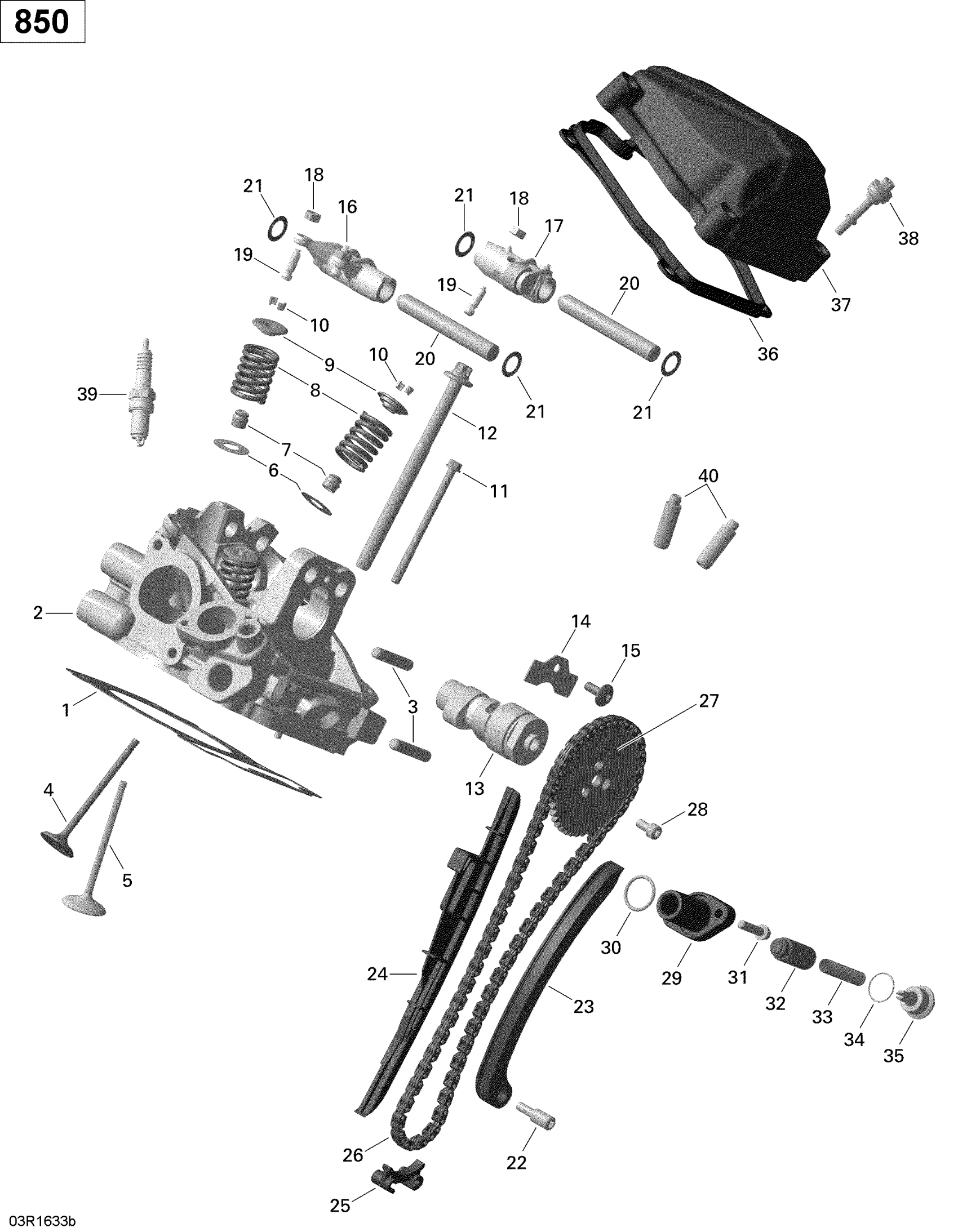

Can-Am Renegade, 2016 Cylinder Head, Rear - 850 EFI Diagram

#

Description
Price

1

Cylinder Head Gasket

420450340

$46.49

2

Cylinder Front Ass'y | Includes 2a to 3

420413106

$660.49

3

Stud M8 x 26

420941014

$14.22

4

Exhaust Valve 31MM

420253172

$67.99

5

Intake Valve 36.5mm

420253162

$39.49

6

Thrust Washer

420627525

$1.79

7

Valve Stem Seal

420430420

$7.90

8

Valve Spring

420239292

$14.81

9

Valve Spring Retainer

420254137

$14.81

10

Valve Cotter

420254602

$2.40

11

Torx Flange Screw M6 X 85

420641228

$7.41

12

Torx Screw M10X140

420641551

$14.28

13

Camshaft

420620868

$171.49

14

Holding Strip

420627743

$18.49

15

Torx Screw M6 X 16

420241529

$2.11

16

Rocker Arm Inlet

420653067

$71.99

17

Rocker Arm Exhaust

420653075

$79.49

18

Hex Nut M6

420242913

$0.53

19

Adjustment Screw M6 X 0.75

420241337

$5.07

20

Pin 12 X 87.5

420229714

$28.49

21

Shim

420944382

$4.12

22

Bearing Screw M6

420240943

$5.24

23

Chain Tension Guide

420436255

$66.49

24

Chain Guide

420236584

$7.51

25

Chain Guide

420236351

$14.81

26

Silent Chain

420297063

$65.49

27

Timing Gear 42T

420254438

$18.49

28

Allen Screw M6 X 12

420840032

$4.44

29

Chain Tensioner Housing

420236510

$11.63

30

O-Ring

420430373

$3.17

31

Torx Flange Screw M6 X 25

420440234

$3.06

32

Chain Tensioner Plunger

420236521

$14.83

33

Spring

420238120

$7.41

34

O-Ring

420250890

$3.06

35

Plug Screw

420641150

$7.41

36

Gasket

420630260

$26.49

37

Valve Cover

420610393

$26.49

38

Hex Screw M6 X 30

420440568

$8.58

39

Spark Plug, NGK LMAR8D-J

715900352

$21.99

40

Not Available As Spare Part - Friction Washer

Unavailable
