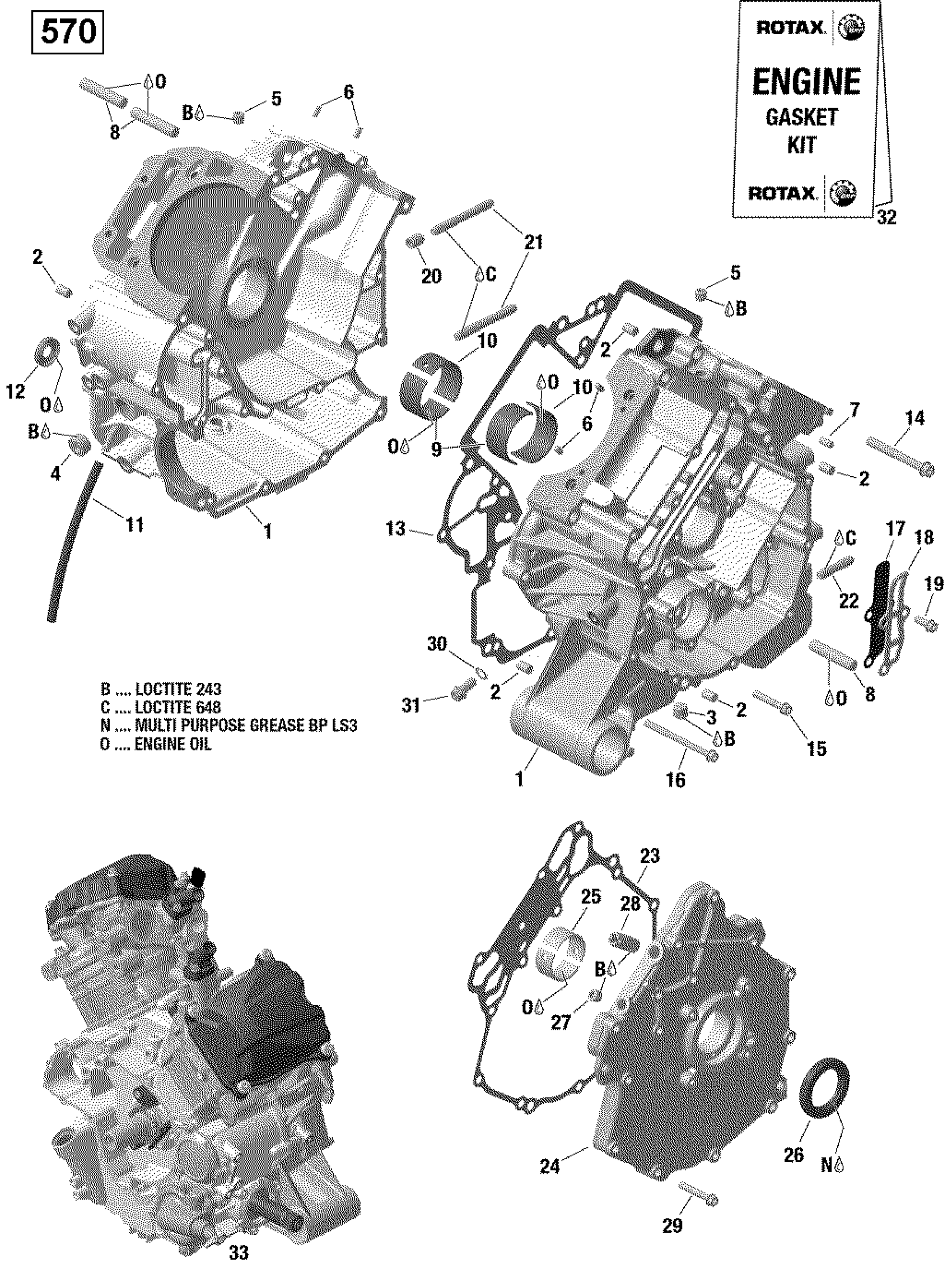

Can-Am Renegade, 2016 Crankcase - 570 EFI Diagram

#

Description
Price

1 >12

Crankcase Ass'y | Includes 1a to 14

420685317

$1,177.58

2

Center Pin 8 X 12

420632010

$3.52

3

Drive Pin 5 X 10

420929650

$1.54

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.01

5

Plug Screw M10 X 1

420641323

$13.18

6

Plug Screw M12x1,5

420840658

$7.09

7

Location Pin 10 M6x50

420229302

$3.01

8

Plain Bearing

420233960

$22.36

9

Plain Bearing

420233965

$22.36

10

Oil Seal

420650315

$11.04

11

Needle Pin

420932780

$7.01

12

Gasket

420651220

$33.55

13

Gasket

420651220

$33.55

14

Torx Flange Screw M8 X 65

420440402

$7.01

15

Torx Flange Screw M6 X 35

420440274

$0.96

16

Torx Flange Screw M6 X 75

420440657

$4.15

17

Reed Valve

420224721

$16.39

18

Reed Valve Stop

420224725

$10.76

19

Torx Flange Screw M6 X 16

420641048

$2.82

20

Dowel Pin 10 X 13

420929670

$10.21

21

Stud

420240816

$6.55

22

Stud

420840718

$10.12

23

Gasket

420651211

$25.34

24>27

PTO Cover Ass'y | Includes 25a to 29

420612335

$259.67

25

Bearing Sleeve

420233995

$19.37

26

Oil Seal

420631933

$26.09

27

Plug Screw M10 X 1

420641323

$13.18

28

Hose Nipple

420256332

$16.39

29

Torx Flange Screw M6 X 35

420440274

$0.96

30

Sealing Ring

420950141

$1.88

31

Torx Flange Screw M8 X 16

420440852

$3.88

32

Gasket Set

420684170

$364.90

33

Long Block 570

420054920

$3,779.99
