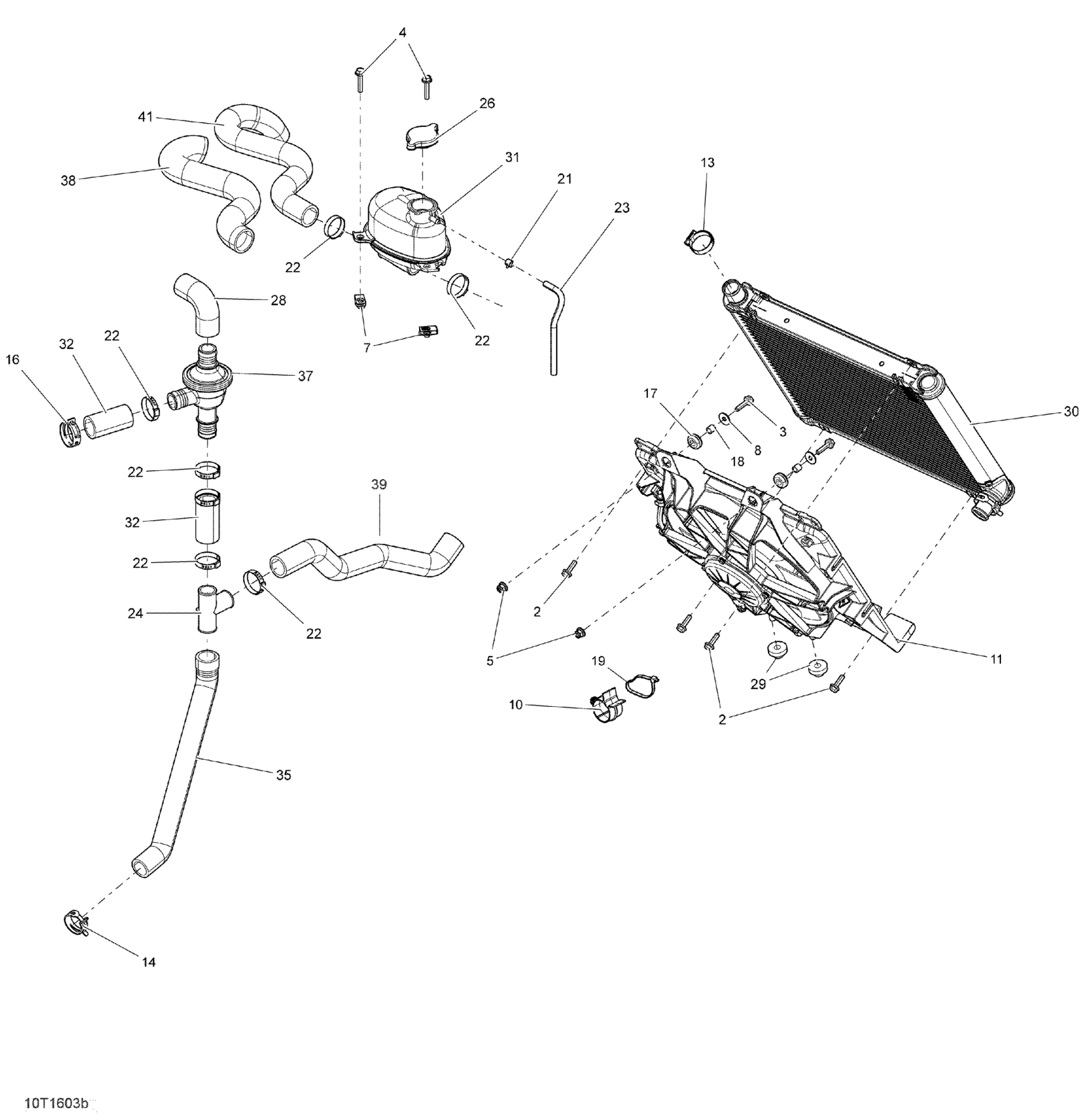

Can-Am Renegade, 2016 Cooling System - XMR Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 20

207662034

$1.74

3

Hex. Flange Screw M6 X 25

207662534

$1.74

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

5

Flange Elastic Nut M6

233261434

$3.61

7

Panel Nut M6 X 1.0

250100198

$1.73

8

Flat Washer

250200082

$0.35

10

Retainer

275500590

$7.18

11

Fan Ass'y

709200564

$217.88

13

Norma Gear Clamp

293650098

$4.15

14

Norma Spring Clamp

293650108

$3.88

16

Norma Spring Clamp

293650166

$4.15

17

Grommet

709000582

$4.25

18

Bushing

293900105

$6.07

19

Tie-Rap 180 mm

414115200

$0.09

21

Spring Clamp

414554800

$0.81

22

Gear Clamp

509000162

$5.84

23

Polyurethane Hose 10000Mm Long

219704410

$46.12

24

T-Fitting

509000219

$14.90

26

Radiator Pressure Cap

709200207

$18.82

28

THERMOSTAT INLET HOSE - Call your local BRP dealership

709200280

Unavailable

29

Grommet

709200285

$7.09

30

Radiator

709200286

$444.00

31

Coolant Tank

709200297

$49.97

32

Hose

709200299

$6.69

35

Hose

709200392

$16.39

37

Thermostat

709200406

$77.32

38

Tubing 35 MM 1000MM Long

219704428

$8.57

39

Radiator Outlet Hose

709200390

Unavailable

41

Inlet Hose

709200575

$30.57
