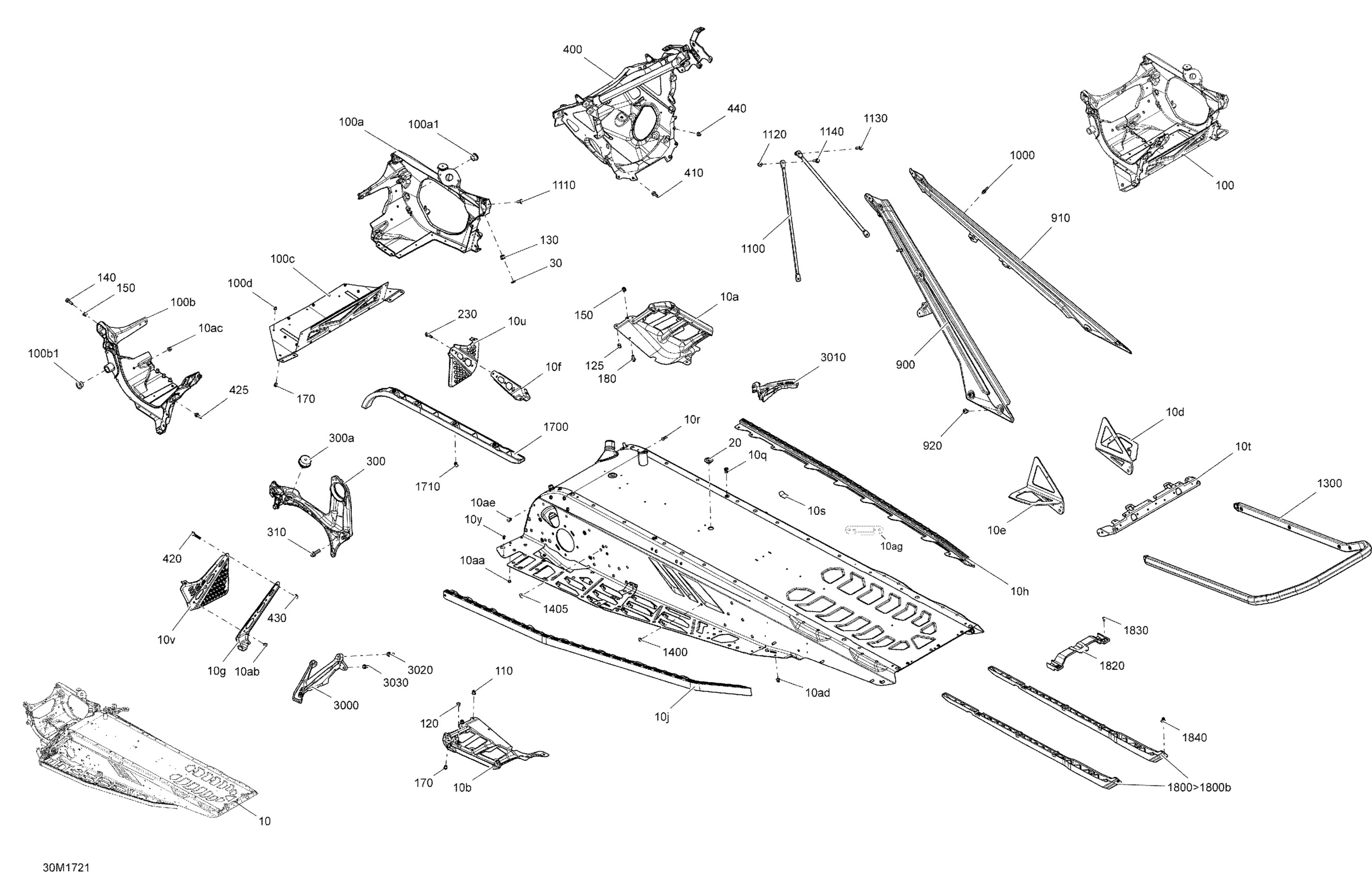

Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC, 2017 09- Frame - All Models Diagram

Deep Black, Chassis Tunnel Module 137

415130829

$3.00

FRAME 137 - Call your local BRP dealership | Model White This part replaces 415130151.

415130213

Unavailable

FOOTREST REINFORCEMENT - Call your local BRP dealership

518328455

Unavailable

FOOTREST REINFORCEMENT - Call your local BRP dealership

518328456

Unavailable

RH Suspension Bracket This part replaces 518329622.

518329622

Unavailable

LH Suspension Bracket

518329621

$45.99

RH Reinforcement Footrest

518329048

$21.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

Threaded Insert M6 X 1.0

250100242

Unavailable

Clinch Stud M6 X 20

250300027

$2.09

Hex. Forming Screw M6 X 10

210261050

$1.69

Rear Cap

518328990

$22.49

RH Footrest

518328460

$44.99

LH Footrest

518333007

$40.99

Rivet Avibulb 3/16

293150203

$2.09

Stavex Rivet

293150144

$0.82

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Radiator Tunnel 137 Ass'y

518334488

$720.49

Member Fixation Plate

518329480

$12.99

Black, Plug

293730052

$9.19

Washer

506151252

$3.17

Hex Screw M8 X 30

250000942

$1.15

Washer

250200111

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

RH Member Ass'y | Includes 100a to 100b

518330545

$229.99

Leg Cushion

505073317

$8.66

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Cushion

505073317

$8.66

Bottom Plate

518329844

$37.99

Rivet Avibulb 3/16

293150203

$2.09

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Torx Screw M6 X 20

250000712

$2.11

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

Vibration Damper

512061516

$61.99

Hex. Flange Screw M8 X 30

250001048

$2.85

Chassis Suspension Module

518334459

$709.99

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Hex. Flange Screw M6 X 35

207663544

$0.90

Not Available As Spare Part - Friction Washer

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hemlock Rivet, 6.5 mm

293150119

$4.29

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Stud M5 X 20

250300629

$2.09

Upper Column Support

518328497

$22.49

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 20

207662044

$2.00

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Front Protector

518328502

$18.49

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Rear Protector | Includes 1800 to 1800b

520001543

$10.59

Rubber Stopper

708000759

$4.19

Rubber Bumper

293830005

$8.09

Rubber Stopper

708000759

$4.19

Rubber Bumper

293830005

$8.09

Support

520001545

$2.00

Torx Truss Screw K40 X 12

250000577

$2.11

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Black Toe-hold

518330358

$24.99

Toe Hold

518329134

$18.99

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11
