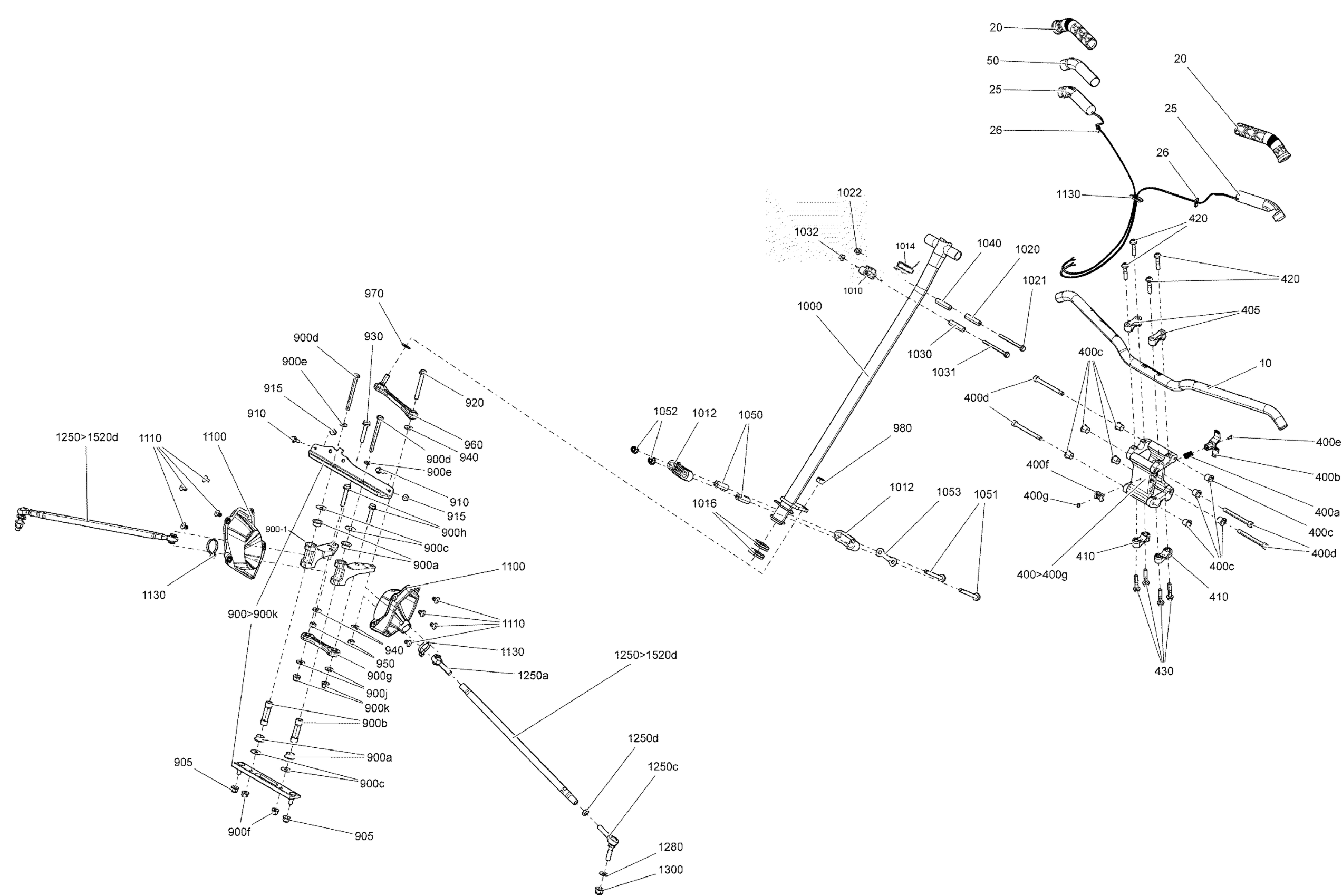

Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC, 2017 Steering - Package X Diagram

#

Description
Price

10

Aluminum Handle Bar

506152825

$76.09

20

Grip 148mm

506152560

$15.64

25

Heated Film

506152856

$44.75

26

Tie Wrap 142 mm

293750002

$1.01

50

Thermal Insulation

506153176

$5.54

400>400g

Riser Kit, Adjustable | Includes 400 to 400q

860201320

$152.21

400a

Spring

506152820

$7.57

400b

Handle

506152821

$3.01

400c

Cushion

506152520

$12.00

400d

Socket Head Screw M8 X 85

205588554

$0.96

400e

Socket Head Screw M4X 10

205041060

$2.00

400f

Tie Rap Mount (screwable)

515176795

$4.96

400g

Pop Rivet 3/16"

390402200

$0.30

405

Steering Support

506152894

$12.10

410

Steering Support

506152894

$12.10

420

Button Head Torx Screw M8 X 38

250000904

$2.00

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.00

900>900k

Steering Linkage Ass'y | Includes 900 to 900p

506152917

$216.39

900-1

LH Swivel Arm | Includes 900a to 900a.b

506152788

$38.78

900-1

RH Swivel Arm | Includes 900b to 900b2

506152790

$38.78

900a

Bushing

503194671

$5.54

900b

Swivel Pivot

506152792

$26.84

900c

Washer

503191800

$2.00

900d

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

900e

Washer

503192494

$3.01

900f

Elastic Flange Nut M8

233281466

$0.96

900g

Ball Joint

506152755

$47.73

900h

Hex. Flange Screw M8 X 45

207684586

$1.22

900j

Washer

506151245

$0.88

900k

Elastic Flange Nut M8

233281466

$0.96

903

Steering Stopper

506153157

$5.45

905

Hex. Elastic Flange Nut M8

233281416

$1.43

910

Hex. Flange Screw M6 X 20

207662044

$1.91

915

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

920

Hex. Flange Screw, M8 X 65

207686544

$11.18

930

Hex. Flange Screw M8 X 45

207684544

$3.57

940

Washer

506151245

$0.88

950

Hex. Elastic Stop Nut M8

232581414

$0.54

960

Ball Joint

506152753

$50.72

970

Washer

506152582

$4.28

980

Elastic Stop Nut M10

232500416

$1.79

1000

Main Tube | Package X

506152777

$241.01

1010

Upper Half Housing

506152219

$1.63

1012

Lower Half Housing

506153048

$5.40

1014

Upper Vibration Ring

506152292

$0.70

1016

Lower Vibration Ring

506152518

$4.39

1020

Housing Bushing

506152297

$9.93

1021

Hex. Flange Screw M6 X 75

207667554

$4.15

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1030

Housing Bushing

506152297

$9.93

1031

Hex. Flange Screw M6 X 75

207667554

$4.15

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1040

Housing Bushing

506152297

$9.93

1050

Housing Bushing

506152937

$9.93

1051

Hex. Flange Screw M8 X 70

207687044

$7.01

1052

Hex. Elastic Flange Nut M8

233281416

$1.43

1053

Stopper Plate

506152938

$9.93

1100

Cap

506153294

$24.60

1110

Pop Rivet 3/16"

293150008

$0.46

1130

Tie-Rap 180 mm

414115200

$0.10

1250>1250d

Rod Ass'y | Includes 1250 to 1250d This part replaces 506153058.

506153080

$67.88

1250a

LH Threaded Ball Joint

506152344

$38.78

1250b

LH Threaded Hex. Jam Nut M10

250100016

$0.70

1250c

RH Threaded Ball Joint

506152684

$41.01

1250d

RH Threaded Hex. Jam Nut M10

732610010

$0.70

1280

Washer

506152582

$4.28

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.09
