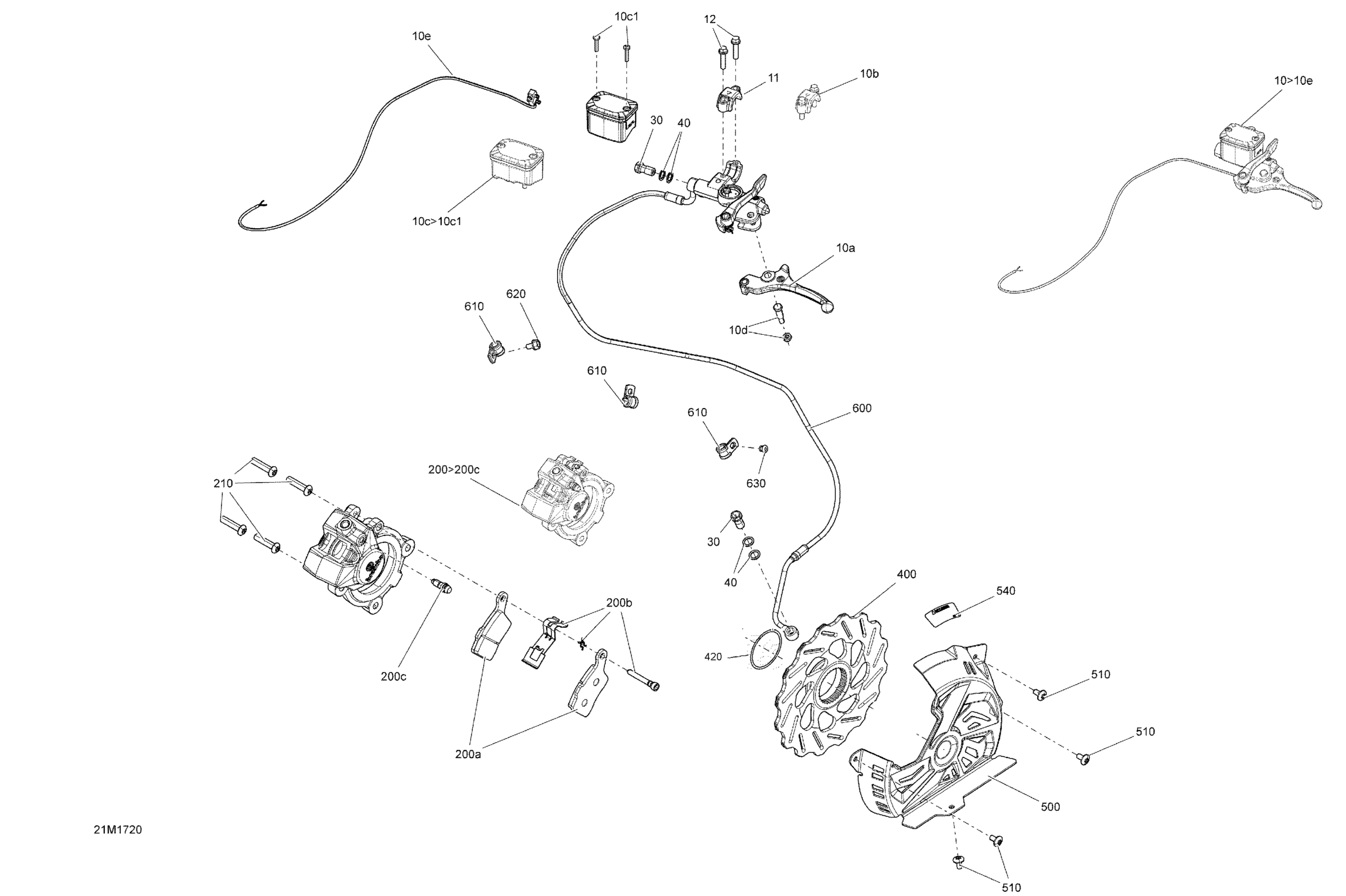

Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC, 2017 06- Brakes - All Models Diagram

Description

Price

10>10e

Master Brake Cylinder | Includes 10 to 10f

507032728

$349.99

10a

Lever With Parking Lock

507032476

$99.99

10b

Clamp And Screw Kit

507032477

$23.99

10c>10c1

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

10c1

Screw M4 X 20

415129356

$2.22

10d

Pin Ass'y

415030000

$19.99

10e

Microswitch

507032601

$72.99

Clamps | Includes 75a to 75b

719000049

$14.83

Hex. Flange Screw M6 X 25

250000447

$2.11

Banjo Bolt

507032551

$5.61

Copper Washer

705601628

$4.44

200>200c

Brake Caliper | Includes 200 to 200c

507032720

$349.49

200a

Brake Pads Kit

507032473

$52.99

200b

Brake Spring Kit

507032722

$37.99

200c

Bleeder

507032475

$19.99

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

400

Disk

507032554

$222.49

420

O-Ring

293300134

$2.32

500

Disk Protector

507032588

$48.99

510

Torx Truss Screw M6 X 12

250000767

$2.00

540

Engine Guard Warning Decal

516007652

$0.01

600

Brake Hose

507032625

$58.49

610

Clamp

293650256

$5.49

620

Hex. Flange Screw M6 X 10

210261040

$1.48

630

Pop Rivet 3/16"

390402400

$0.35
