Description

Price

1

Fixed Flange Ass'y

417224332

$209.99

2

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abg

417224610

$359.99

4a

Bushing

293250389

$21.99

4b

Circlip

293370137

$3.28

4c

Back Torque Roller

417224153

$16.99

4d

Pulley Roller Ext

417224916

$31.99

4e

Axle - 8mm

417224277

$10.49

4f

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

6>6e

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$209.99

6a

Spring Guide

417224002

$14.99

6b

Roller Pulley Ass'y

417224947

$35.99

6c

Axle - 10mm

417224204

$10.49

6d

Thrust Washer

417224868

$2.32

6e

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

8

Clutch Spring

417224013

$28.49

10

Seat Spring

417224003

$10.38

11

Circlip

293370116

$3.28

12a

Ramp 968

417224227

$32.99

12b

Molded Cam

417224113

$8.89

12c

RH Lever

417224086

$9.10

12d

LH Lever

417224114

$5.61

12e

Pivot 33mm

417224221

$5.79

13

Pin Ramp

417224694

$10.49

14

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

16

VIbration Damper

417224682

$149.99

18

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

40

Warning Decal

516007667

Unavailable

100>100d

Kit Fixed Flange Assembly | Includes 100 to 100d This part replaces 417127400.

861805529

$518.99

100a

Pulley Roller

417127016

$24.49

100b

Pivot Stud

417127294

$14.49

100c

Lock Washer 8 mm

250200009

$2.11

100d

Spring Pin

250400070

$2.00

110>110b

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

110a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

110b

Circlip

293370049

$4.99

120>120b

Cam Ass'y | Includes 100c to 100c3

417127325

$159.49

120a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

120b

Circlip

293370049

$4.99

130

Green, Spring

417127137

$41.49

140

Swivel Abutment

417127116

$9.39

150

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

155

Calibration Ass'y

415129604

$21.49

160

Socket Screw M5 X 25

205052544

$1.68

170

Flat Washer M5

234051410

$0.53

185

Elastic Stop Nut M5

232551414

$0.87

190

Washer

417127155

$8.26

195

Ball Bearing

504152574

$35.99

200

Drive Belt

417300531

$199.99

300

Belt Guard

417300479

$77.99

330

Bracket

417300494

$5.49

340

Avex Rivet

390909200

$0.30

360

CVT Air Duct

417300533

$28.99

365

Acoustic Panel

417300538

$46.99

370

Pop Rivet 3/16"

293150103

$0.55

380

Black, Dart

414644300

$0.98

390

Foam

417300509

$11.49

500

Belt Guard Bracket

417300482

$14.49

505

Insert M5 X 0.8

293450268

$2.09

510

Torx Screw M5 X 14

250000742

$1.47

520

Hair Pin

114045200

$11.11

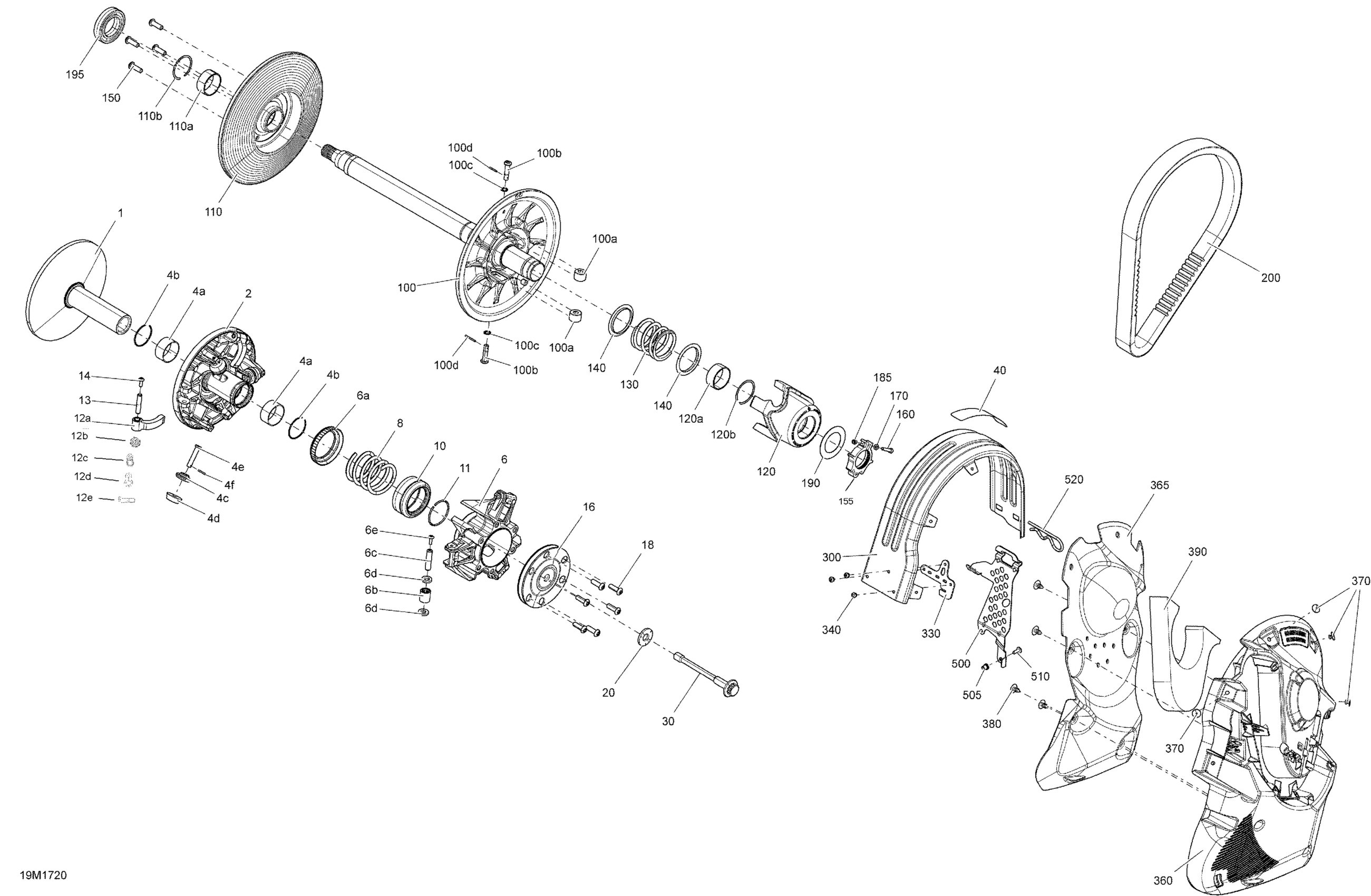

Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC, 2017 05- Pulley System - All Models Diagram

Fixed Flange Ass'y

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abg

Bushing

Circlip

Back Torque Roller

Pulley Roller Ext

Axle - 8mm

Spring Pin 2.6MM X 20.5MM

Spider Drive Pulley | Includes 10a3 to 10a3h

Spring Guide

Roller Pulley Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Seat Spring

Circlip

Ramp 968

Molded Cam

RH Lever

LH Lever

Pivot 33mm

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

VIbration Damper

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Pulley Drive Bolt M14 X 144

Warning Decal

Kit Fixed Flange Assembly | Includes 100 to 100d This part replaces 417127400.

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Green, Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Bracket

Avex Rivet

CVT Air Duct

Acoustic Panel

Pop Rivet 3/16"

Black, Dart

Foam

Belt Guard Bracket

Insert M5 X 0.8

Torx Screw M5 X 14

Hair Pin
