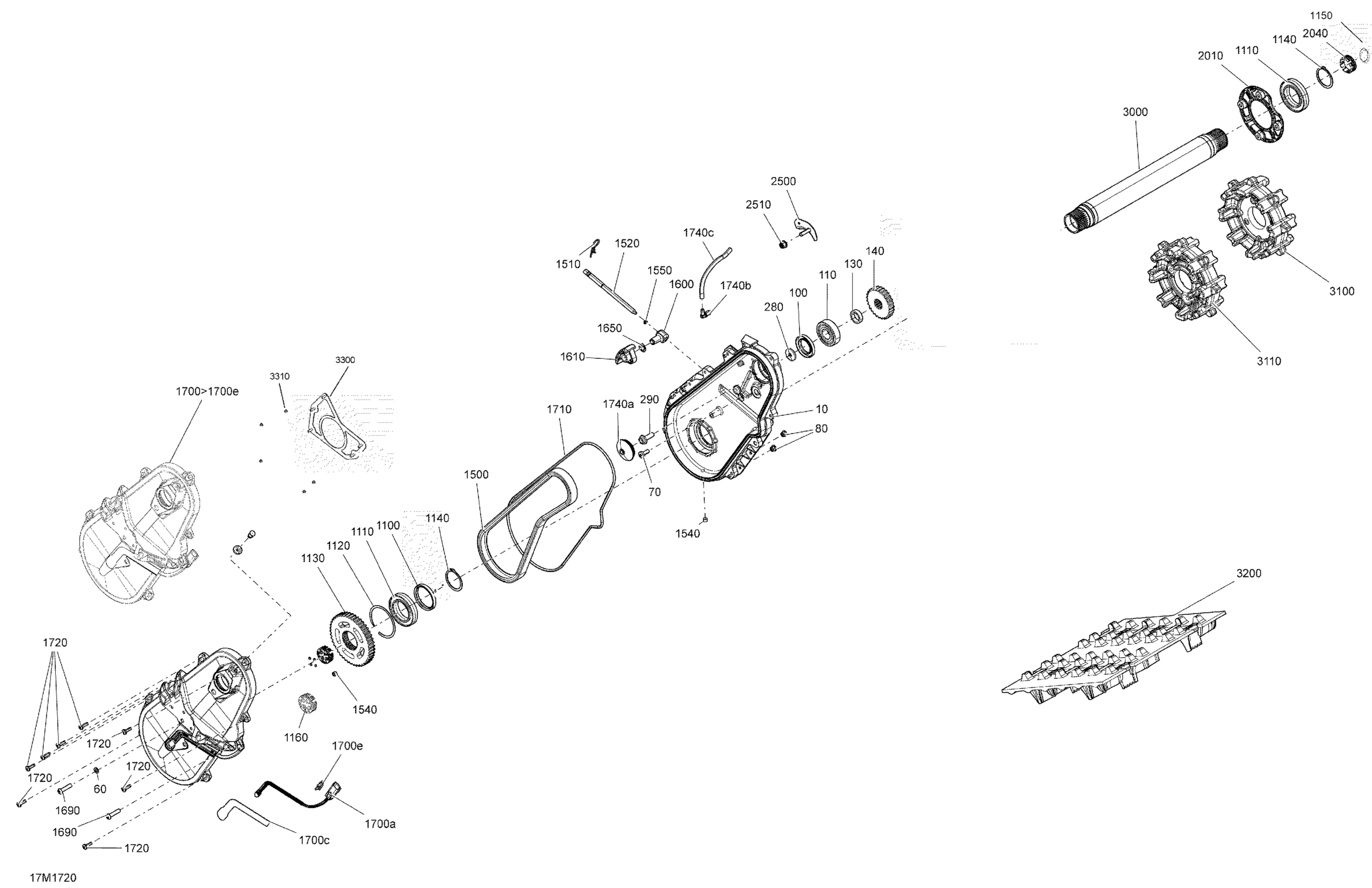

Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC, 2017 Drive System - All Models Diagram

#

Description
Price

10

Chaincase Ass'y

504153718

$311.91

60

Washer

504082900

$2.51

60

Washer

504082900

$2.51

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.40

80

Flange Elastic Nut M6

233261434

$4.15

100

Oil Seal

293200158

$12.15

110

Ball Bearing

293350115

$10.82

130

Shim

504152628

$8.15

140

Sprocket 25 Teeth

504153912

$41.01

280

Spring Washer M10

504152784

$6.07

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

1100

Oil Seal

293200159

$12.73

1110

Ball Bearing

293350059

$29.82

1120

Circlip

504152582

$8.45

1130

Kit Sprocket This part replaces 504152593.

861805538

$148.48

1140

Circlip

504152572

$6.07

1150

O-Ring

293300201

$0.96

1160

Magnetic Cap Ass'y | Includes 1160 to 1160a

504153696

$25.34

1160a

Magnetic Cap

504153697

$2.03

1500

Drive Chain, 108 Links

504152631

$143.25

1510

Hair Pin

414575600

$1.73

1520

Adjustment Screw

504153760

$23.10

1540

Hex. Countersunk Drain Plug

250500013

$6.58

1550

O-Ring

293300202

$0.96

1600

Tensioner

504153559

$15.64

1610

Slider Chain

504153312

$65.64

1650

Circlip

293370105

$2.00

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

1700>1700e

Chain Case Cover Ass'y | Includes 1700 to 1700c

504153891

$174.60

1700a

Not Available As Spare Part - Friction Washer

Unavailable

1700c

Plate

504153317

Unavailable

1700e

Clip Connector

515178223

$1.87

1710

O Ring

293300214

$11.18

1720

Torx T-30 Pan HD Taptite M6X20

250001012

$0.52

1740a

Cap

504152860

$18.63

1740b

Male Connector

414580700

$3.88

1740c

Polyurethane Hose 10000Mm Long

219704410

$52.96

2010

Retaining Ring

504153886

$17.88

2040

Magnetic Cap

504153697

$2.03

2500

BEARING HOUSING - Call your local BRP dealership

504153099

Unavailable

2510

Hex. Flange Elastic Nut M8

233281414

$1.31

3000

Drive Axle Ass'y | Includes 3000 to 3000b

504153949

$380.57

3100

Not Available As Spare Part - Friction Washer

Unavailable

3110

Not Available As Spare Part - Friction Washer

Unavailable

3130

Collar Ass'y

504153364

Unavailable

3160

Hex. Flange Screw M8 X 30

207583087

Unavailable

3180

Washer

250200111

$2.00

3190

Socket Head Screw M8 X 22

250000414

$2.00

3200>3200b

Track Ass'Y 15X137X1.2 | Includes 3200 to 3200b

504152905

$929.99

3200a

Track Guide | Track Width 16''

415129528

$3.03

3200b

Cleat

504152651

$7.97

3300

Kit Plate Ass'y

861805514

$70.87

3310

Flange Elastic Nut M6

233261434

$4.15
