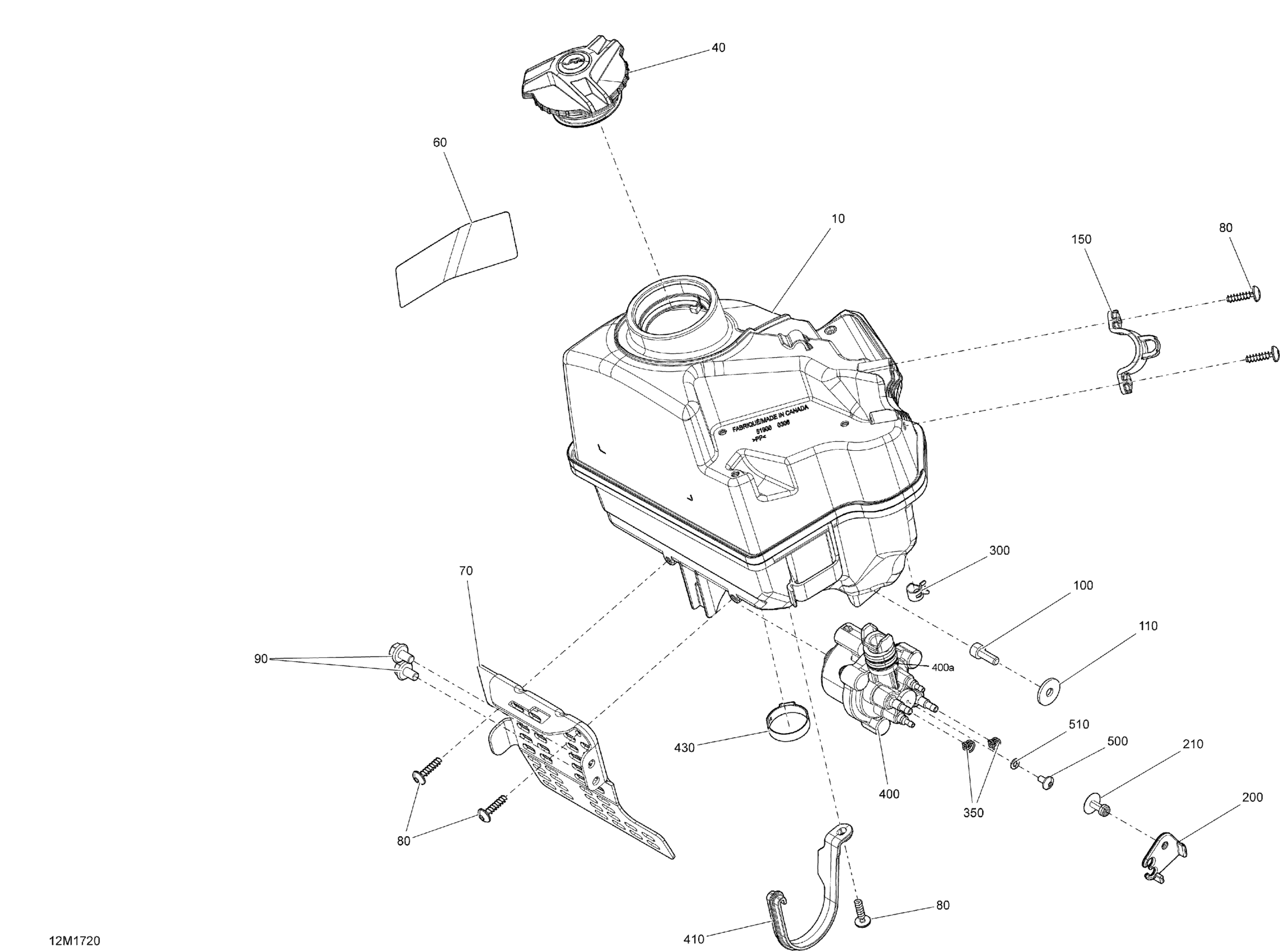

Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC, 2017 Oil System - All Models Diagram

Description

Price

Oil Tank

519000346

$84.30

Cap Ass'y

519000358

$17.88

Warning Decal / Oil Notice

516007443

Unavailable

Oil Level Decal

516008206

$9.19

Support

519000350

$12.51

Torx Screw Truss Head K50X20 T20

250000760

$2.00

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76

100

Socket Screw M6 X 16, Scotch Grip

205561644

$0.96

110

Flat Washer

224061201

$1.27

150

Clamp

519000320

$4.51

200

Hose Protector

519000322

$2.07

210

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

300

Spring Clamp

414420700

$0.66

350

Hose Clamp

293650252

$4.25

400>400a

Hydraulic Pump | Includes 400 to 400a

519000375

$212.66

400a

O-Ring

415130335

$14.90

410

Bracket

519000318

$3.10

430

Crimp Clamp

293650099

$4.07

500

Screw-Torx Button Head M4 X 8

250000741

$1.06

510

Lock Washer 4 mm

234141601

$1.06
