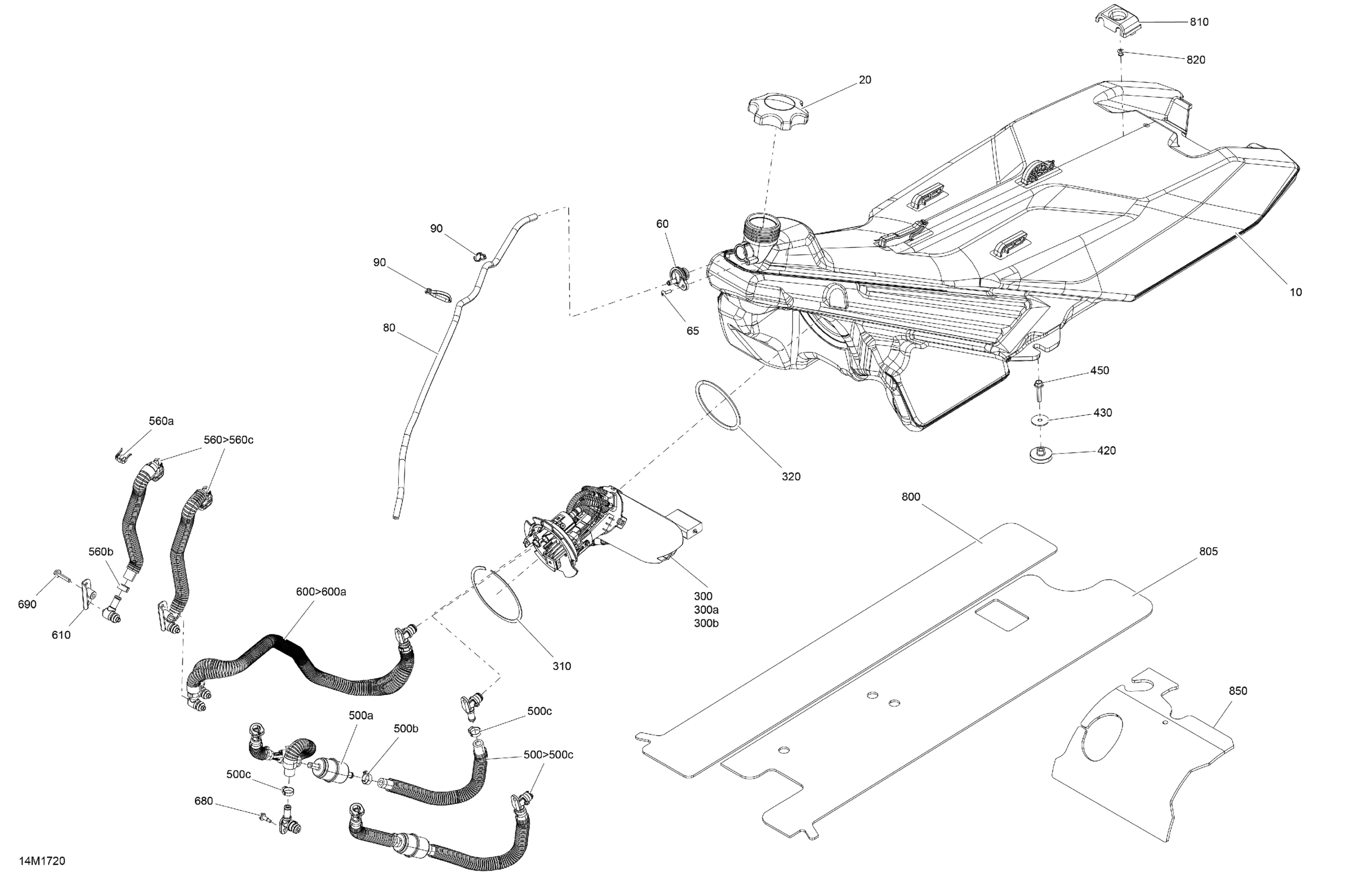

Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC, 2017 Fuel System - All Models Diagram

#

Description
Price

10

Fuel Tank

513033893

$261.91

20

Fuel Tank Cap

513033860

$22.36

20

Fuel Tank Cap | Europe Models

513033861

$24.60

60

Check Valve

513033849

$34.30

65

Truss Torx Screw K40 X 16

250000918

$2.00

80

HOSE, POLYURETHANE - Call your local BRP dealership

415080200

Unavailable

90

Tie-Rap 180 mm

414115200

$0.10

300

Fuel Pump Ass'y | Includes 300a to 300a3

513034236

$166.49

300a

Fuel Level Sensor

415131069

Unavailable

300b

Filter

415130508

Unavailable

300

Harness

515178468

$75.34

310

Circlip

513033798

$12.45

320

O-Ring

513033862

$17.13

420

Bushing

513033807

$7.25

430

Washer | Not Shown

503193995

$4.25

450

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

500>500c

Kit Hose Assy This part replaces 513033974.

861805533

$144.00

500a

Fuel Filter

513034047

$35.99

500b

Oetiker Clamp

293650125

$3.09

500c

Oetiker Clamp

293650140

$2.46

560>560c

Hose Ass`y | Includes 560 to 560c This part replaces 513033922.

415130220

$144.00

560a

Locking Clip

415130137

Unavailable

560b

Oetiker Clamp

293650125

$3.09

560c

Oetiker Clamp

293650140

$2.46

600>600a

Hose Ass'y | Includes 600 to 600c

513033906

$144.00

600a

Oetiker Clamp

293650140

$2.46

610

Braket Ass'y

513033897

$14.90

680

Hex. Flange Screw M5 X 16

250000911

$0.81

690

Hex. Flange Screw M5 X 25

207552544

$5.06

800

RH Insulated Foam

513033845

$10.45

805

LH Insulated Foam

513033855

$14.90

810

Tank Guide

513033826

$2.06

820

Pop Rivet 3/16"

390402200

$0.30

850

Insulated Front Foam

513033896

$14.90
