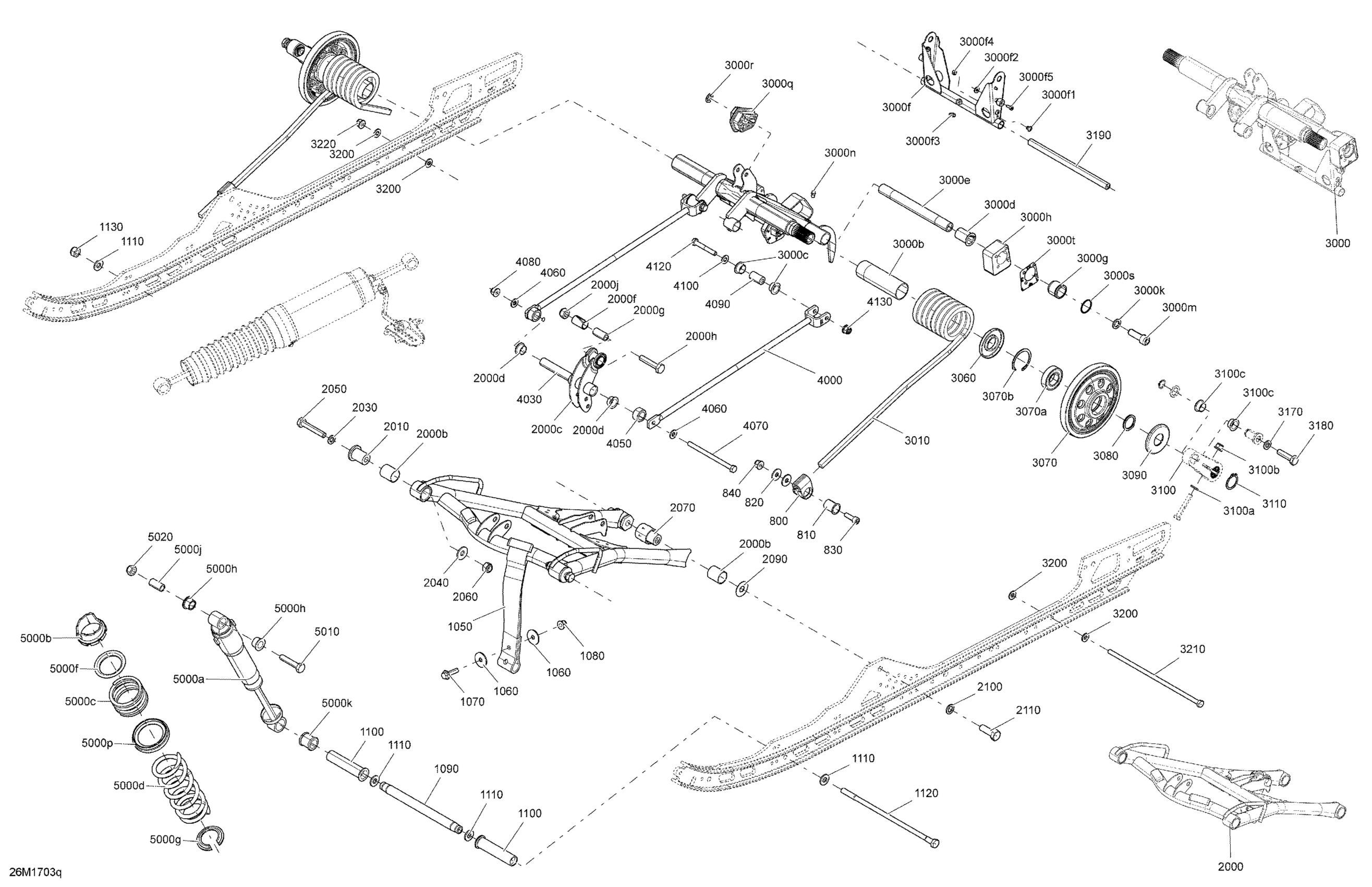

Ski-Doo RENEGADE - 2-STROKE - 600HO E-TEC, 2017 Rear Suspension - rMotion with Air Ride - Package Enduro - Superior Diagram

#

Description
Price

800

Spring Support Kit

861805547

$8.14

810

Spring Support Kit

861805547

$8.14

820

Flat Washer 8 mm

234082410

$1.11

830

Socket Screw M8 X 25

205082554

$1.74

840

Elastic Flange Nut M8

233281466

$0.83

1050

Stopper Strap

503192759

$25.35

1060

Flat Washer 8 mm

250200128

$1.74

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

1080

Elastic Flange Nut M8

233281466

$0.83

1090

Pivot Axle

503193435

$38.43

1100

Center Bushing

503191259

$8.97

1110

Flat Washer

250200143

$2.63

1120

Bolt M10 X 251MM

503193227

$16.12

1130

Flange Elastic Nut M10

233201466

$2.63

2000>2000j

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

2000b

Bushing

503191554

$5.88

2000c

Rocker

503192531

$78.43

2000d

Swivel Bushing

503191555

$5.71

2000f

Bushing

503193037

$15.35

2000g

Bushing | Includes 240d to 240d1

503189282

$4.18

2000h

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.68

2010

Axle

503190698

$17.66

2030

Washer

503192496

$0.75

2040

Washer

503191926

$1.57

2050

Hex. Cap Screw M10 X 60

207006056

$6.18

2060

Elastic Locking Nut M10

233601466

$1.74

2070

Lower Axle

503191966

$15.35

2090

Washer

503190656

$2.91

2100

Washer

503192491

$4.38

2110

Hex. Cap Screw M12 X 35

250000537

$2.63

3000>3000U

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$267.66

3000b

Bushing

503192767

$15.26

3000c

Swivel Bushing

503191555

$5.71

3000d

Cushion

503191640

$5.71

3000e

Lower Shaft

503192981

$17.66

3000f>3000f5

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$118.43

3000f1

Pop Rivet 3/16"

390402200

$0.26

3000f2

Flat Washer

517225900

$0.17

3000f3

Grease Fitting

408200700

$2.80

3000f4

Elastic Stop Nut M5

232551414

$0.72

3000f5

Socket Head Screw M4X 10

205041060

$1.74

3000g

Guide Block

503192749

$5.85

3000h

LH Cam Block

503192918

$12.65

3000h

RH Cam Block

503192919

$12.65

3000k

Washer

503189276

$3.20

3000m

Socket Head Screw M12 X 35

205523554

$4.28

3000n

Grease Fitting

408200700

$2.80

3000q

LH Cam Adjuster

503191565

$13.95

3000q

RH Cam Adjuster

503191566

$13.95

3000r

E-Circlip

293370013

$0.62

3000s

O-Ring

503192921

$2.25

3000t

LH Block Sticker Decal

516004900

$16.12

3000t

RH Block Sticker Decal

516004901

$16.12

3010

LH Spring

503192081

$66.89

3010

RH Spring

503192080

$66.89

3060

Labyrinth Seal

503190434

$4.29

3070>3070b

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$46.12

3070a

Ball Bearing

503193548

$16.89

3070b

Retaining Ring

415129780

$13.88

3080

Axle Spring

503189146

$7.54

3090

Labyrinth Ring

503192592

$4.66

3100>3100c

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

3100a

Washer

503192494

$3.11

3100b

Elastic Flange Nut M8

233281466

$0.83

3100c

Swivel Bushing

503191555

$5.71

3110

Retaining Ring

293370080

$2.12

3170

Washer

503192496

$0.75

3180

Cap Screw Hex. M10 X 40

207204056

$6.18

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

Link Rod

503193058

$18.43

4030

Axle Bar

503193063

$37.66

4050

Spacer

503193064

$8.74

4060

Washer

503192494

$3.11

4070

Screw M8 X 120, 10.9

503193499

$3.29

4080

Elastic Flange Nut M8

233281466

$0.83

4090

Axle Bar

503192555

$11.40

4100

Washer

503192494

$3.11

4120

Hex. Screw M8 X 55

207085586

$6.11

4130

Elastic Flange Nut M8

233281466

$0.83

5000a

Center Shock Ass'y

503193208

$238.43

5000b

Adjustment Cam

505073625

$12.18

5000c

Black, Spring (51mm) Short

503193837

$66.89

5000d

Black, Spring (189mm) Long

503193067

$88.43

5000f

Spring Guide

503191872

$2.18

5000g

Spring Stopper

503194270

$16.89

5000h

Urethane Bushing

503189117

$6.88

5000j

Bushing | Includes 240d to 240d1

503189282

$4.18

5000k

Bushing

503189271

$10.46

5000p

Spring Spacer

503191281

$7.66

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5020

Elastic Locking Nut M10

233601466

$1.74
