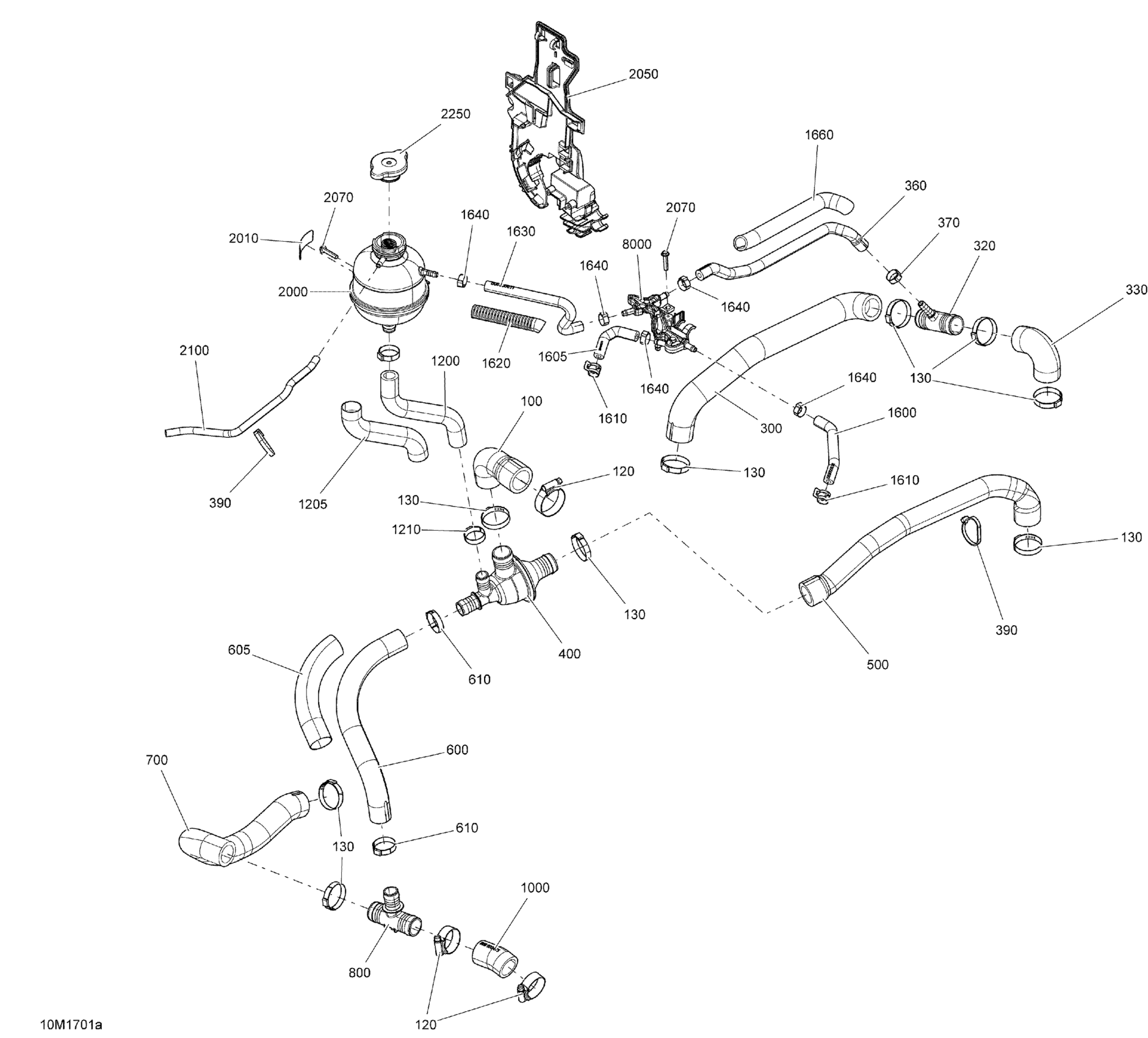

Ski-Doo RENEGADE - 2-STROKE - 600HO E-TEC, 2017 01- Cooling System Diagram

Description

Price

100

Engine Outlet Hose

509000678

$19.99

120

Aba Gear Clamp, 26-38 MM

509000443

$12.72

130

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

300

Radiator Hose

509000670

$36.99

320

T-Fitting

509000510

$13.16

330

Radiator Hose This part replaces 509000671.

509001066

$20.99

360

Bleeder Hose

509000906

$24.49

370

Crimp Clamp, 15.3-706R

293650047

$3.29

390

Tie-Rap 180 mm

414115200

$0.11

400

Thermostat Housing

509000499

$42.99

500

Thermostat Outlet Hose

509000679

$25.99

600

Bypass Hose

509000672

$24.99

605

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

610

Crimp Clamp

293650099

$4.29

700

Radiator Hose

509000673

$23.49

800

T-Fitting

509000372

$10.33

1000

Engine Inlet Hose This part replaces 509000675.

509001067

$17.53

1200

Filling Hose

509000812

$23.49

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1600

Bleeder Hose

509000818

$11.60

1605

Bleeder Hose

509000819

$11.60

1610

Spring Clamp

293650210

$5.39

1620

Was 409901800 Tubing (13 mm)

219704400

$14.49

1630

HOSE - Call your local BRP dealership

509000817

$10.99

1640

Oetiker Clamp

293650046

$2.89

1660

Tubing 16 Mm 1000Mm Long

219704408

$7.49

2000

Coolant Tank

509000802

$73.99

2010

Warning Decal

516005904

Unavailable

2050

TANK-SUPPORT - Call your local BRP dealership

509000973

Unavailable

2070

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2250

Radiator Pressure Cap

509000180

$20.49

8000

Bleed Collector

509000803

$24.99
