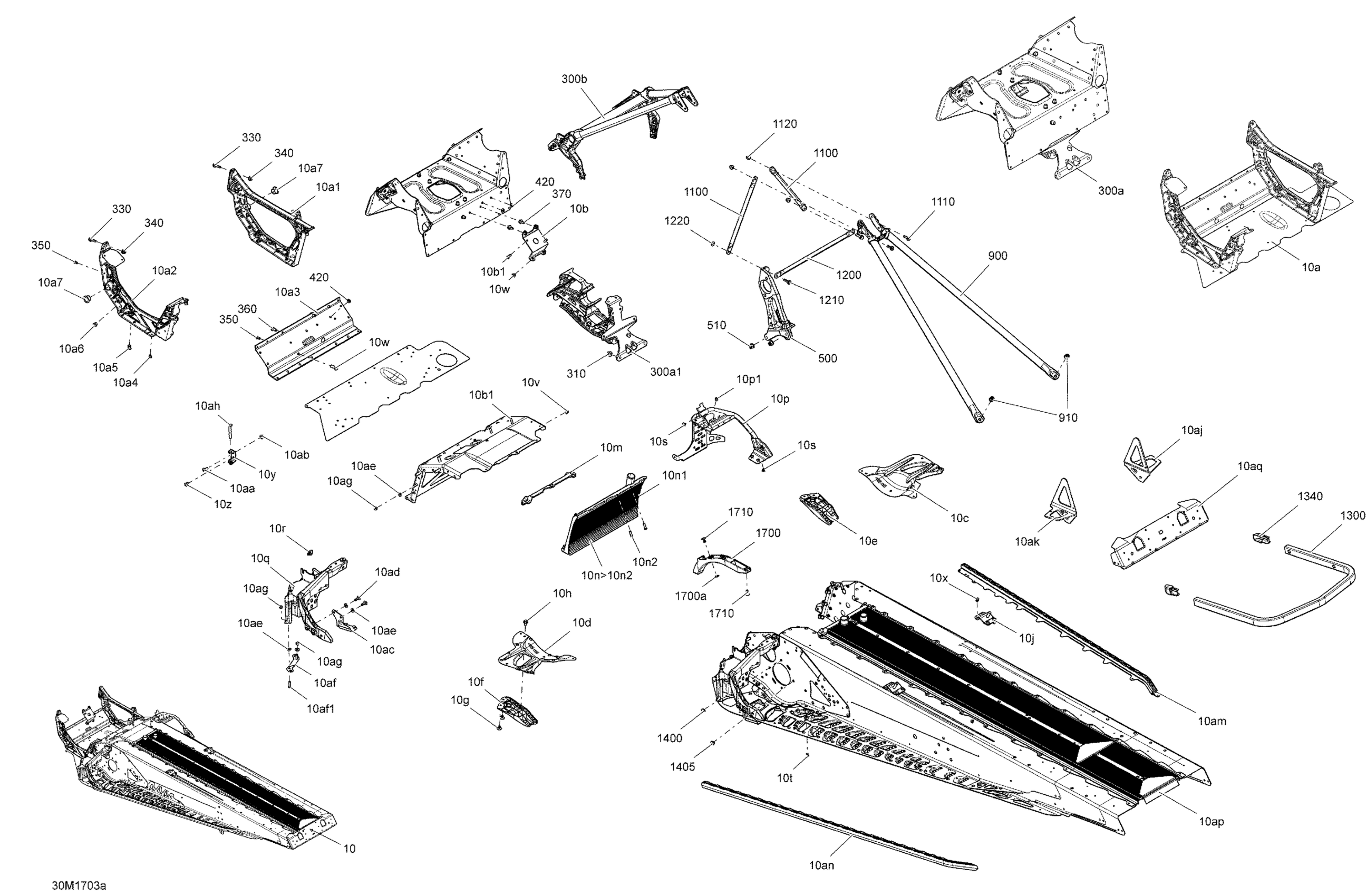

Ski-Doo RENEGADE - 2-STROKE - 600 CARB, 2017 09- Frame Diagram

FRAME 137 RENEGADE - Call your local BRP dealership | Includes 10 to 10av

415130276

Unavailable

E Module | Includes 10n to 10at

518327567

$469.99

RH Member

518326795

$284.99

LH Member

518326796

$229.99

Front Member

518326198

$64.99

Stavex Rivet

293150144

$0.82

Hemlock Rivet 6.5 mm

293150120

$7.41

Hemlock Rivet, 6.5 mm

293150119

$4.29

Leg Cushion

505073317

$8.66

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

Clinch Stud M6 X 20

250300027

$2.09

RH Reinforcement

518324874

$27.99

LH Reinforcement

518324875

$27.99

RH Deflector, Black Polypropylene

518325782

$13.99

LH Deflector, Black Polypropylene

518325783

$13.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

RH Rear Base

518325973

$21.99

LH Rear Base | Includes 10v to 10x

518325974

$21.99

Seal

518326656

$9.19

Front Radiator | Includes 10b to 10b2

518326485

$444.99

Front Radiator | Includes 10b to 10b2

518326485

$444.99

Clinch Stud M6 X 20

250300027

$2.09

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

Avex Rivet

390909200

$0.30

LH Stirup

518326820

$37.99

Panel Nut M5 X 0.8

250000958

$4.23

Full Moon Dart 5 mm

293730042

$2.21

Avex Rivet

390909100

$0.30

Henrob Rivet

293150146

$2.09

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

U-Attach

518326961

$10.99

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Tork Screw M6 X 16

250000534

$2.11

Hex. Flange Nut M6

233061414

$1.68

Support

518326960

$12.99

Tork Screw M6 X 18

250000536

$2.11

Flat Washer

250200039

$0.74

Attach | Includes 10n to 10p

518326986

$12.99

Clinch Stud M6 X 20

250300027

$2.09

Elastic Stop Nut M6

232561414

$0.55

Torx Screw M8 X 55

250000535

$3.17

LH Bracket

518328790

$39.99

RH Bracket

518328789

$39.99

RH ROLLER - Call your local BRP dealership

518325377

$69.99

LH Roller

518325378

$76.99

Rear Radiator 137'' | Includes 10ar to 10as

518327588

$783.99

Rear Cap

518327105

$22.49

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

Front Suspension Support

518327487

$289.99

Front Member

518326970

$299.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Monobolt Rivet, 4.8 mm

293150191

$0.99

Monobolt Rivet 6.4

293150182

$3.09

Hex. Flange Screw M6 X 16

207661644

$0.74

Black Dart 5 mm

293730053

$4.55

Pulley Support

518328346

$129.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Rear Member

518326559

$264.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Lateral Column Support

518325114

$22.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Center Column Support

518325115

$22.49

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Clear Rear Bumper

518324980

$99.49

Full Moon Cap

520000567

$10.99

Full Moon Dart 8 mm

293730041

$2.21

Full Moon Dart 10 mm

293730059

$4.55

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

Washer

517124300

$0.19

Pop Rivet 3/16”

293150108

$1.19

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37
