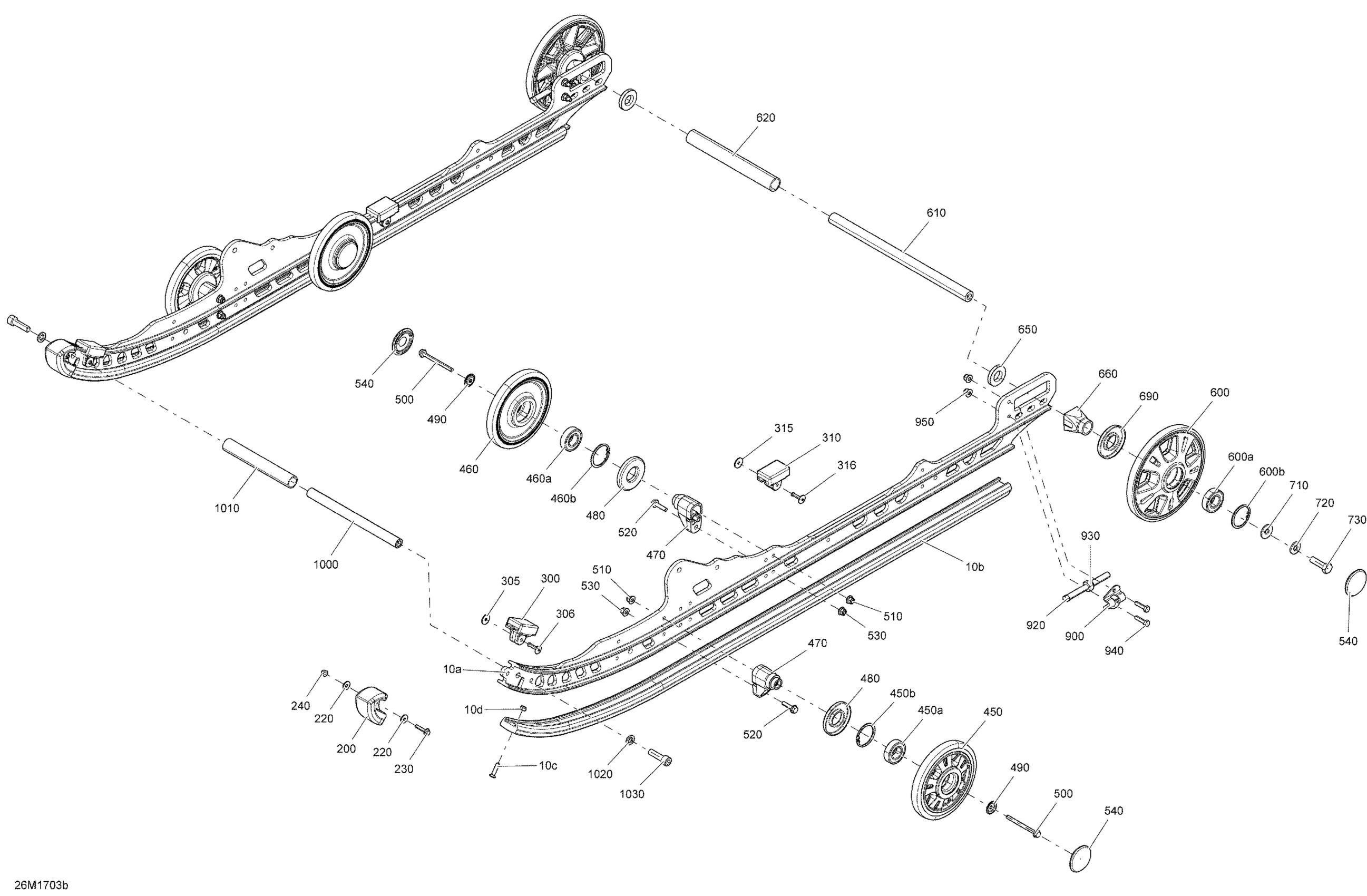

Ski-Doo RENEGADE - 2-STROKE - 600 CARB, 2017 08- Rear Suspension - Inferior Diagram

Rail Suspension 137

503195714

$244.99

Slider 137

503191619

$34.99

Phillips Screw M6 X 25

208562531

$2.11

Elastic Stop Nut M6

232561414

$0.55

Runner Protector

503192299

$24.99

Washer

250200140

$1.01

Hex. Flange Screw M5 X 25

207652544

$0.50

Hex. Flange Elastic Nut M5

233251414

$1.04

Rubber Stopper

503190576

$12.99

Washer

503191273

$1.35

Pop Rivet 3/16"

293150013

$1.37

Rubber Stopper

503190576

$12.99

Washer

503191273

$1.35

Pop Rivet 3/16"

293150013

$1.37

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

Ball Bearing | Package-STD

503190396

$14.30

Retaining Ring

415129371

$12.01

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

Ball Bearing | Package-STD

503190396

$14.30

Retaining Ring

415129371

$12.01

Casted Support

503193894

$16.49

Labyrinth Seal

503190434

$6.09

Wheel Cup M6

503191820

$4.99

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Elastic Nut M6

233261466

$2.00

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Elastic Nut M6

233261466

$2.00

Black, Wheel Cap

503192771

$2.39

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$51.99

Ball Bearing | Package-STD

503190396

$14.30

Retaining Ring

415129371

$12.01

Rear Axle

503190429

$59.99

Spacer

503191108

$19.99

Washer

503190432

$14.22

Rear Wheel Spacer

503190428

$8.14

Labyrinth Seal

503190434

$6.09

Washer

503191910

$2.32

Conical Spring Washer 10 mm

234201474

$1.69

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.44

Tensioner

503192583

$8.29

Hex Screw M10 x 100

230100054

$6.45

Elastic Locking Nut M10

233601466

$2.11

Hex Screw M6 X 25

250000619

$1.01

Hex. Flange Elastic Nut M6

233261466

$2.00

Axle Strap

503191260

$30.99

Spacer

503196943

$10.99

Washer

503192496

$0.77

Socket Head Screw M10 X 35

205503554

$7.51
