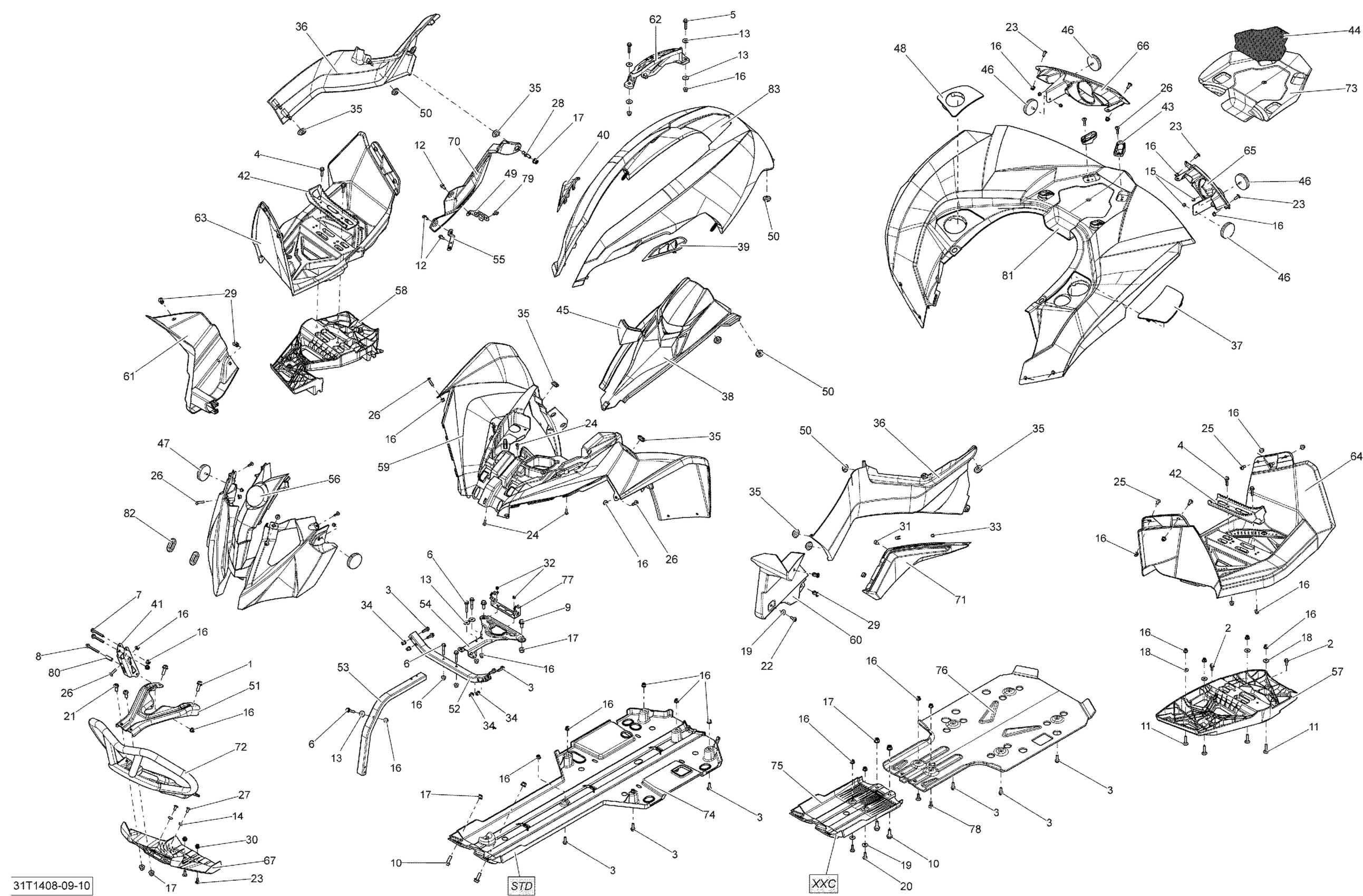

Can-Am Renegade 1000 EFI STD, XXC, 2014 Body And Accessories Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

2

Hex. Flange Screw M6 X 16

207661654

$2.11

3

Hex. Flange Screw M6 X 20

207662084

$1.69

3

Hex. Flange Screw M6 X 20

207662084

$1.69

4

Hex. Flange Screw M6 X 25

207662554

$1.48

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Hex. Flange Screw M6 X 35

207663544

$0.90

7

Hex. Flange Screw M6 X 45

207664544

$1.46

8

Hex. Flange Screw M6 X 50

207665044

$4.12

9

Hex. Flange Screw M8 X 20

207682044

$1.15

10

Hex. Flange Screw M8 X 25

207682544

$1.35

10

Hex. Flange Screw M8 X 25

207682544

$1.35

11

Carriage Bolt M6 X 30

207763044

$4.44

12

Hex. Flange Screw M6 X 12

210261250

$1.90

13

Flat Washer

224061201

$1.37

14

Square Nut M6

232862412

$1.49

15

Flange Elastic Nut M5

233251434

$2.00

16

Flange Elastic Nut M6

233261434

$4.44

17

Hex. Flange Elastic Nut M8

233281434

$2.11

18

Flat Washer 6 mm

234062410

$0.77

19

Stainless Steel Flat Washer

234062670

$2.11

20

Torx Screw M6 X 20

250000712

$2.11

21

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

22

Torx Screw M6 X 20

250000722

$1.68

23

Torx Truss Screw M6 X 16

250000721

$1.69

24

Torx Screw K50 X 16

250000720

$1.69

25

Torx Screw M6 X 16

250000755

$0.87

26

Torx Screw M6 x 25

250000284

$2.11

27

Torx Screw M6 X 12

250000454

$4.44

28

Ball Head Stud

250300039

$7.51

29

Tuflok Plastic Rivet

293150230

$1.47

30

Threaded Insert M6 X 1.0

250100242

Unavailable

31

Rubber Bumper

293830005

$8.09

32

Pop Rivet 3/16"

390402400

$0.35

33

Clip

414479100

$1.90

34

Insert

293450275

$12.99

35

Oval Washer

705000321

$5.61

36

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705002946

Unavailable

36

Black, LH Lateral Panel

705002958

$43.99

36

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705002949

Unavailable

36

Black, RH Side Panel

705002959

$43.99

37

LH Rear Body Panel Cap

705017923

$13.99

38

Dashboard

705003556

$46.99

39

LH Grille

705008137

$20.99

39

LEFT GRILL - Call your local BRP dealership

705008139

Unavailable

40

RH Grille

705008138

$20.99

40

RIGHT GRILL - Call your local BRP dealership

705008140

Unavailable

41

Support

705002282

$31.99

42

Footrest

705002326

$43.99

43

Hook

705017925

$16.99

44

Rear Carpet

705002343

$19.49

45

Cap

705002353

$15.49

46

Red Reflector

705011221

$14.49

47

Amber Reflector | Except Europe Model

705011222

$14.49

48

RH Rear Body Panel Cap

705017924

$15.99

49

Engine Cover Support

705011461

$10.49

50

Grommet

705003264

$4.09

51

Bumper Support

705003505

$39.99

52

Bent Sectional Tube

705016093

$104.99

53

Front Bent Sectional Tube

705016094

$104.99

54

Bracket

705003599

$24.49

55

Engine Cover Support

705003646

$9.23

56

Front Facia

705003948

$55.99

57

LH Footboard

705004176

$49.99

58

RH Footboard

705004177

$49.99

59

YELLOW FRONT FENDER KIT - Call your local BRP dealership

715002157

Unavailable

59

Deep Black Front Fender Kit | Xxc Model

715002154

$139.99

59

Deep Black Front Fender Kit | Model-XXC Europe

715002155

$139.99

59

Deep Black Front Fender Kit | Model-XXC Europe

715002155

$139.99

60

LH INNER FENDER - Call your local BRP dealership

705004307

$12.99

61

RH INNER FENDER - Call your local BRP dealership

705004308

Unavailable

62

Lever Indicator | 1000

705004416

$17.49

63

RH Footboard/Fender

705004729

$134.99

64

LH Footboard/Fender

705004730

$134.99

65

LH Rear Facia | North America, International

705004731

$19.99

65

LH Rear Facia | Europe

705004927

$15.99

66

RH Rear Facia | North America, International

705004732

$19.99

66

RH Rear Facia | Europe

705004926

$15.99

67

Front Bumper Plate

705004850

$19.99

70

Engine Cover

705004966

$14.49

71

Panel Extension

705004988

$15.49

72

Front Bumper

705011635

$280.99

73

Reflective Sheet

705005840

$9.39

74

Protective Plate Kit

715002374

$64.49

75

Skid Plate | XXC

705007820

$20.49

76

Ens Protec Cen.*Kit Cent. Skid | XXC

715002078

$138.99

77

Fuse Holder

710002482

$8.99

78

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

79

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

80

Spacer

705005809

$12.99

81

Yellow Rear Fender Kit | North America

715001881

$409.99

81

REAR FENDER KIT - Call your local BRP dealership | Xxc Model North America

715001887

Unavailable

81

Deep Black Rear Fender Kit | Model-XXC International

715002164

$409.99

81

Black Rear Fender Kit | Model-XXC Europe

715002165

$409.99

82

Oblong Grommet

705003668

$5.79

83

Yellow Central Pannel Kit

715001493

$104.99

83

YELLOW CENTRAL PANNEL KIT - Call your local BRP dealership | Model-International

715002171

Unavailable

83

YELLOW CENTRAL PANNEL KIT - Call your local BRP dealership | Model-International

715002171

Unavailable
