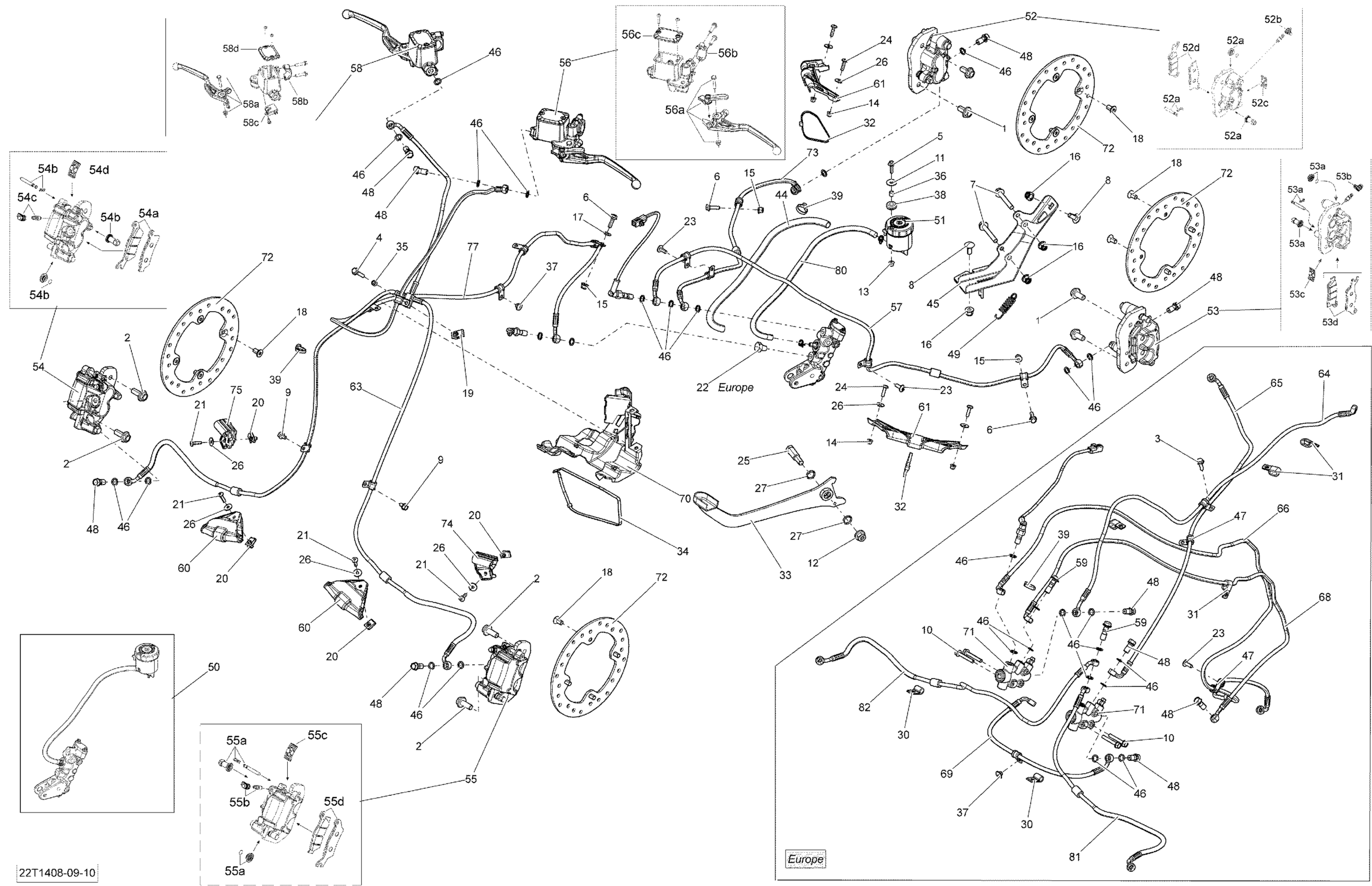

Can-Am Renegade 1000 EFI STD, XXC, 2014 Brakes Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 20

207502046

$2.11

2

Hex. Flange Screw M10 X 25

207502546

$2.11

3

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

4

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

5

Hex.Flange Screw M5 X 20

207652044

$1.90

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Screw M8 X 55

207685544

$5.39

8

Carriage Bolt, M8 X 20

207782044

$1.90

9

Hex. Flange Screw M6 X 10

210261040

$1.48

10

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

11

Flat Washer

224060201

$1.26

12

Hex. Flange Elastic Nut M10

233201436

$2.11

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Elastic Flange Nut M5

233251494

$2.11

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Flat Washer 6 mm

234062410

$0.77

18

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

18

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

19

Panel Nut M6 X 1.0

250100198

$2.11

20

Panel Nut M5 X 0.8

250000958

$4.23

21

Torx Screw M5 X 20

250000724

$1.69

22

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.29

23

Torx Screw M6 X 16

250000755

$0.87

23

Torx Screw M6 X 16

250000755

$0.87

24

Torx Screw M5 X 20

250000792

$2.11

24

Torx Screw M5 X 20

250000792

$2.11

25

Shoulder Screw M10

250000513

$6.77

26

Washer M5

250200025

$0.74

27

O-Ring

293300144

$3.82

30

Clamp

293650219

$0.90

31

Clamp

293650220

$0.90

32

Tie Wrap 368 mm

293750008

$1.04

33

Deep Black, Brake Pedal

705602163

$154.99

34

Tie Rap, 533 mm

293750047

$2.09

35

Bushing | DS 650 X

293900104

$5.50

36

Bushing

293900112

$10.06

37

Pop Rivet 3/16"

390406500

$0.88

38

Grommet

414036300

$2.79

39

Tie-Rap 180 mm

414115200

$0.11

44

Tubing 10 MM 1000MM Long

219704407

$2.79

45

Brake Pedal Bracket

705202000

$38.99

46

Copper Washer

705601628

$4.44

46

Copper Washer

705601628

$4.44

47

Clamp

293650256

$5.49

47

Clamp

293650256

$5.49

48

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

48

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

49

Brake Pedal Spring

705600792

$9.10

50

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

51

Oil Tank

705601020

$39.99

52

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

52a

Pin Set

705601016

$9.26

52b

Bleeding Screw

705601017

$6.35

52c

Retaining Spring

705601018

$7.55

52d

RH Organic Brake Pad Kit

705601014

$42.49

53

LH Rear Caliper Ass'y | Includes 47 to 51

705600860

$328.49

53a

Pin Set

705601016

$9.26

53b

Bleeding Screw

705601017

$6.35

53c

Retaining Spring

705601018

$7.55

53d

LH Organic Brake Pad Kit

705601015

$42.49

54

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

54a

RH Organic Brake Pad Kit

705601014

$42.49

54b

Pin Set

705601016

$9.26

54c

Bleeding Screw

705601017

$6.35

54d

Retaining Spring

705601018

$7.55

55

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

55a

Pin Set

705601016

$9.26

55b

Bleeding Screw

705601017

$6.35

55c

Retaining Spring

705601018

$7.55

55d

LH Organic Brake Pad Kit

705601015

$42.49

56

LH Front Master Cylinder Ass'y | Includes 11 to 14

705601431

$229.99

56a

Lever Set

705601013

$63.99

56a

Not Available As Spare Part - Friction Washer

Unavailable

56b

Clamp And Screw Kit

507032477

$23.99

56c

Cap Set

219800096

$21.99

57

Brake Line Ass'y | Includes 27 to 28

705600911

$50.99

58

RH Front Master Cylinder Ass'y | Includes 15 to 19

705601432

$294.99

58a

Lever Set

705601011

$71.99

58b

Clamp And Screw Kit

507032477

$23.99

58c

Kit Switch

705601012

$56.99

58d

Cap Set

219800096

$21.99

59

Banjo Bolt

705600958

$6.35

60

Hose Guard

705601893

$4.55

61

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

61

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

63

Front Brake Hose

705601489

$153.49

64

LH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 22 to 23

705601525

Unavailable

65

RH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 24 to 25

705600970

Unavailable

66

RH REAR BRAKE LINE ASS'Y - Call your local BRP dealership | Includes 32 to 33

705600971

Unavailable

68

OUTLET HOSE, MASTER CYLINDER - Call your local BRP dealership

705600980

$59.99

69

BRAKE LINE - Call your local BRP dealership

705600981

$34.99

70

Front Hose Bracket

705600983

$13.71

71

Splitter

705600994

$153.49

72

Disc Brake

705600999

$67.99

72

Disc Brake

705600999

$67.99

73

Brake Line Ass'y

705601002

$38.99

74

LH Hose Bracket

705601048

$4.55

75

RH Hose Bracket

705601049

$4.55

76

Bleeding Screw

705601051

$12.16

77

BRAKE LINE - Call your local BRP dealership

705601059

Unavailable

80

Oil Housing Hose

705601019

$15.87

81

LH Front Brake Hose

705601523

$55.99

82

RH Front Brake Hose

705601522

$55.99
