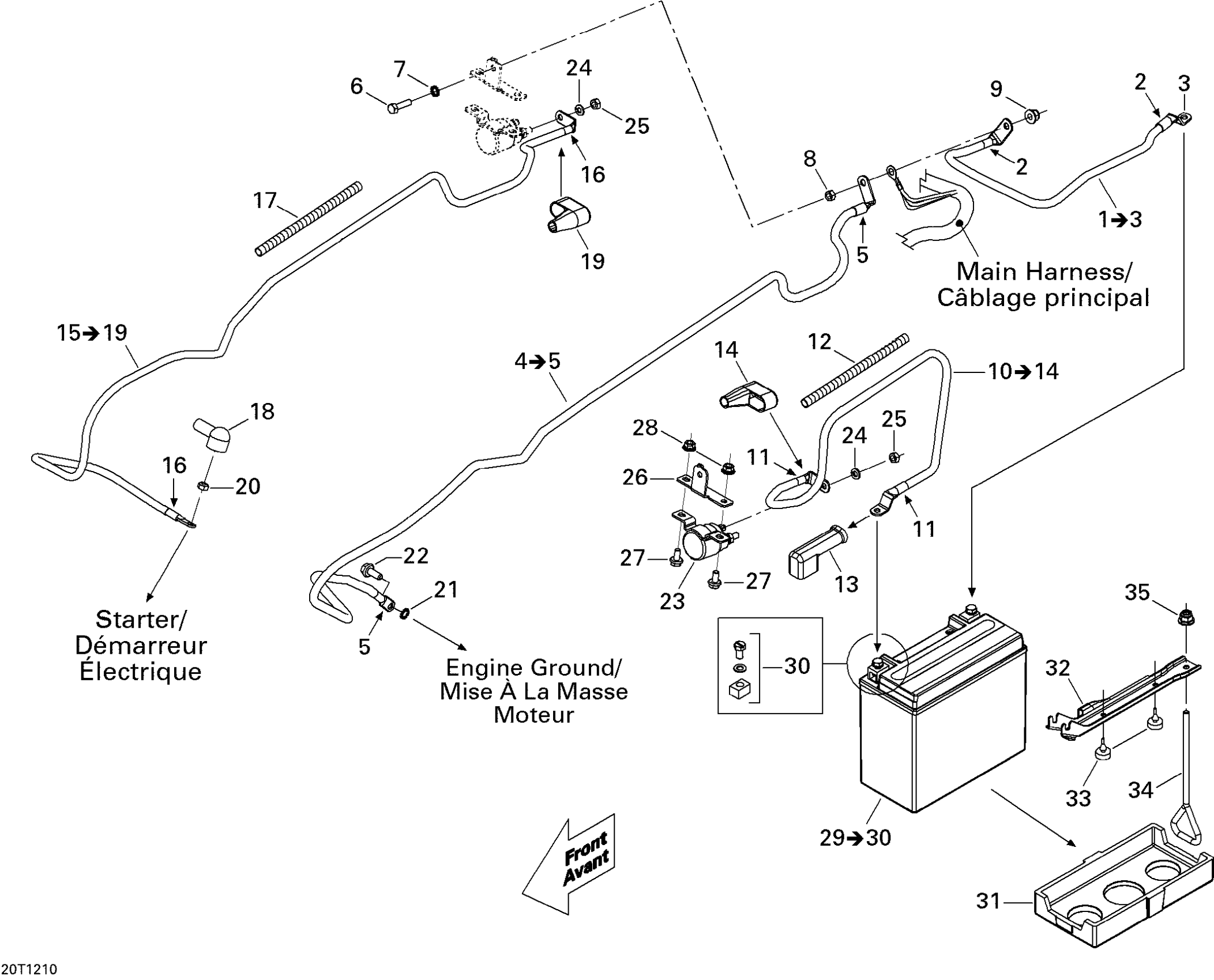

Can-Am Renagade 500EFI STD, 2012 10- Electrical System Diagram

#

Description
Price

1

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

Unavailable

2

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

3

Open Barrel | STD Models

710000518

Unavailable

4

GROUND CABLE ASS'Y - Call your local BRP dealership | Includes 5 to 8

710000831

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

6

Hex. Screw M6 X 25

207162544

Unavailable

7

External Serrated Lock Washer 6 mm

234461608

Unavailable

8

Hex. Nut M6

232061414

Unavailable

9

Hex. Flange Nut M6

233061414

Unavailable

10

Positive Cable Ass'y | STD, Includes 22 to 28

710001822

Unavailable

11

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

12

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

13

Protector Cap | STD Models

710001829

Unavailable

14

Protector Cap | STD

710001817

Unavailable

15

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 30 to 36

710001818

Unavailable

16

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

17

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

18

Protector Cap

710000526

Unavailable

19

Protector Cap | STD

710001817

Unavailable

20

Elastic Stop Nut M6

232561414

Unavailable

21

External Serrated Lock Washer 6 mm

234461608

Unavailable

22

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

23

Starter Relay

710007777

Unavailable

24

Lock Washer Helical M6

234161601

Unavailable

25

Hex. Nut M6

232061600

Unavailable

26

SOLENOID SUPPORT - Call your local BRP dealership

710001260

Unavailable

27

Hex. Flange Screw M6 X 12

207661244

Unavailable

28

Hex. Flange Nut M6

233061414

Unavailable

29

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

Unavailable

30

Battery Bolt Kit

250000282

Unavailable

31

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

32

FIXATION PLATE - Call your local BRP dealership

710001019

Unavailable

33

Rubber Stopper

708000759

Unavailable

34

Hook

710001107

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
